4-12 Setting Encoder Trigger [Encoder Trigger Setting]
4
4-12 Setting Encoder Trigger [Encoder
Trigger Setting]
1 In the Main Window, select [System setting] − [Other] − [Encoder trigger setting] from the [Tool]
menu.

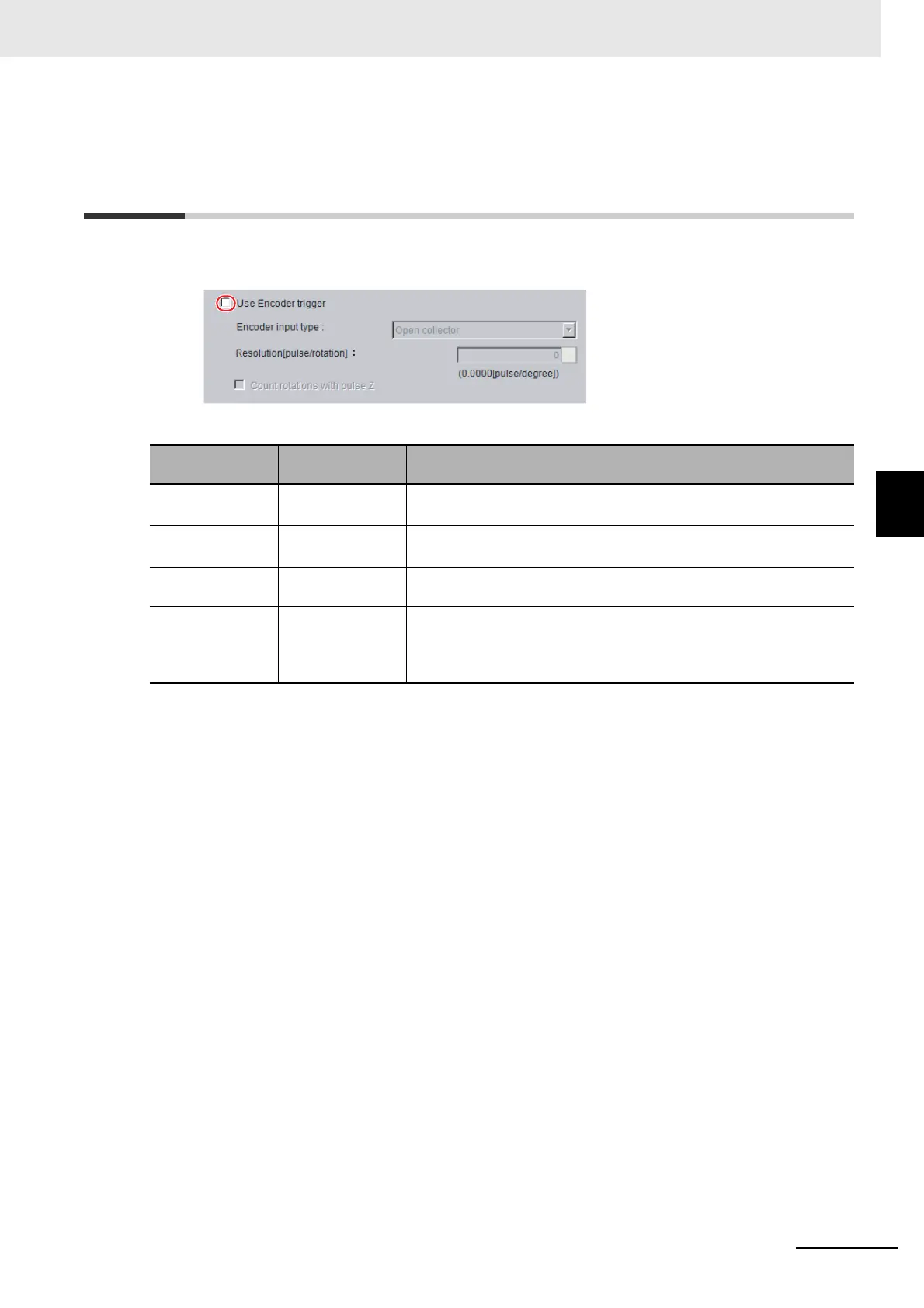

2 Set the target encoder.
Parameter
Set value
[Factory default]
Description
Use encoder trig-
ger
• Checked
• [Unchecked]
Set whether to use an encoder trigger.
Encoder input type • [Open collector]
• Line driver
Select the output format of the encoder to be connected.
Resolution [pulse/
rotation]
[1] to 65535 Set how many pulses equal one rotation. Set this parameter according
to the resolution of the encoder.
Count rotations
with pulse Z
• Checked
• [Unchecked]
When this is checked, pulse Z is used to determine whether a full rota-
tion is made. When this is unchecked, a full rotation is determined by
whether the number of pulses on phase A has reached the resolution
of phase A.
