6 - 27
6 Performing Measurement and Adjustment
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
6-4 Useful Functions for Operation
6

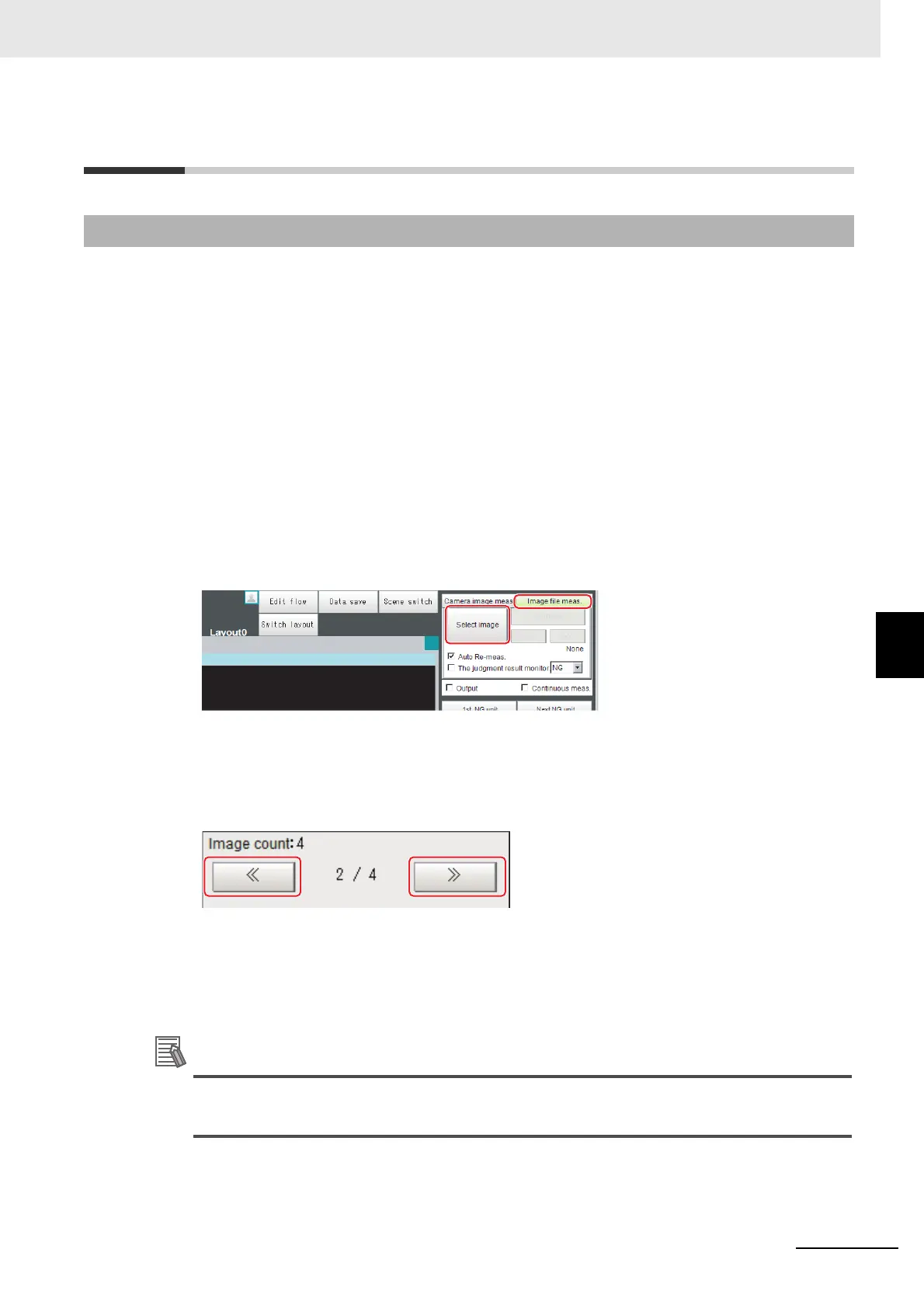

6-4-1 Remeasuring Saved Images [Remeasurement]
6-4 Useful Functions for Operation
Images at measurement including test measurement can be saved. Remeasurement can be performed
with saved images after conditions are adjusted in order to check whether the adjustment is appropri-
ate.
The logging function is used to save images.
Refer to 6-3-1 Logging Measurement Values and Measurement Images [Data Logging/Image Logging]
on page 6-8.
Images that can be remeasured include images saved in the Controller and images saved in external
storage.
1 Click the upper left corner of the Image Display Pane, set the [Image mode] to [Freeze], and
then click the [OK] button.
2 In the Main Window (layout 0), click the [Image file meas.] button in the Measurement Pane.
3 Click the [Select image] button.
The [FileExplorer] dialog box is displayed.
4 Select the file to display from the [FileExplorer] dialog box.
5 The selected image is displayed at the lower left of the [FileExplorer] dialog box.
When there are multiple camera images in a file, as for a logging image when multiple cameras
are connected, use the [<<] and [>>] buttons to switch images.
6 Click [OK].
The path and file name of the image are displayed under [Select image].
7 In the Main Window (layout 0), click the [Re-meas.] button under [Image file meas.] .
Measurement of the selected image is performed.
Additional Information
About Automatic Remeasurement
Displayed images can be automatically remeasured by selecting [Auto Re-meas.].
6-4-1 Remeasuring Saved Images [Remeasurement]
