6 Performing Measurement and Adjustment
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
6-8 Verifying Calibration Results [Calibration Support Tool]
6
6-8-1 Data Setting
6-8 Verifying Calibration Results [Cali-
bration Support Tool]
 Checking the Calibration Results

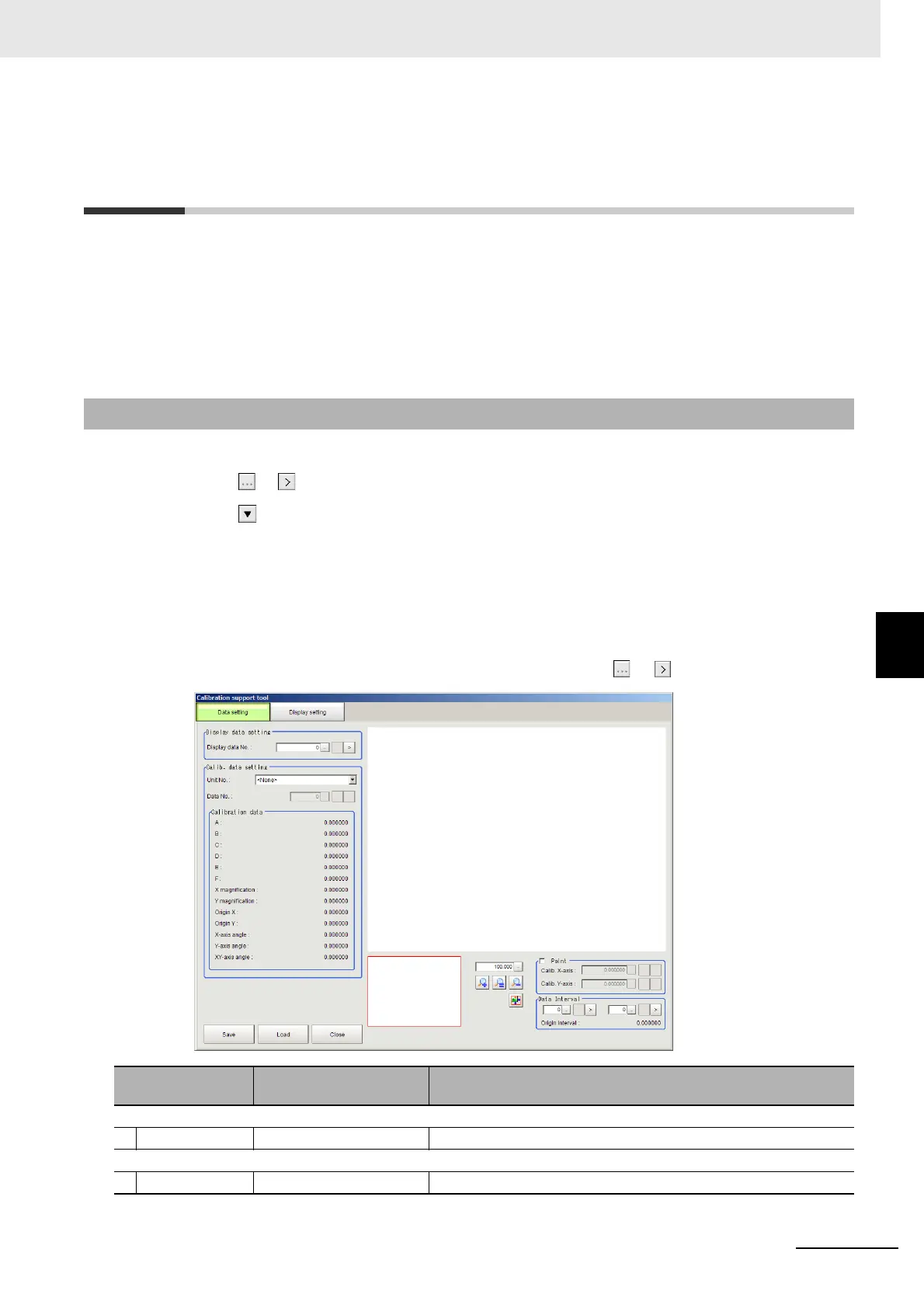

The Calibration Support Tool uses the calibration parameters to graphically display the relationship
of the positions that are represented by the Camera coordinates and the real coordinates. You can
compare the relationship of the displayed position with the real position of the equipment. This
allows you to easily check the validity of the calibration parameters. To start the Calibration Support
Tool, select [Tool] - [Calibration support tool].
Graphically display the position relationship between the camera coordinates and the real coordinates.
1 Click or to set the Display data No.
2 Click to select a processing unit number holding the calibration data.
The following processing units can be specified.
3 Sets Data No. for displaying calibration data by clicking or .
6-8-1 Data Setting
• Camera Image Input • Camera Image Input HDR
• Camera Image Input HDR Lite • Camera Image Input FH
• Vision master Calibration • PLC Master Calibration
• Calibration Data Reference • Precise Calibration
Setting item
Setting value
[Factory default]
Description
Display data setting
Display data No. 0 to 7 Sets a data number to display.
Calib. Data setting
Unit No. [None] Sets a processing unit number that holds the calibration data.
