8 - 25
8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-3 Arranging Windows [Layout Functions]
8
8-3-2 Setting the Behavior of Output Signals for Each Layout [Layout Settings]
 Saving the Layout in the Controller
After you end Layout Modification Mode, click the [Data save] button.
Restart the Sensor Controller to reflect the layout modifications that were saved.
 Saving the Layout as a file
Select [Save to File] from the [Function] menu. Under [Settings data], set the [Data to be saved] to
[System data] or [System + Scene group 0], specify the destination, and then click the [OK] button.
For each layout, you can set the behavior of output signals after the layout is changed.
1 Select [Layout setup] from the [Window] Menu for the main window for layout 0.

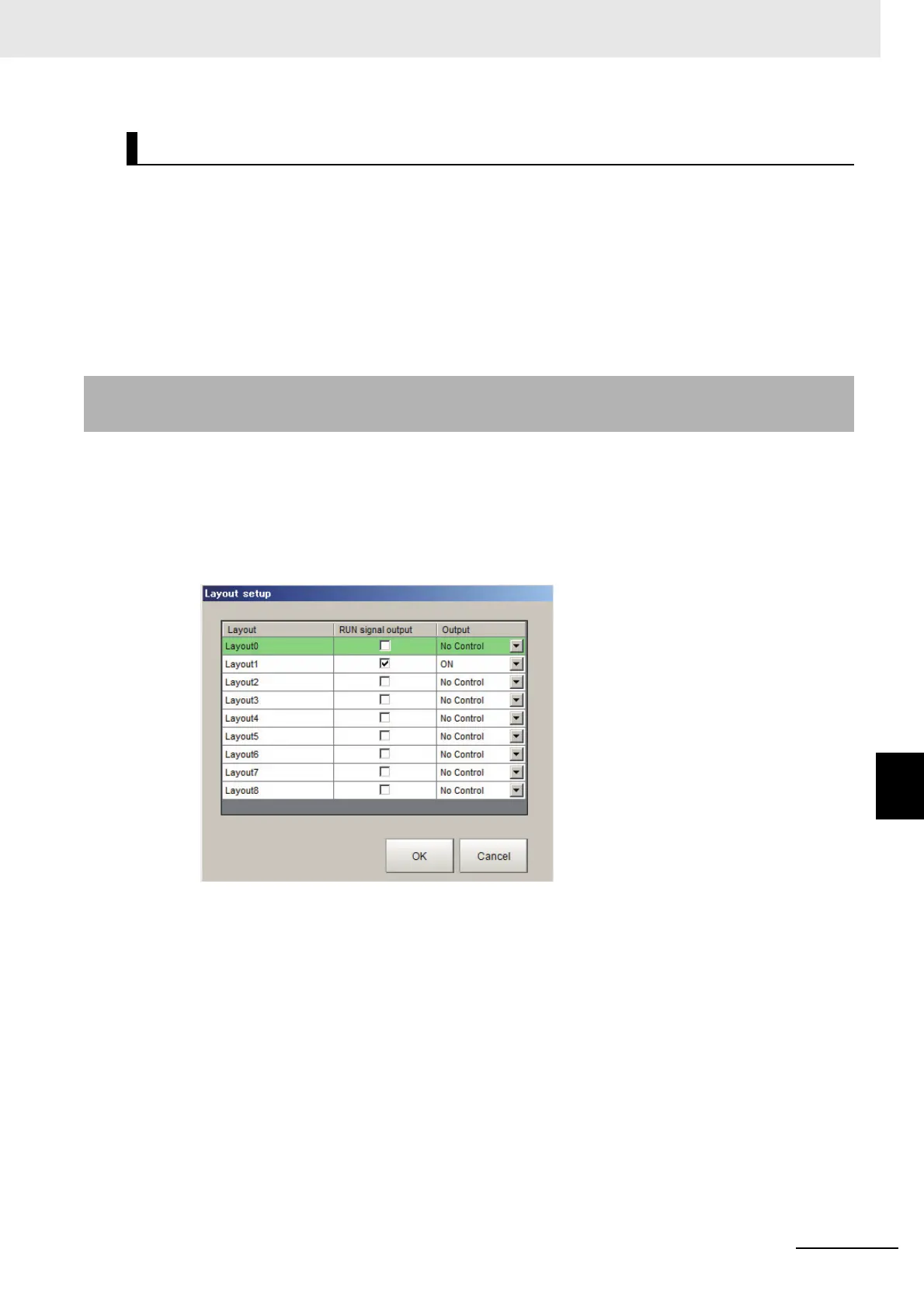

2 The following [Layout setup] dialog box is displayed.
Set the name for layouts 0 to 8, and whether to use the RUN signal output and external output
signals.
Saving the Layout in the Controller or a File
8-3-2 Setting the Behavior of Output Signals for Each Layout [Layout
Settings]
