The FTP is useful when you need to save logged image files to a computer.
Example
When you want to move the logged image to your personal computer before FH Sensor Controller's
RAMDisk or external storage is full:
Accessing to the FH Sensor Controller with FTP function, you can directly specify the file of RAMDisk or
external storage from a browser and can move the file.
 Operating Procedure
Use the following procedure to access the RAM disk in the FH series Sensor Controller.
1 Set up the computer and Controller for communications through Ethernet.
2 Start the Explorer on the computer.
3 In the address bar, type the IP address and destination and press the Enter Key.
Example: [ftp://10.5.5.100/RAMDisk/]
4 The contents of the RAM disk are displayed as shown below.
5 Drag and drop files as you would with normal file operations.
6-3-2 Saving Data to an External Device [FTP/Network Drive]
Saving Logged Image Files to a Computer [FTP]
Computer
RAMDisk
Ethernet
Image Files
Access through
FTP
Browser
(FTP client)
FH series Sensor
Controller
(FTP server)

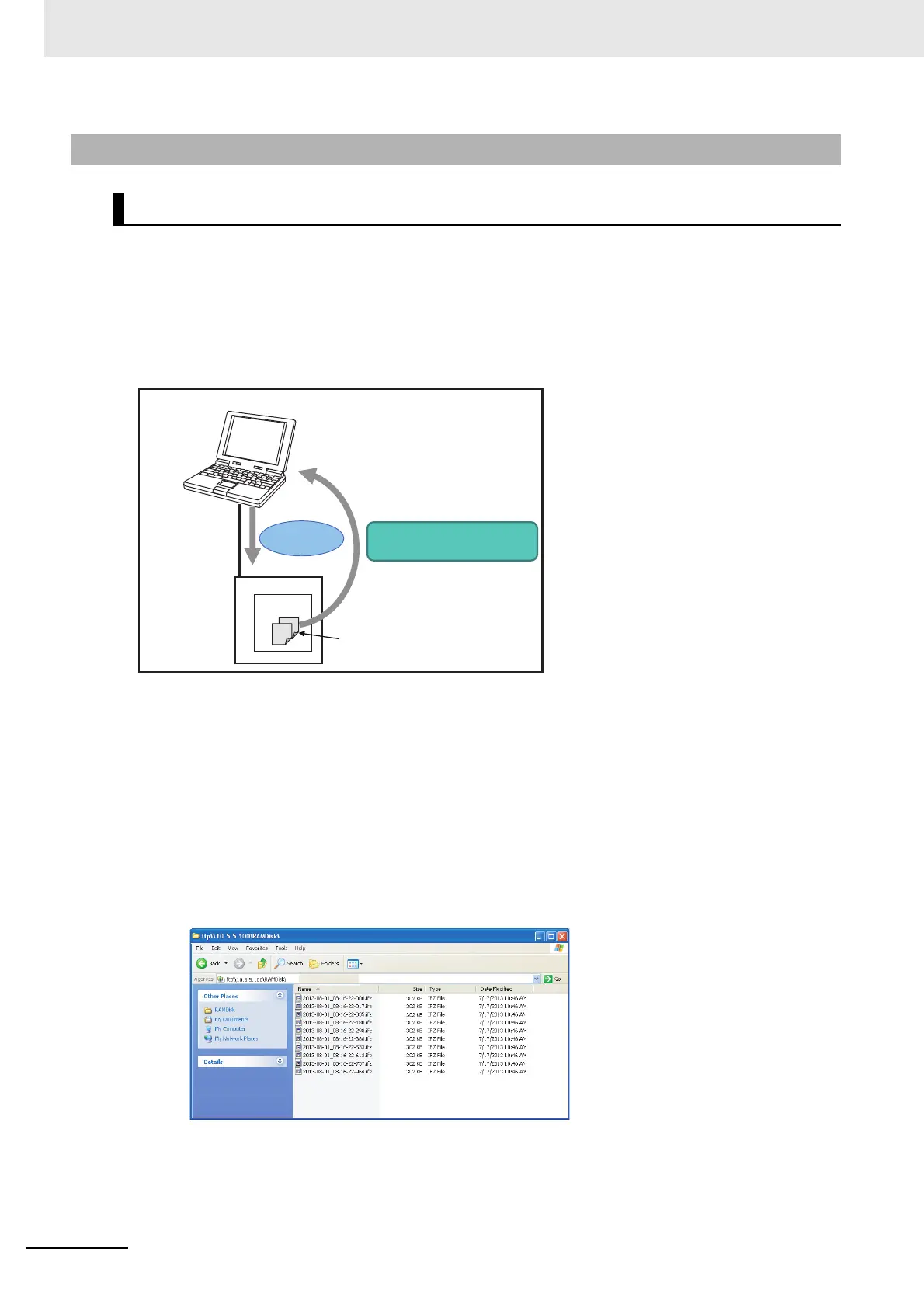

Moving image files to a computer
(and deleted from the RAM disk)
