6 - 45
6 Performing Measurement and Adjustment
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
6-7 Managing Images used for Model Registration and Reference [Registered Image Man-
ager]
6
6-7-3 Renaming Image Names
4 Click [Registration] to register the selected image.

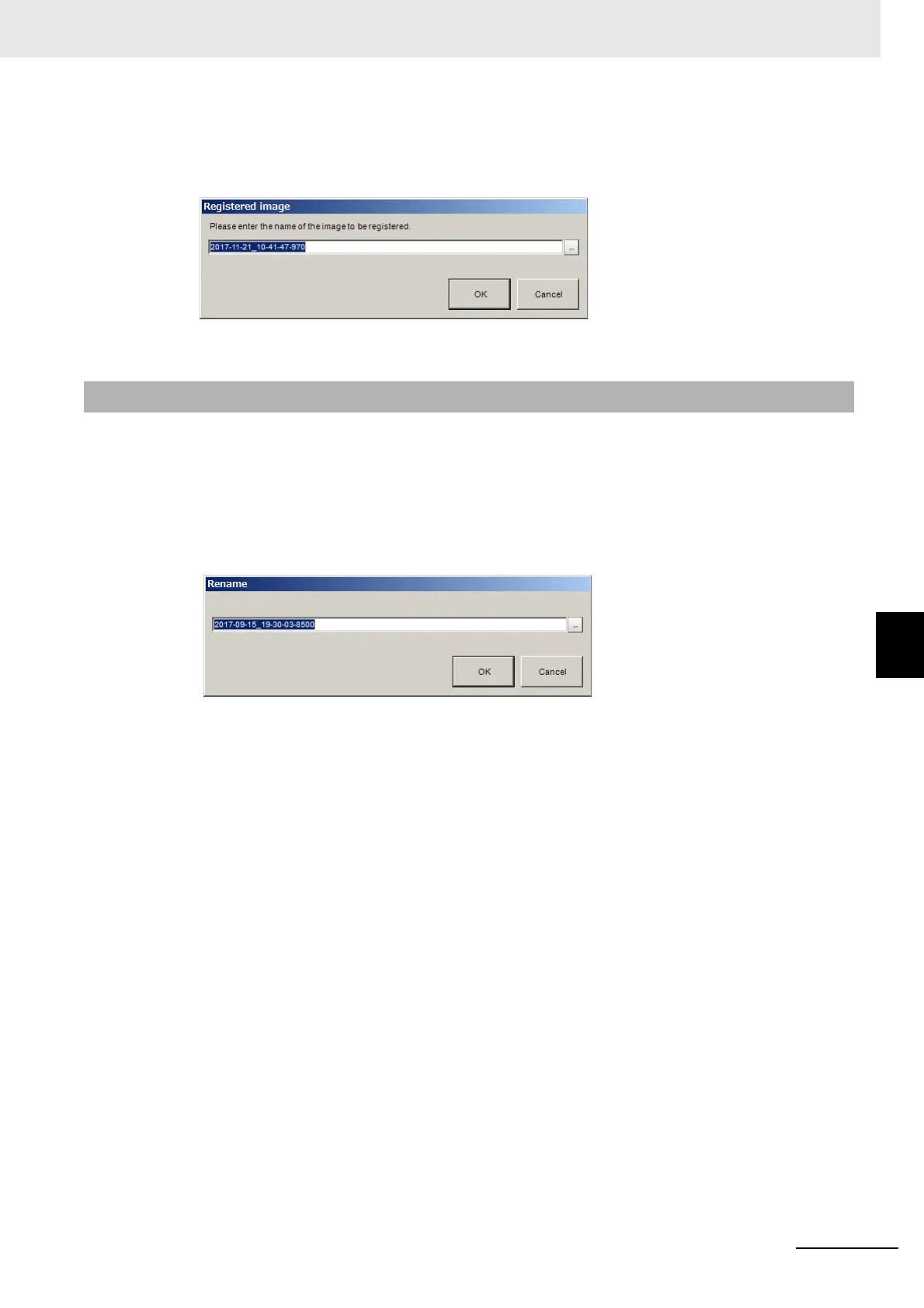

When clicking [Registration], the registered image name can be renamed in the “Registered
image” dialog.
5 Click [OK].
Rename registered image names.
1 Click [Tool] -> [Registered Image Manager].
“Registered image” window is displayed.
2 Select the image to change the name and click [Rename].
“Rename” dialog box is displayed
3 Click [OK].
The image name is renamed.
6-7-3 Renaming Image Names
