6-7 Managing Images used for Model
Registration and Reference [Regis-
tered Image Manager]
You can save images used for model registration and reference registration as registration images and
can reference them later and use them for re-registration and adjustment of reference positions.
You can register the [Latest logging image], [Logging image], and [Image file].
By the following operation, the registered images can be managed.
• Click [TDM Editor] on the [Tool] in the Main window. The “Edit flow window” is displayed.
Click [Registered image] on [Editing] in the menu bar. The “Registered image” window is dis-
played.
• When using this function, an external storage device such as USB memory stick or USB
HDD that can be connected via USB slot is required.
• The registered image is saved in the external storage.
• Do not change the configuration of files in the external storage. Changing it would make it
impossible to read the files.
• Image files in the JPG (JFZ) format cannot be registered / loaded.
Specify an external storage device and folder to save registered images.
1 Insert an external storage such as a USB memory stick into the sensor controller.
When specifying a network drive as the destination to save, set the network drive beforehand.
For details, refer to 4-13 Setting Network Drive [Network Drive Setting] on page 4-53.
2 In the Main window, select and click [Tool] → [Registered Image Manager].

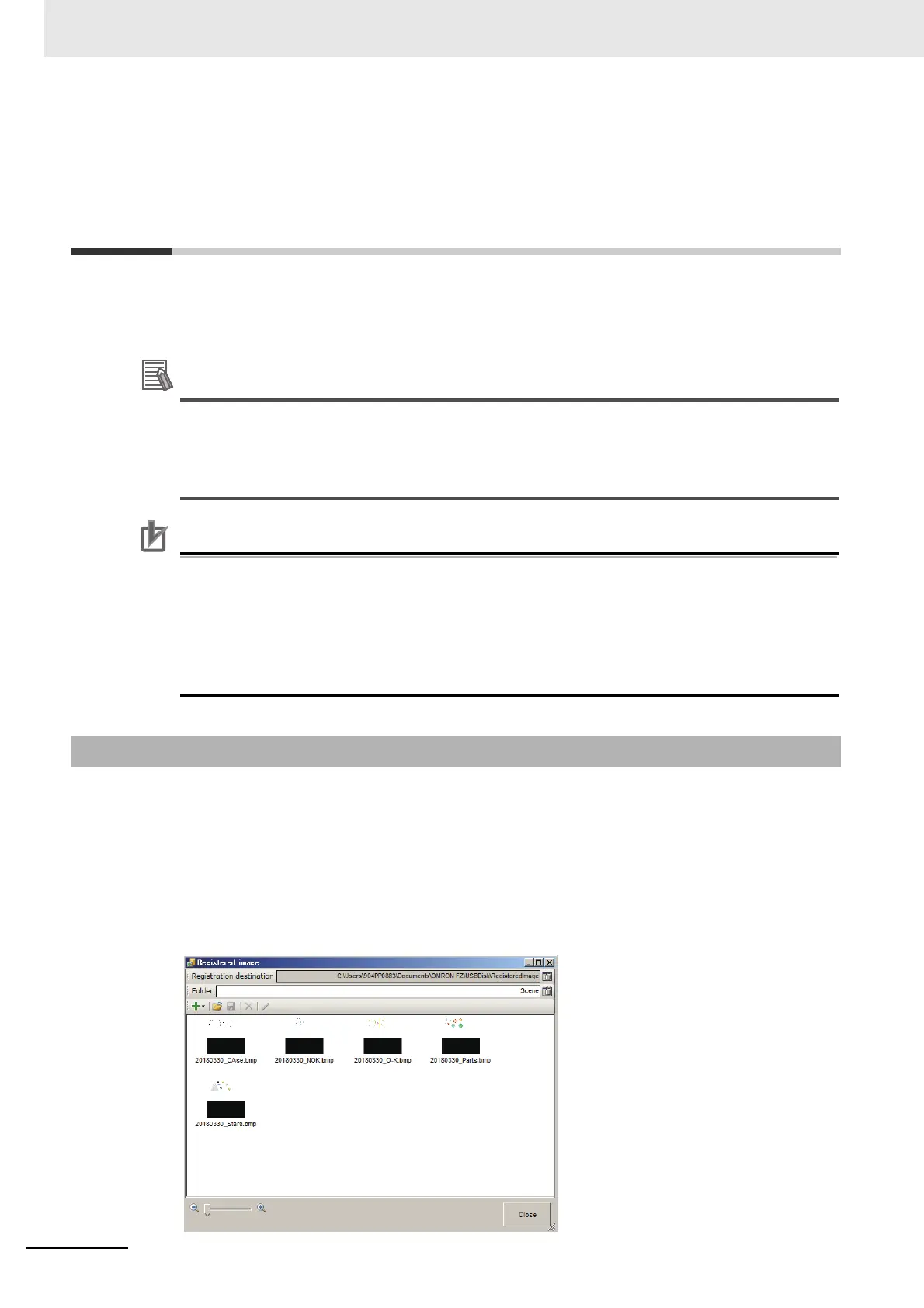

"Registered image" dialog box is displayed.
6-7-1 Specifying the Destination to Save
