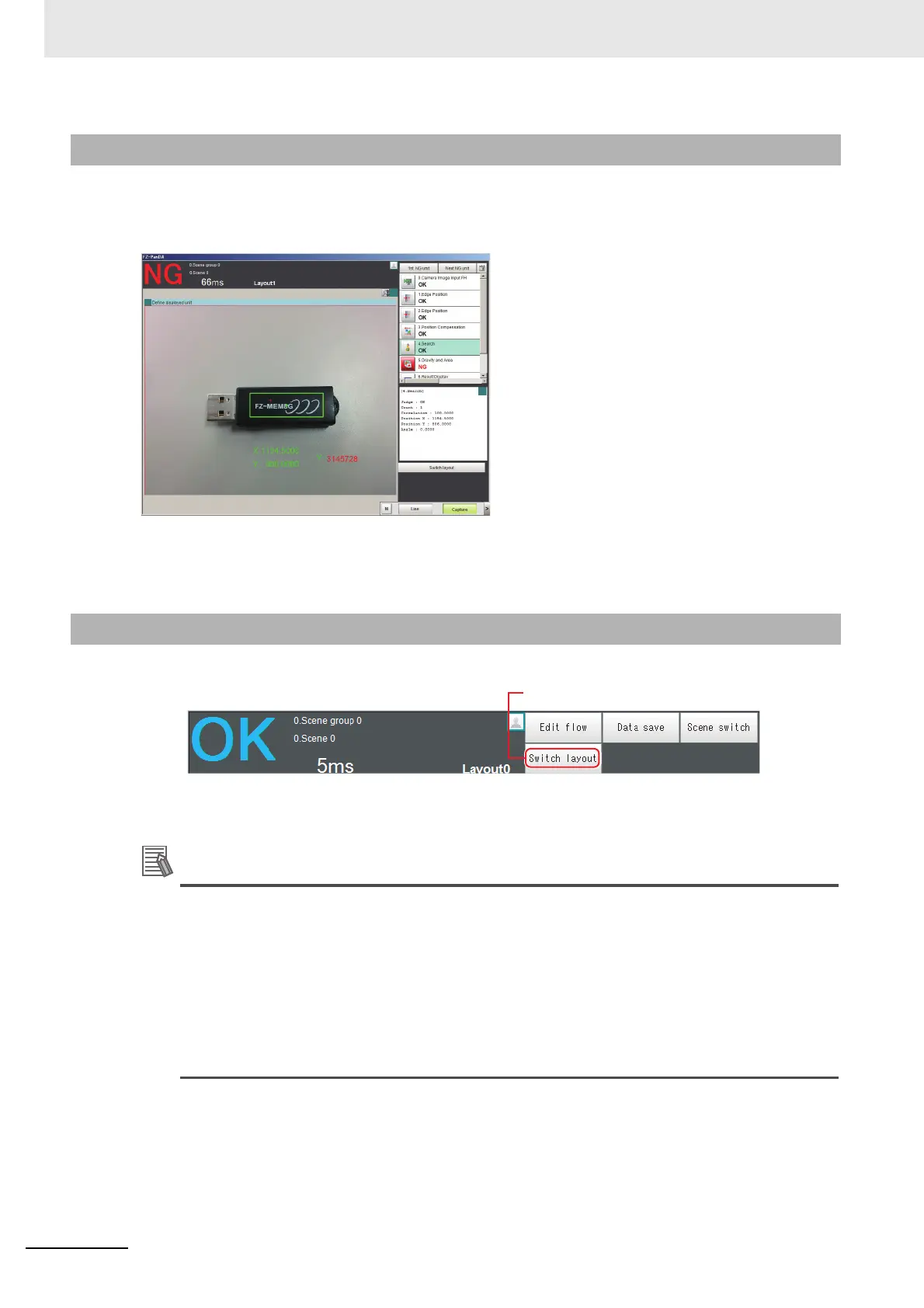

8 Setting Windows
8 - 12
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
Layout 1 is set as a run window by default. (This can be changed in Layout Modification Mode.)
The flow, detailed results, and tool box are displayed in the Control Area.
When processing takes a long time, it is necessary to check the processing items and setting values.
The time required for measurement is also displayed with the measurement results, so use this for ref-
erence.
1 In the Main Window (layout 0), click the [Switch layout] button.
2 In the [Switch layout] dialog box, select the layout number (layout 1 by default).
The display changes to the Main Window (layout 1).
Additional Information
• You can make settings so that the run window is displayed whenever the power supply to the
Controller is turned ON.
Refer to 4-2 Setting the Status at Startup [Startup Settings] on page 4-3.
• The lighting gradually gets darker if it is used for a long time, so adjust judgement conditions
periodically.
• Without stopping the measurement, you can change judgement conditions for a processing
unit set for a scene.
Refer to 6-5-4 Changing Judgement Conditions without Stopping Measurement [Simplified
Non-stop Adjustment] on page 6-35.
8-2-2 Main Window (Layout 1): Run Window (Default)
8-2-3 Main Window (Layout 1): Switching to the Run Window
[Switch layout] button
