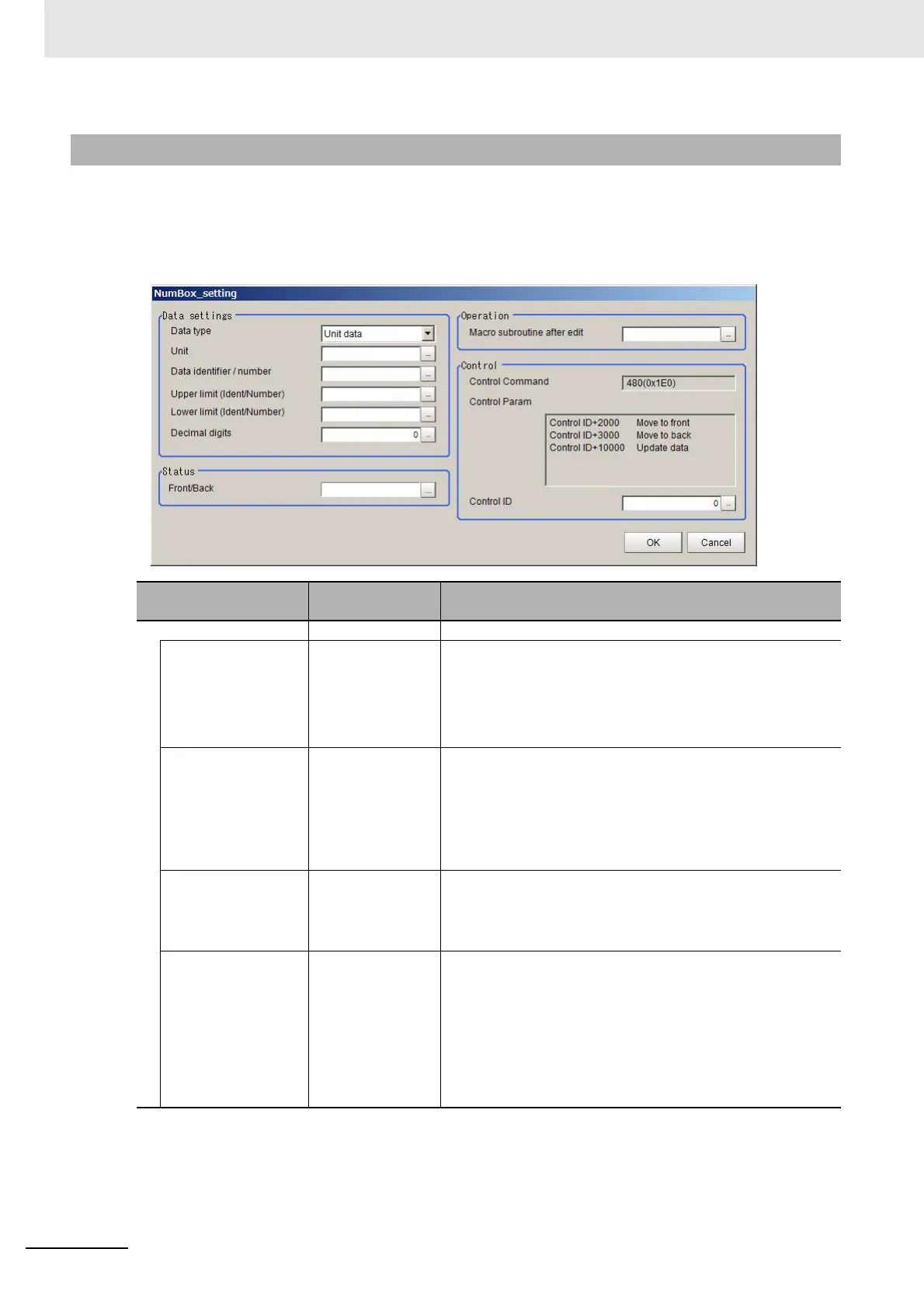

Window part to processing item parameters and macro variable numerical values.
This comprises the following elements.
• [Numerical value input box]
Details that can be set are as follows.
8-3-22 Value Input Window (MDI_NumBox.dll)
Setting item
Setting value
[Factory default]
Description
Data settings Configure settings for numerical input data.
Data type • [Unit data]
• Scene variable
• Global data
• System data
• System variable
Selects the data type to input numerical value.
Unit [Blank] This item is available when [Unit data] is selected in [Data
type].
Sets the unit to set the numerical value input data using a unit
number or unit label character string using up to 32 characters.
Only single-byte alphanumeric characters as well as ”_&#$@”
can be input.
Data identifier 0 • PandDA
• Macro IO
This item is available when [System data] is selected in [Data
type].
Selects the identifier name 0 of the system data from the
combo box.
Data identifier/num-
ber/variable
[Blank] Sets the identifier name of data to input numerical value using
up to 32 characters.
The setting contents vary depending on [Data type].
Unit data: External reference data
number or identifier name
Scene variable or System variable: Variable name
System data or Global data: Identifier name
