Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
A-12 Sharing Data Within the Controller [User Data Tool]
A
A-12-1 Setting Procedure for User Data
A-12 Sharing Data Within the Controller
[User Data Tool]
This tool is used to share data within the Controller.
This function can not be used with the FHV series.
The data set as user data is shared between scenes or scene groups. Data sharing across lines is not
allowed in Multi-line Random Trigger Mode. The data variables that are created are stored in the user
data region on the Controller.
Use the User Data Tool to edit data, specify initial values, and enter data comments.
Use the User Data processing item to set or reference the values in the data that you set with the User
Data Tool.
Refer to User Data in the Vision System FH/FHV/FZ5 Series Processing Item Function Reference Man-
ual (Cat. No. Z341).
Additional Information
When creating a measurement flow newly, use System variables.
For details, refer to 5-5-3 Editing Scenes on page 5-34.
1 To set user data, select [User data tool] from the [Tool] menu in the Main Window.
The [User data tool] dialog box is displayed.
A-12-1 Setting Procedure for User Data

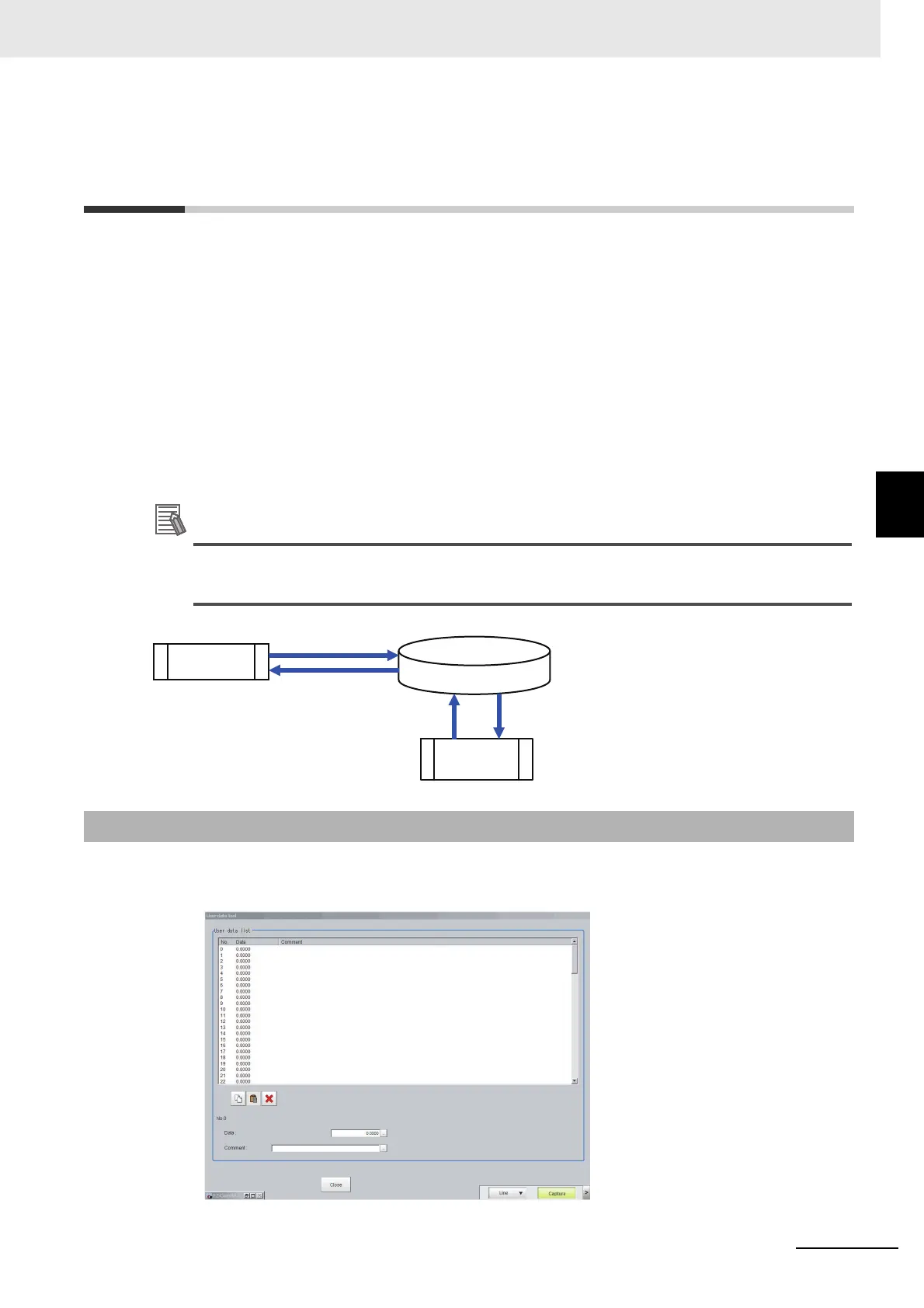

User Data Area
User Data
Tool
Processing item
User data
Edits applied.
Tool Tool
Setting data
Referencing data
Data edited.
