2 Features
2 - 2
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
2-1 Basic Mechanism for Measurements
An FH/FHV/FZ5-series Sensor Controller uses pre-built packages that contain all the processing tasks
(for image input, measurement processing, displays, outputs, etc.) that are required for vision inspec-
tions.
You arrange these packaged processes in order of execution of the vision inspection.
An FH/FHV/FZ5-series Controller executes vision inspections according to user-created flows.
Additional Information
In the FH/FHV/FZ5, a flow that contains packaged processes that are arranged in order of execu-
tion of processing items and image processing is called a measurement flow.
Processing items and measurement flows can have more than one setting. You can switch the
setting based on the scene to inspect. (Refer to Section 5 Creating Measurement Scenes)

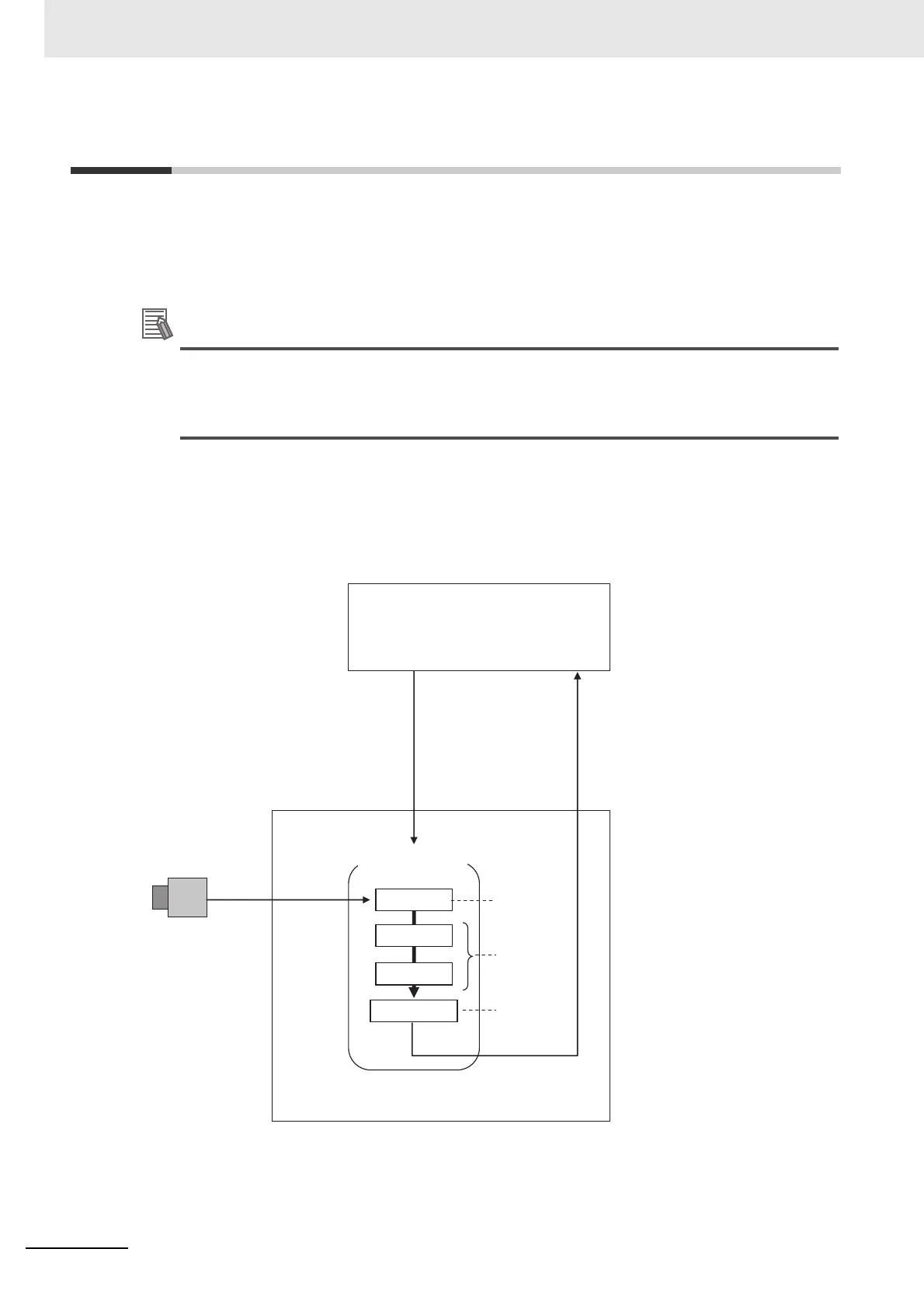

 Concept of Measurement Processing
When the FH/FHV/FZ5 receives a measurement trigger from the PLC or other external device, the
image input from a Camera, measurement processing, and output of measurement results (e.g.,
OK/NG judgement results) are executed in the order that those processing items are registered in
the measurement flow.
• In the measurement flow, you can change the processing to execute based on the inspection results
or input conditions of the vision inspection.
• You can use macro processing to execute pre-packaged processing items and functions in the FH/
FHV/FZ5 to create original programs. This allows you to create original measurement processes, dis-
PLC or other external device
Image Input
Defect
Search
Measurement flow
FH/FZ5
Output Unit
Camera
Measurement
trigger
The measurement flow is executed basically in
order of the unit numbers.
Measurement
results are
output.
Measurement
processing of
the input image
Image input
from the
Camera
• Judgement
result
• Measured
values
