Appendices
A - 10
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
A-5 Measurement Mechanism
This section describes how to configure measurement in accordance with the images acquired from
cameras.
This product is prepared with comprehensive processing capabilities for measuring items. Common
processes for various processing items are described here.
The images acquired from cameras are available with color information such as
R(red)/G(green)/B(blue). RGB images can render 16.7 million colors on the screen, and adjustment of
color intensity with a range of 0 to 255 can be performed.
For each of RGB, black is rendered with a 0 value and white is rendered with a 255 value.
During measurement of color images, many colors can be measured by adjusting the values for RGB.
Additional Information
For monochrome cameras, color processing is not performed.

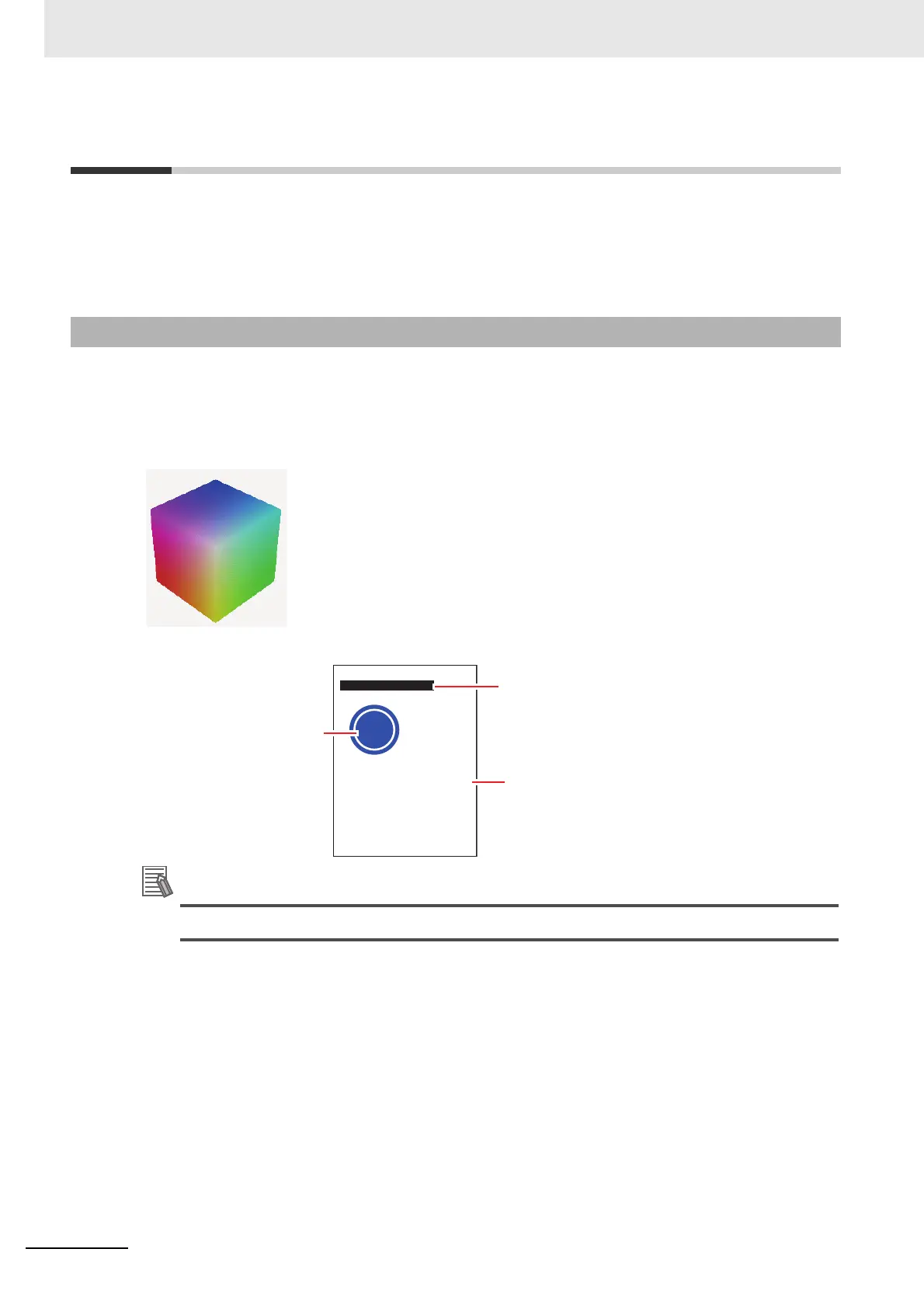

A-5-1 Color Processing Mechanism
R
G
B
SAMPLE
When measuring the black part
R: 0
G: 0
B: 0
When measuring the blue part
R: 0
G: 0
B: 255
When measuring the red part
R: 255
G: 0
B: 0
