6 Performing Measurement and Adjustment
6 - 30
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

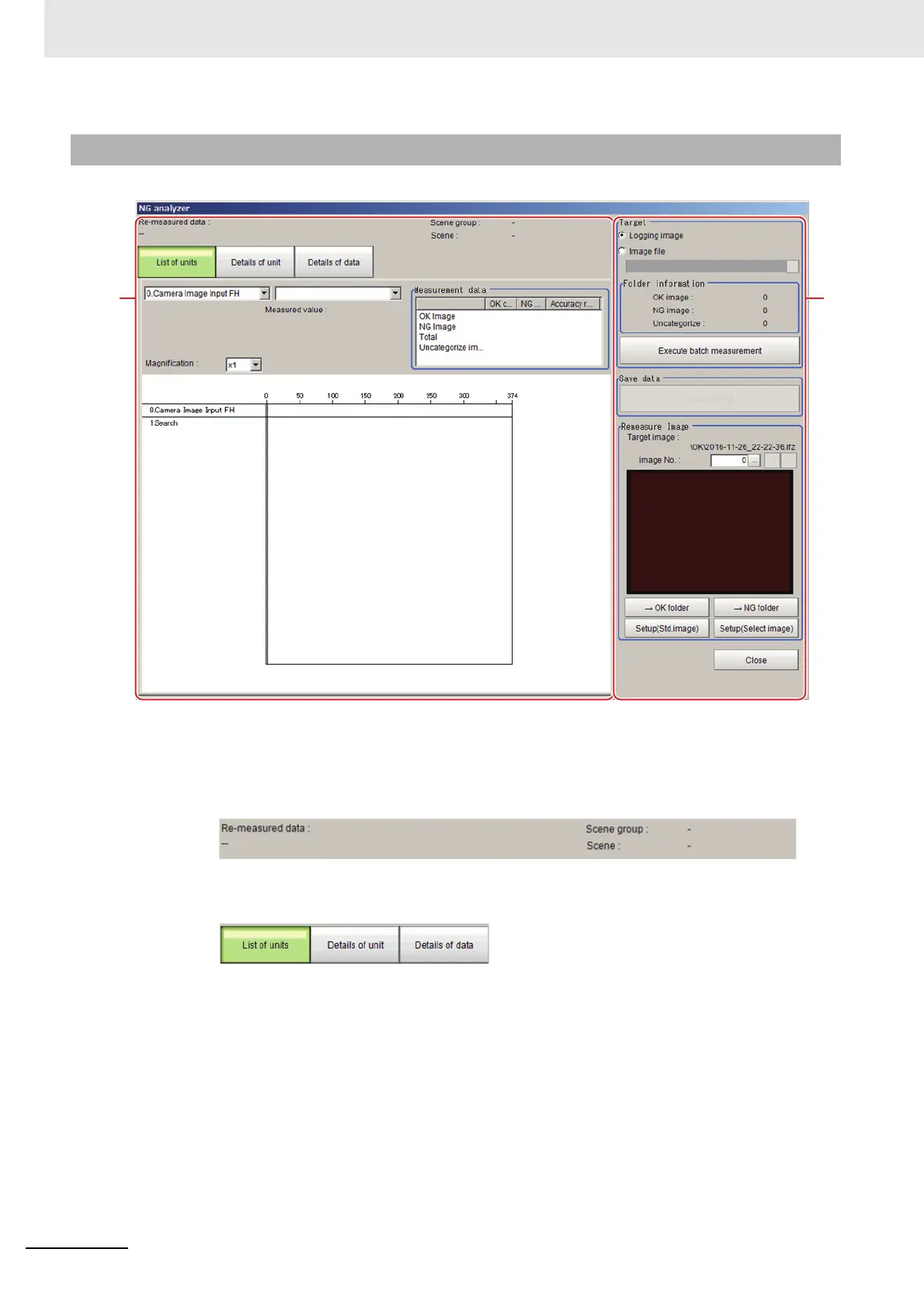

a) Analysis result display area
(1) Folder name/scene information to re-measure
Displays folder name, scene group number, and scene number for items for batch re-mea-
surement.
(2) Result display tab
Switches among three levels of details to display in the results display area.
• List of units
A list of units currently set is shown together with analysis results.
• Details of unit
Detailed analysis results of each unit are shown.
• Details of data
Detailed results of analysis data are shown.
6-5-1 Layout of NG Analyzer Window
a
b
