The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure.
Port
Select the port number to use for this configuration.
MAC Address
Enter the MAC address to use for this configuration.
IP Address
Enter the IP address the use for this configuration.
Click the Find by Port button to locate a specific entry based on the port number selected.
Click the Find by MAC button to locate a specific entry based on the MAC address entered.
Click the Find by IP Address button to locate a specific entry based on the IP address entered.
Click the View All Entries button to display all the existing entries.
Click the Add to IP MAC Port Binding Table to add the specific entry to the IMPB Entry Settings window.
L2 Multicast Control
IGMP Proxy
Based on IGMP forwarding, the IGMP proxy runs the host part of IGMP on the upstream and router part of IGMP
on the downstream, and replicates multicast traffic across VLANs on devices such as the edge boxes. It reduces
the number of the IGMP control packets transmitted to the core network.
IGMP Proxy Settings
This window is used to configure the IGMP proxy state and IGMP proxy upstream interface in this page.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Proxy > IGMP Proxy Settings,
as show below:

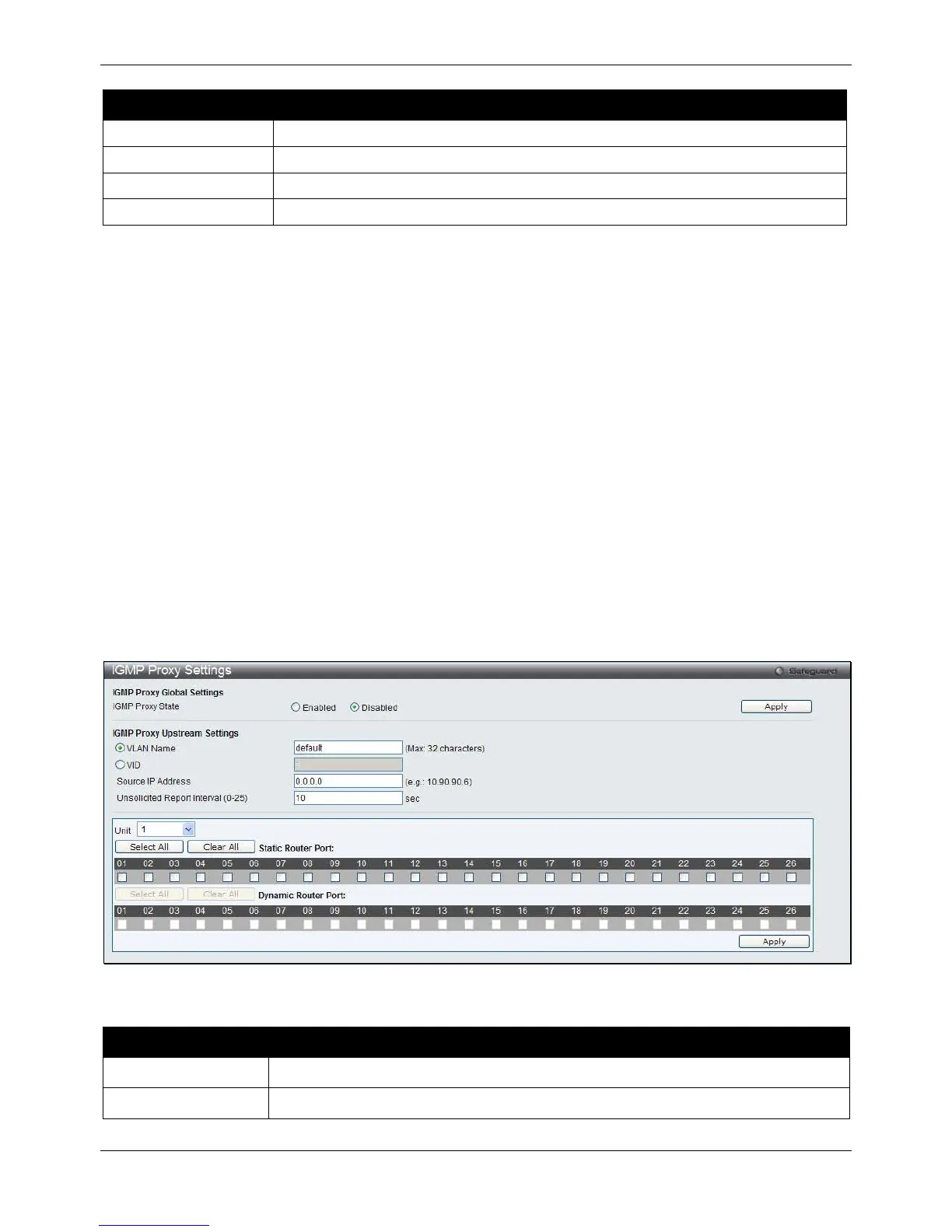

Figure 4-50 IGMP Proxy Settings window
The fields that can be configured are described below:
Parameter Description
IGMP Proxy State
Use the radio buttons to enable or disable the IGMP Proxy Global State.
VLAN Name
Click the radio button and enter the VLAN name for the interface.
