xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
117

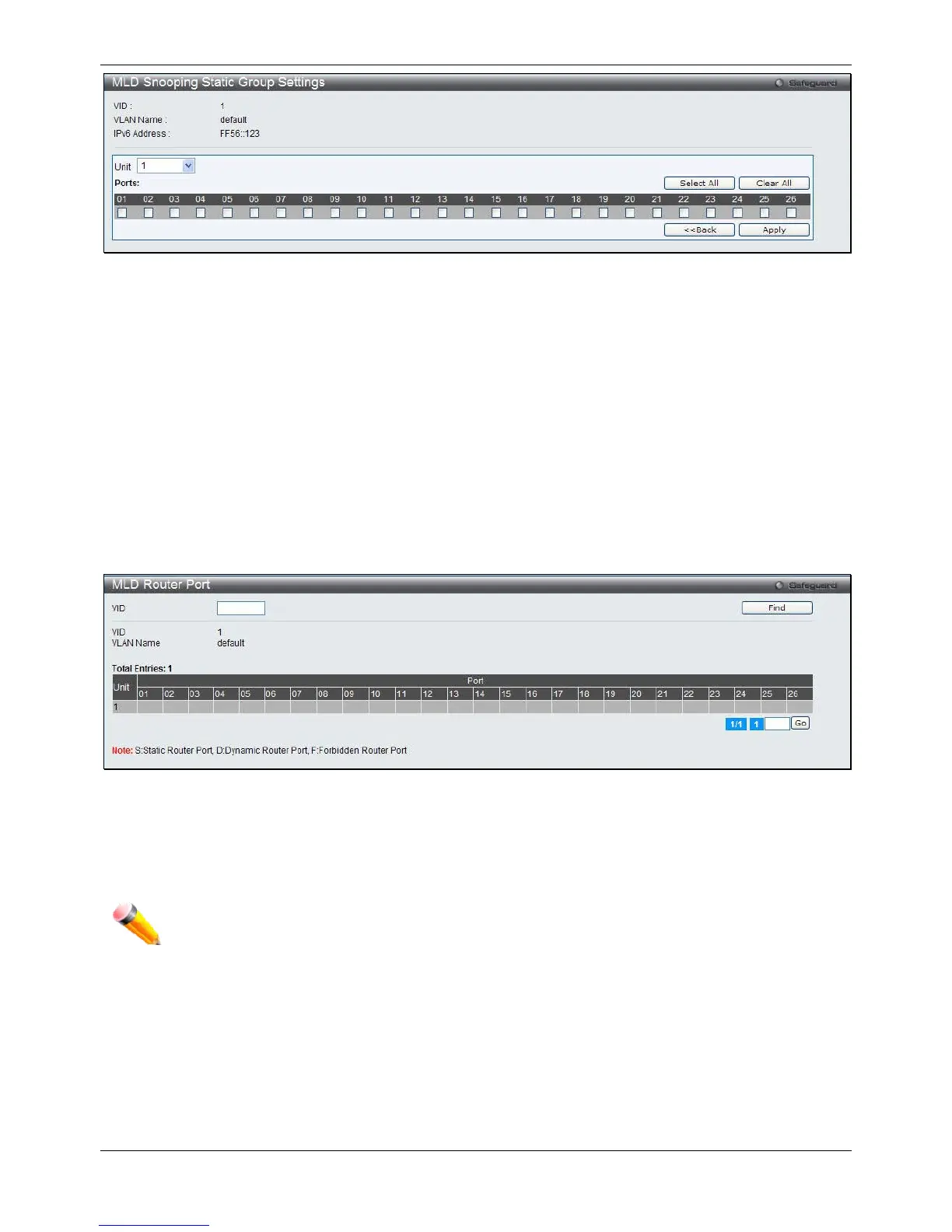

Figure 4-74 MLD Snooping Static Group Settings – Edit window
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
MLD Router Port
Users can display which of the Switch’s ports are currently configured as router ports in IPv6. A router port
configured by a user (using the console or Web-based management interfaces) is displayed as a static router port,
designated by S. A router port that is dynamically configured by the Switch is designated by D, while a Forbidden
port is designated by F.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Router Port, as
show below:
Figure 4-75 MLD Router Port window
Enter a VID (VLAN ID) in the field at the top of the window.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
NOTE: The abbreviations used on this page are Static Router Port (S), Dynamic Router Port (D)
and Forbidden Router Port (F).
MLD Snooping Group
Users can view MLD Snooping Groups present on the Switch. MLD Snooping is an IPv6 function comparable to
IGMP Snooping for IPv4.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping
Group, as show below:
