xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
214
Join/Prune Interval
(1-18724)
This field will set the interval time between the sending of Join/Prune packets stating
which multicast groups are to join the PIM enabled network and which are to be
removed or “pruned” from that group. The user may state an interval time between 1
and 18724 seconds with a default interval time of 60 seconds.
DR Priority
(0-4294967294)
Enter the priority of this IP interface to become the Designated Router for the multiple
access network. The user may enter a DR priority between 0 and 4,294,967,294 with
a default setting of 1.
Mode
Use the drop-down menu to select the type of PIM protocol to use, Sparse Mode
(SM), Dense Mode (DM), or Sparse-Dense Mode (SM-DM). The default setting is
DM.
State
Use the drop-down menu to enable or disable PIM for this IP interface. The default is
Disabled.
Click the <<Back button to return to the previous window.
Click the Apply button to accept the changes made.
PIM Candidate BSR Settings
The following windows are used to configure the Candidate Boot Strap Router settings for the switch and the
priority of the selected IP interface to become the Boot Strap Router (BSR) for the PIM enabled network. The Boot
Strap Router holds the information which determines which router on the network is to be elected as the RP for the
multicast group and then to gather and distribute RP information to other PIM-SM enabled routers.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Candidate BSR Settings, as shown below:

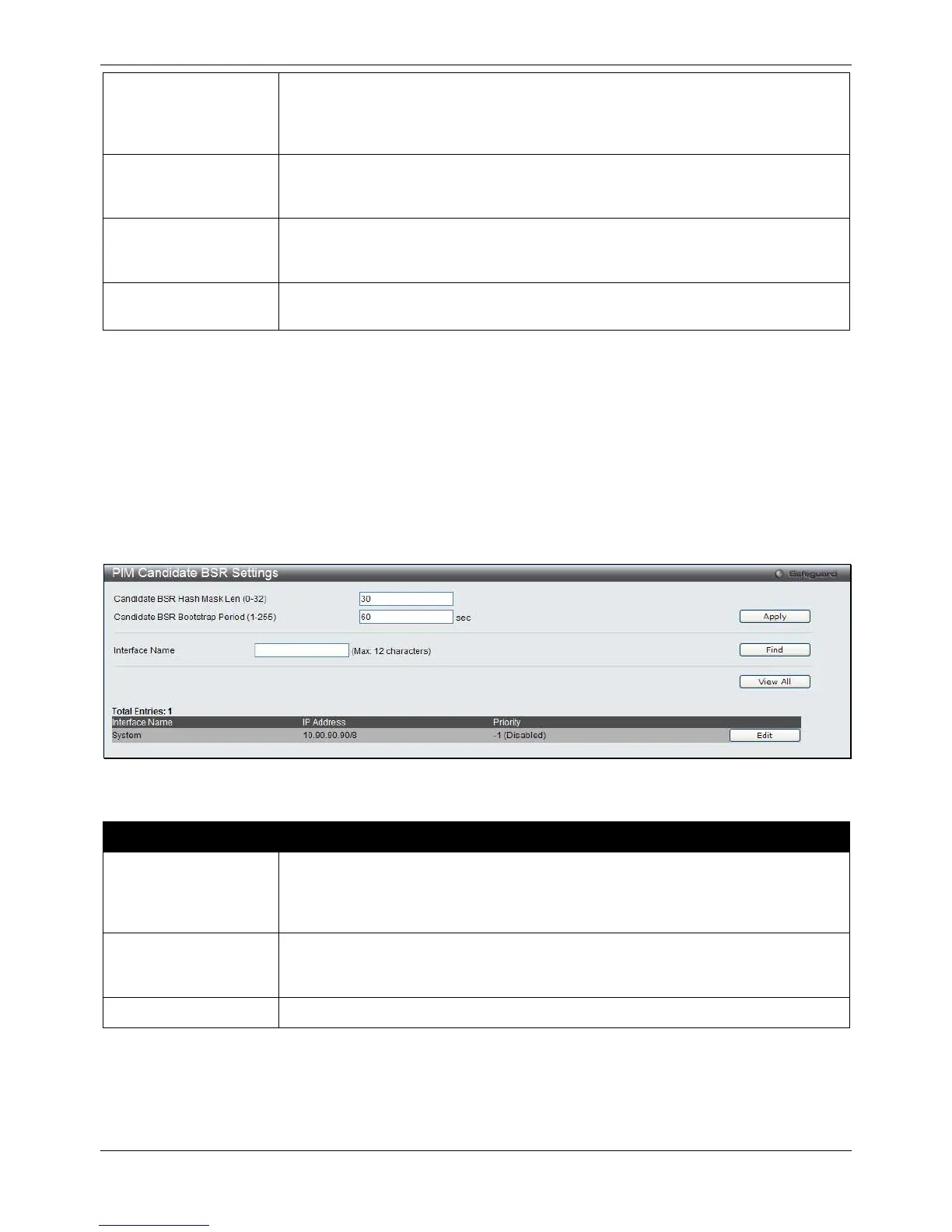

Figure 5-83 PIM Candidate BSR Settings
The fields that can be configured are described below:
Parameter Description
Candidate BSR Hash
Mask Len (0-32)
Enter a hash mask length, which will be used with the IP address of the candidate RP
and the multicast group address, to calculate the hash algorithm used by the router to
determine which C-RP on the PIM-SM enabled network will be the RP. The user may
select a length between 0 and 32 with a default setting of 30.
Candidate BSR
Bootstrap Period
(1-255)
Enter a time period between 1 and 255 to determine the interval the Switch will send
out Boot Strap Messages (BSM) to the PIM enabled network. The default setting is
60 seconds.
Interface name
Enter the interface name.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to view all the interfaces configured on this switch.
Click the Edit button to configure the specific BSR priority.
