xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
284
previously configured in the Time Range Settings window. This will set specific times
when this access rule will be implemented on the Switch.
Counter
Here the user can select the counter. By checking the counter, the administrator can
see how many times that the rule was hit.
Ports
When a range of ports is to be configured, the Auto Assign check box MUST be
ticked in the Access ID field of this window. If not, the user will be presented with an
error message and the access rule will not be configured. Ticking the All Ports check
box will denote all ports on the Switch.
Specify the VLAN name to apply to the access rule.
Specify the VLAN ID to apply to the access rule.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Apply button to accept the changes made.
After clicking the Show Details button in the Access Rule List, the following page will appear:

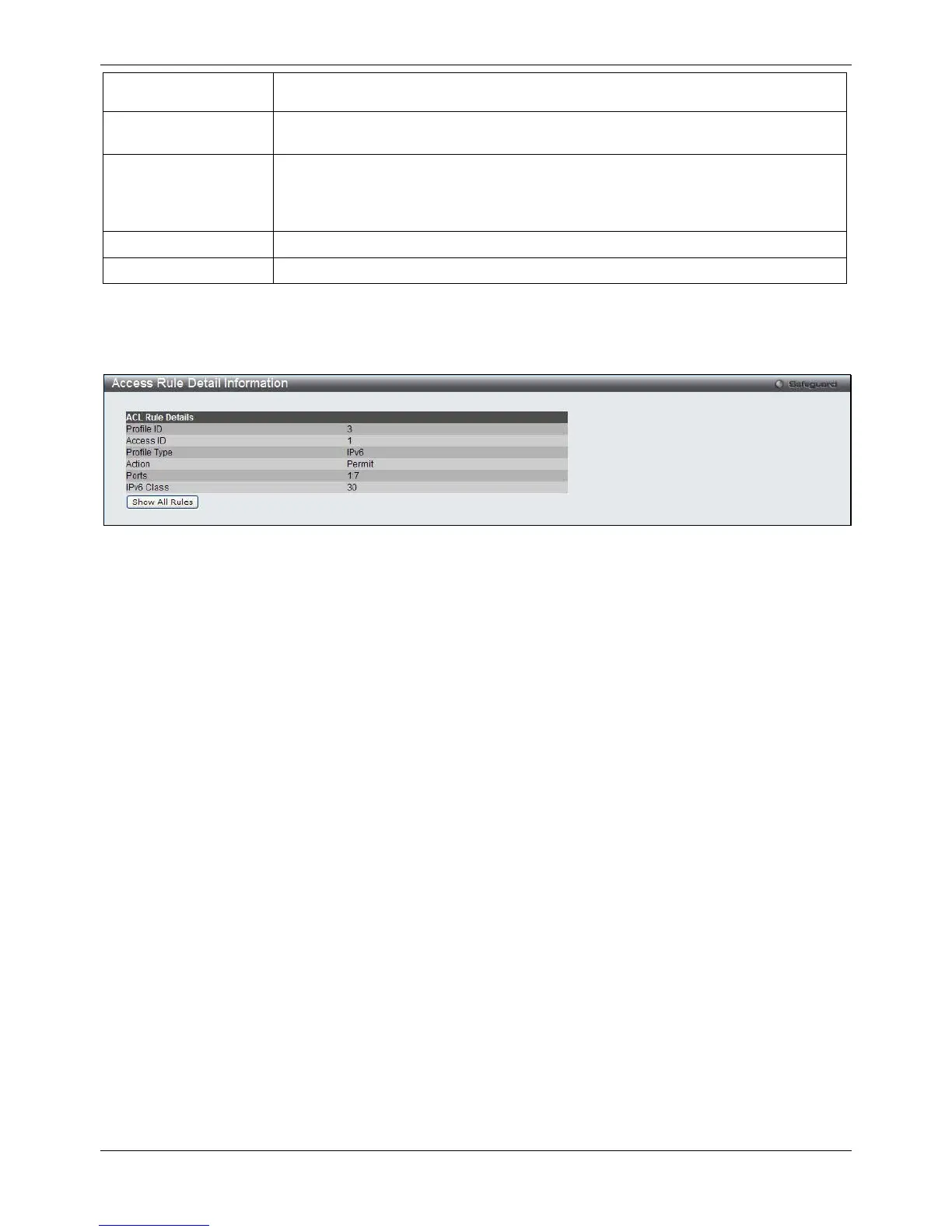

Figure 7-17 Access Rule Detail Information (IPv6 ACL)
Click the Show All Rules button to navigate back to the Access Rule List.
Adding a Packet Content ACL Profile
The window shown below is the Add ACL Profile window for Packet Content: To use specific filtering masks in this
ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add ACL Profile button, the following page will appear:
