D-Link DGS-3620-28PC-SI User Manual

xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
420
MA Index
Select and enter the Maintenance Association index used.
MAC Address
Enter the destination MAC address used here.
LBMs Number (1-
65535)
Number of LBMs to be sent. The default value is 4.
LBM Payload
Length (1-1500)
The payload length of LBM to be sent. The default is 0.
LBM Payload
Pattern
An arbitrary amount of data to be included in a Data TLV, along with an indication
whether the Data TLV is to be included.
LBMs Priority
The 802.1p priority to be set in the transmitted LBMs. If not specified, it uses the same
priority as CCMs and LTMs sent by the MA.
Click the Apply button to accept the changes made.
CFM Linktrace Settings
This window is used to configure the CFM linktrace settings.
To view this window, click OAM > CFM > CFM Linktrace Settings, as shown below:

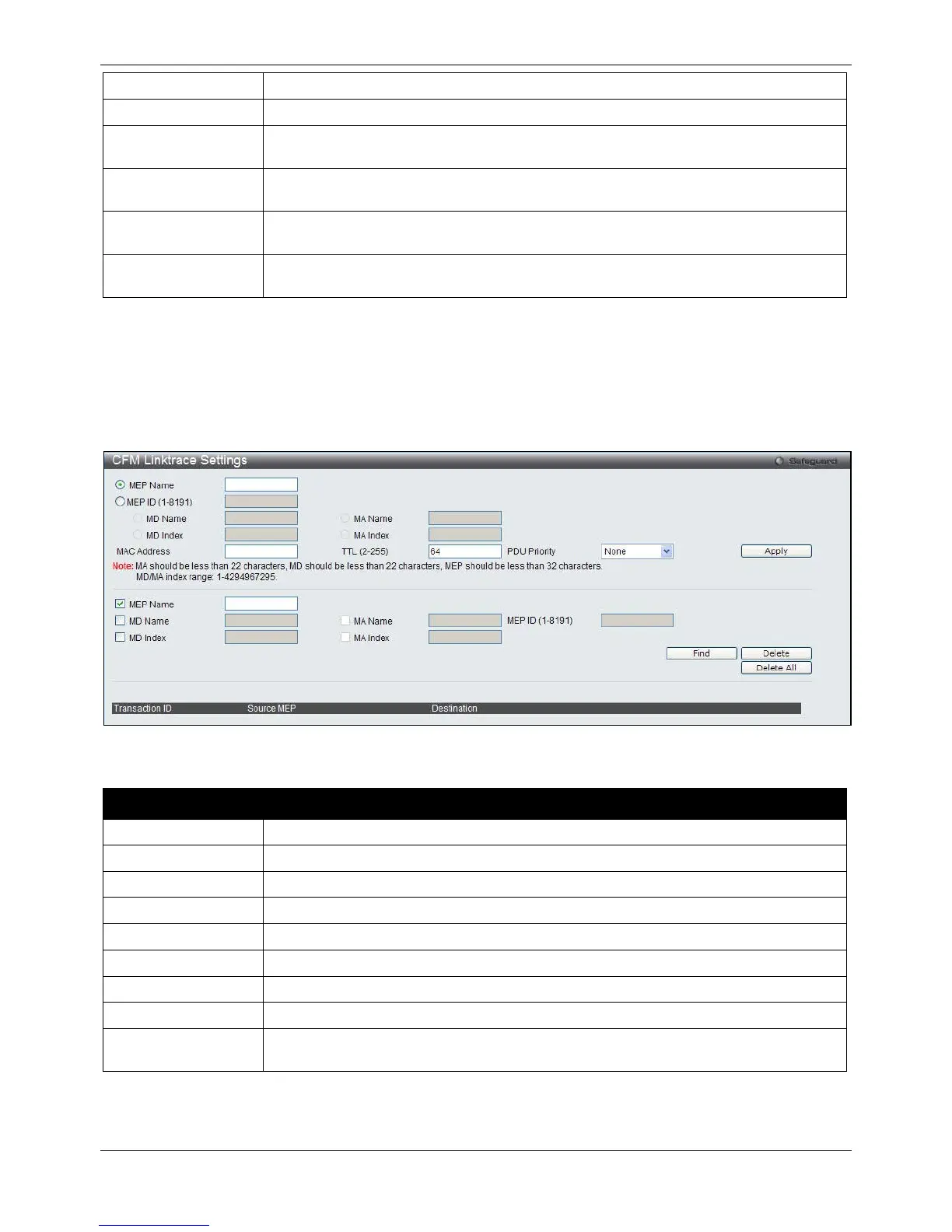

Figure 10-13 CFM Linktrace Settings Window
The fields that can be configured are described below:
Parameter Description
MEP Name
Select and enter the Maintenance End Point name used.
MEP ID (1-8191)
Select and enter the Maintenance End Point ID used.
MD Name
Select and enter the Maintenance Domain name used.
MD Index
Select and enter the Maintenance Domain index used.
MA Name
Select and enter the Maintenance Association name used.
MA Index
Select and enter the Maintenance Association index used.
MAC Address
Here the user can enter the destination MAC address.
TTL
Link-trace message TTL value. The default value is 64.
PDU Priority
The 802.1p priority to be set in the transmitted LTM. If not specified, it uses the same
priority as CCMs sent by the MA.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete button to remove the specific entry based on the information entered.
