xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
313
value before being forwarded by the Switch.
For more information on priority queues, CoS queues and mapping for 802.1p, see the
QoS section of this manual.
Replace DSCP (0-63)
Select this option to instruct the Switch to replace the DSCP value (in a packet that
meets the selected criteria) with the value entered in the adjacent field. When an ACL
rule is added to change both the priority and DSCP of an IPv4 packet, only one of
them can be modified due to a chip limitation. Currently the priority is changed when
both the priority and DSCP are set to be modified.
Time Range Name
Tick the check box and enter the name of the Time Range settings that has been
previously configured in the Time Range Settings window. This will set specific times
when this access rule will be implemented on the Switch.
Counter
Here the user can select the counter. By checking the counter, the administrator can
see how many times that the rule was hit.
Ports
When a range of ports is to be configured, the Auto Assign check box MUST be ticked
in the Access ID field of this window. If not, the user will be presented with an error
message and the access rule will not be configured. Ticking the All Ports check box
will denote all ports on the Switch.
Specify the port group ID to apply to the access rule.
Specify the port group name to apply to the access rule.
Specify the VLAN name to apply to the access rule.
Specify the VLAN ID to apply to the access rule.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Apply button to accept the changes made.

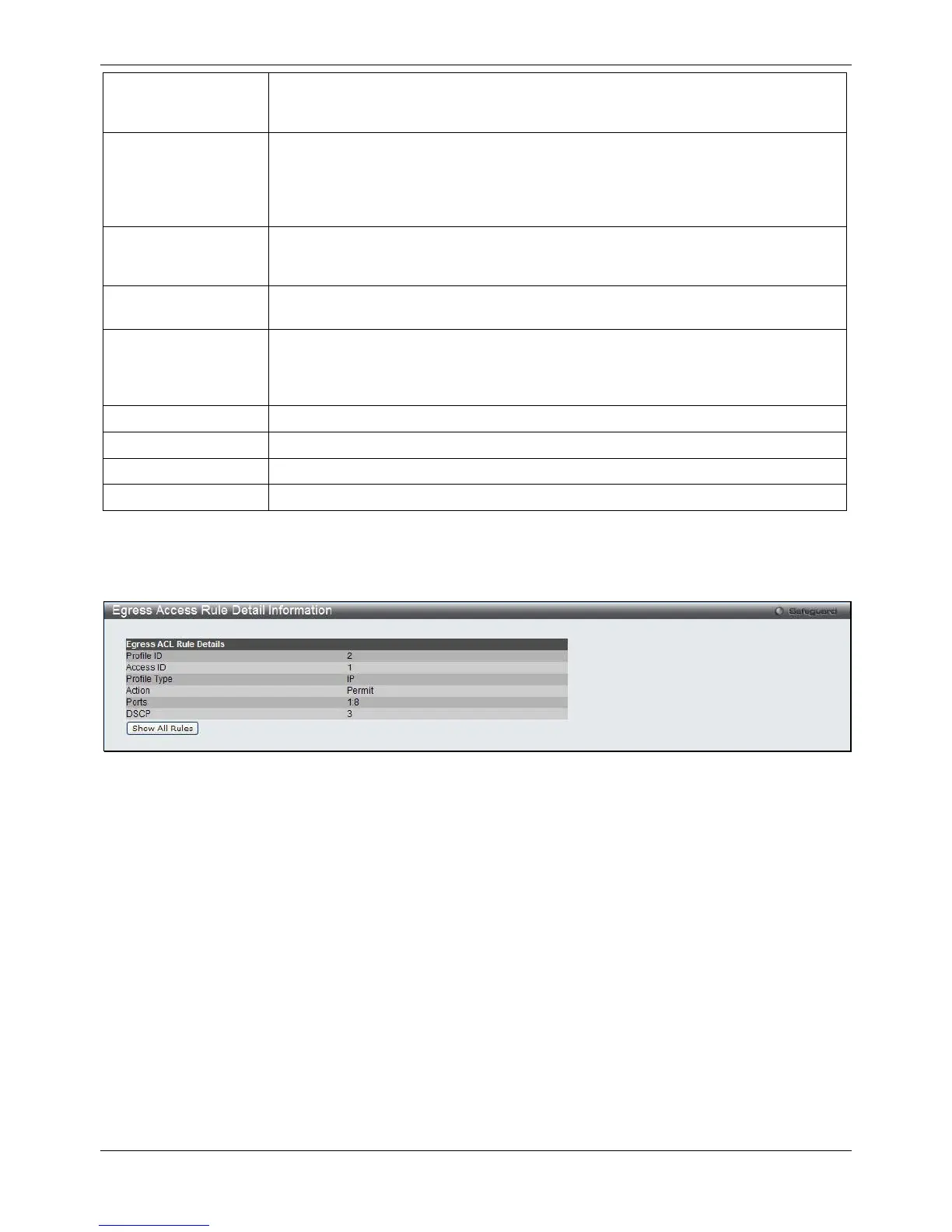

After clicking the Show Details button in the Egress Access Rule List, the following page will appear:
Figure 7-58 Egress Access Rule Detail Information (IPv4 ACL)
Click the Show All Rules button to navigate back to the Access Rule List.
Adding an IPv6 Egress ACL Profile
The window shown below is the Add Egress ACL Profile window for IPv6. To use specific filtering masks in this
egress ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add Egress ACL button, the following page will appear:
