Click the Delete button to remove the corresponding entry.
Click the
Group List
link to configure the Multicast Group Profile Address Settings for the specific entry.
After clicking the
Group List link, the following page will appear:

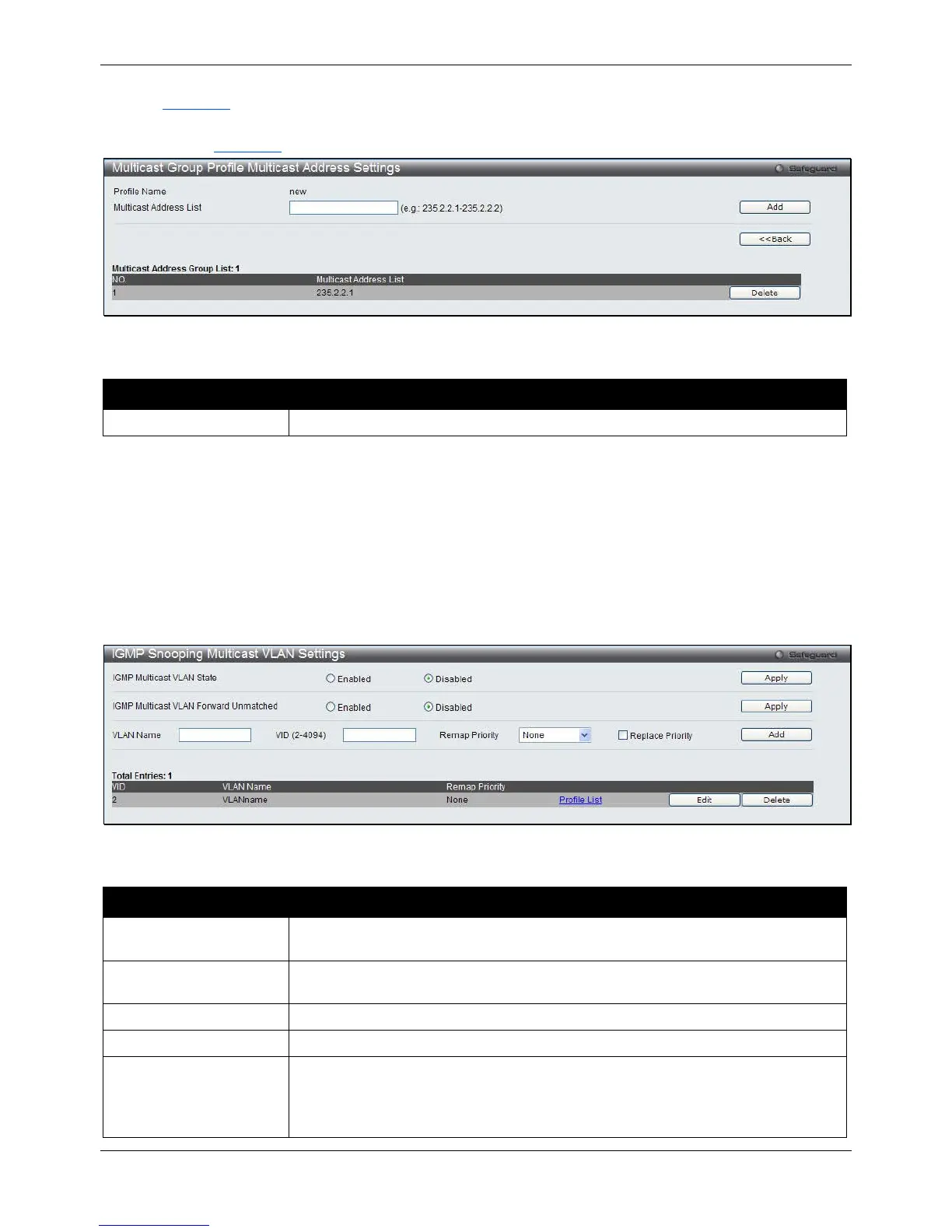

Figure 4-81 Multicast Group Profile Multicast Address Settings window
The fields that can be configured are described below:
Parameter Description
Multicast Address List
Enter the multicast address list value.
Click the Add button to add a new entry based on the information entered.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Delete button to remove the corresponding entry.
IGMP Snooping Multicast VLAN Settings
On this page the user can configure the IGMP snooping multicast VLAN parameters.
To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > IGMP Snooping
Multicast VLAN Settings, as show below:
Figure 4-82 IGMP Snooping Multicast VLAN Settings window
The fields that can be configured are described below:
Parameter Description
IGMP Multicast VLAN
State
Click the radio buttons to enable or disable the IGMP Multicast VLAN state.
IGMP Multicast VLAN
Forward Unmatched
Click the radio buttons to enable or disable the IGMP Multicast VLAN Forwarding
state.
VLAN Name
Enter the VLAN Name used.
VID (2-4094)
Enter the VID used.
Remap Priority 0-7 – The remap priority value (0 to 7) to be associated with the data traffic to be
forwarded on the multicast VLAN.
None – If None is specified, the packet’s original priority is used. The default setting
is None.
