xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
217
Parameter Description
RP Address
Enter the IP address of the RP for which the data part will be included when
calculating checksum for registering packets to the RP.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specific entry.

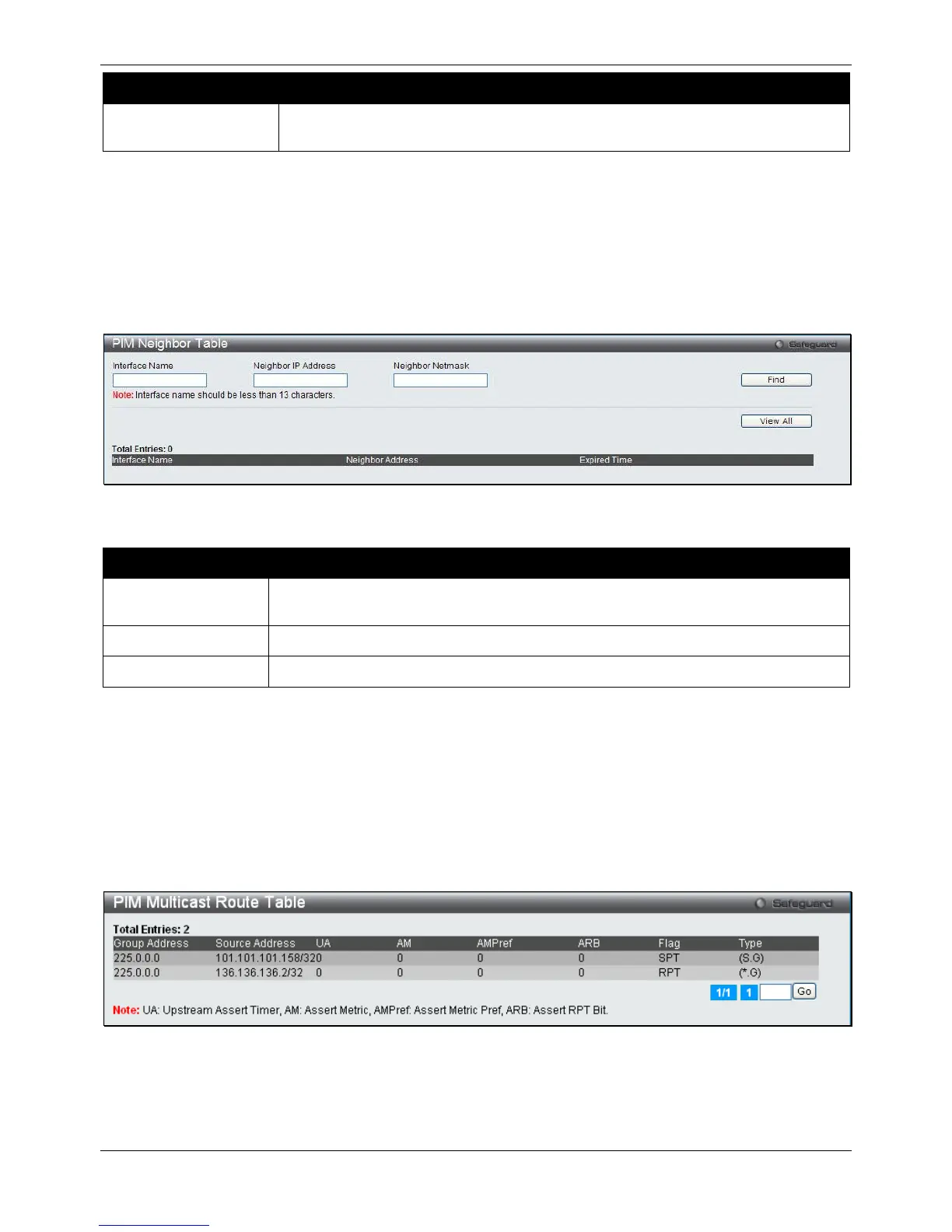

PIM Neighbor Table
This window is used to display the current PIM neighbor router table.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Neighbor Table, as shown below:
Figure 5-88 PIM Neighbor Table window
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the name of the IP interface for which you want to display the current PIM
neighbor routing table.
Neighbor IP Address
Enter the IP address of the destination.
Neighbor Netmask
Enter the netmask of the destination.
Click the Find button to find the interface entered.
Click the View All button to view all the interfaces configured on this switch.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
PIM Multicast Route Table
This window is used to display the current PIM multicast route table.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Multicast Route Table, as shown below:
Figure 5-89 PIM Multicast Route Table window
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
PIM RP-Set Table
