xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
447

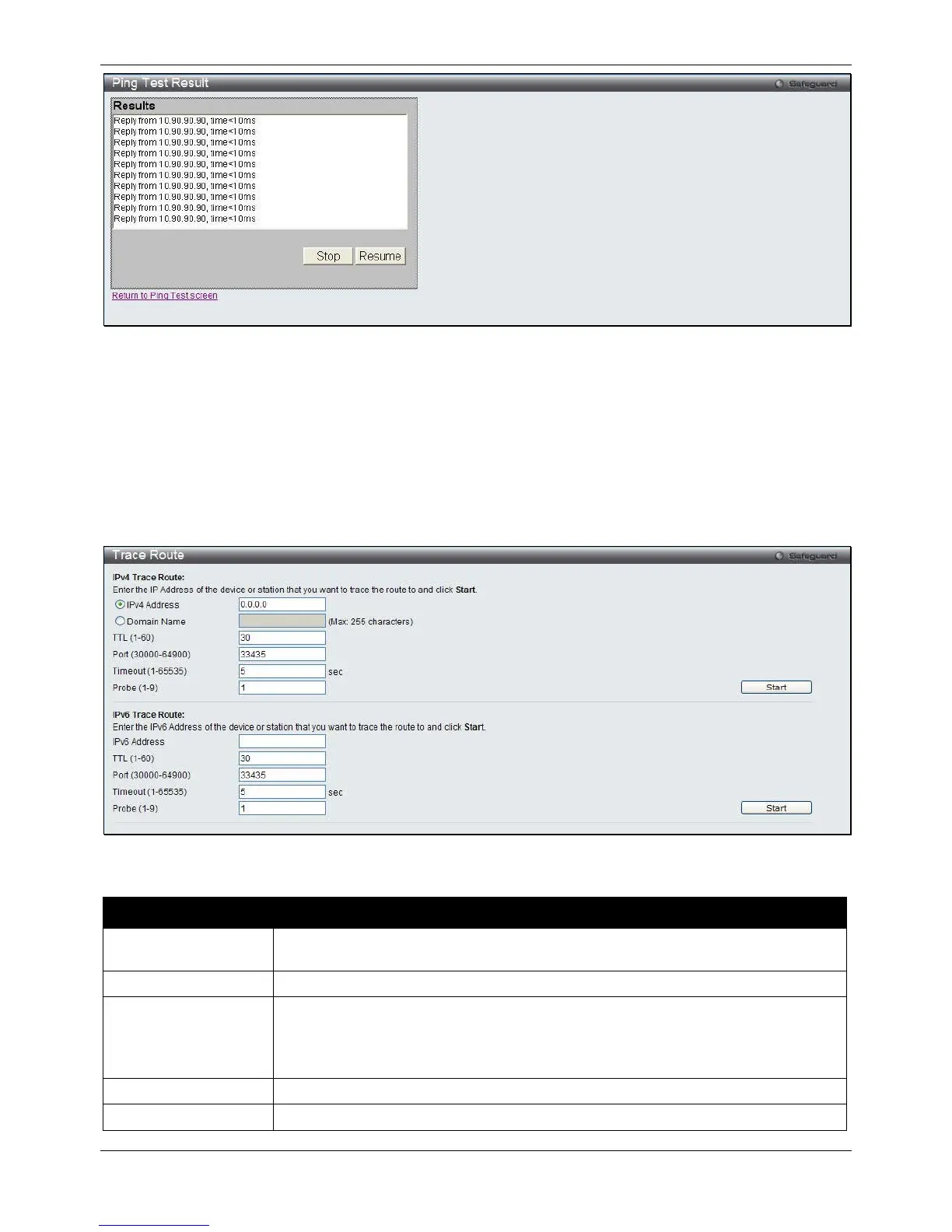

Figure 11-26 Ping Test Result window
Click the Stop button to halt the Ping Test.
Click the Resume button to resume the Ping Test.
Trace Route
The trace route page allows the user to trace a route between the switch and a given host on the network.
To view this window, click Monitoring > Trace Route as shown below:
Figure 11-27 Trace Route window
The fields that can be configured are described below:
Parameter Description
IPv4 Address / IPv6
Address
IP address of the destination station.
Domain Name
The domain name of the destination end station.
TTL (1-60)
The time to live value of the trace route request. This is the maximum number of
routers that a trace route packet can pass. The trace route option will cross while
seeking the network path between two devices.
The range for the TTL is 1 to 60 hops.
Port (300000-64900)
The port number. The value range is from 30000 to 64900.
Timeout (1-65535)
Defines the timeout period while waiting for a response from the remote device. A
