Log State
Use the drop-down menu to enable or disable log state.
Password Type Use the drop-down menu to select the password type. Available options are Manual
String and Client MAC Address.
Password
Enter the password for the RADIUS server, which is to be used for packets being sent
requesting authentication. The default password is “default”.
Trap State
Use the drop-down menu to enable or disable sending out the trap for MAC-based
Access Control.
Max User (1-4000) Enter the maximum amount of users of the Switch. Tick the No Limit check box to
have unlimited users.
VLAN Name
Enter the name of the previously configured Guest VLAN being used for this function.
VID
Click the radio button and enter a Guest VLAN ID.
Member Ports
Enter the list of ports that have been configured for the Guest VLAN.
Unit
Select the unit you want to configure.
From Port / To Port
Use the drop-down menus to select a range of ports to be configured for MAC-based
access control.
State
Use this drop-down menu to enable or disable MAC-based access control on the port
or range of ports selected in the Port Settings section of this window.
Aging Time (1-1440) Enter a value between 1 and 1440 minutes. The default is 1440. To set this value to
have no aging time, select the Infinite option.
Block Time (0-300)
Enter a value between 0 and 300 seconds. The default is 300.
Max User (1-4000) Enter the maximum user used for this configuration. When No Limit is selected, there
will be no user limit applied to this rule.
Click the Apply button to accept the changes made for each individual section.
MAC-based Access Control Local Settings
Users can set a list of MAC addresses, along with their corresponding target VLAN, which will be authenticated for
the Switch. Once a queried MAC address is matched in this window, it will be placed in the VLAN associated with it
here. The Switch administrator may enter up to 128 MAC addresses to be authenticated using the local method
configured here.
To view this window, click Security > MAC-based Access Control (MAC) > MAC-based Access Control Local
Settings as shown below:

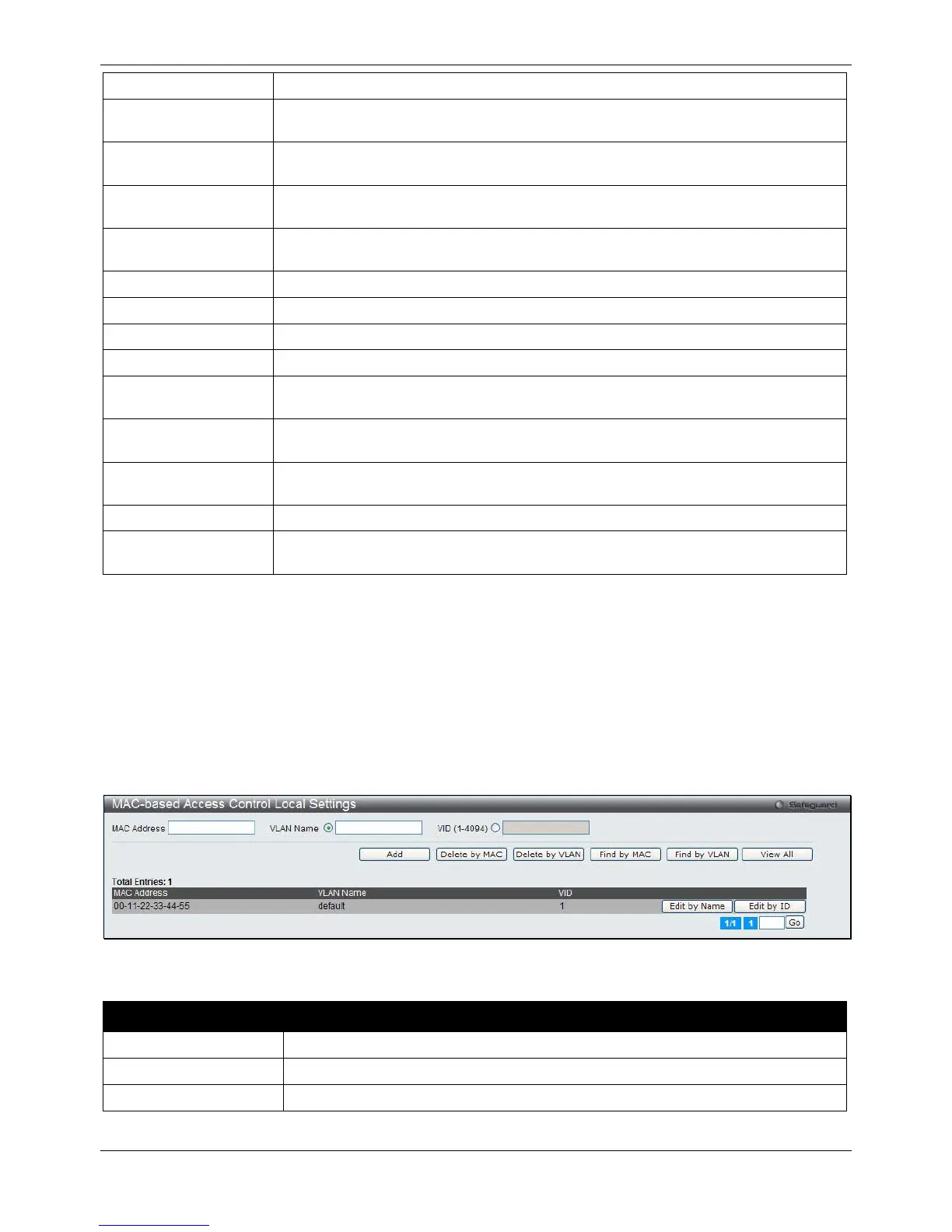

Figure 8-35 MAC-based Access Control Local Settings window
The fields that can be configured are described below:
Parameter Description
MAC address
Enter the MAC address that will be added to the local authentication list here.
VLAN Name
Enter the VLAN name of the corresponding MAC address here.
VID (1-4094)
Enter the VLAN ID of the corresponding MAC address here.
Click the Add button to add a new entry based on the information entered.
