Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Edit button to re-configure the specific entry.
Click the Edit button to see the following window.

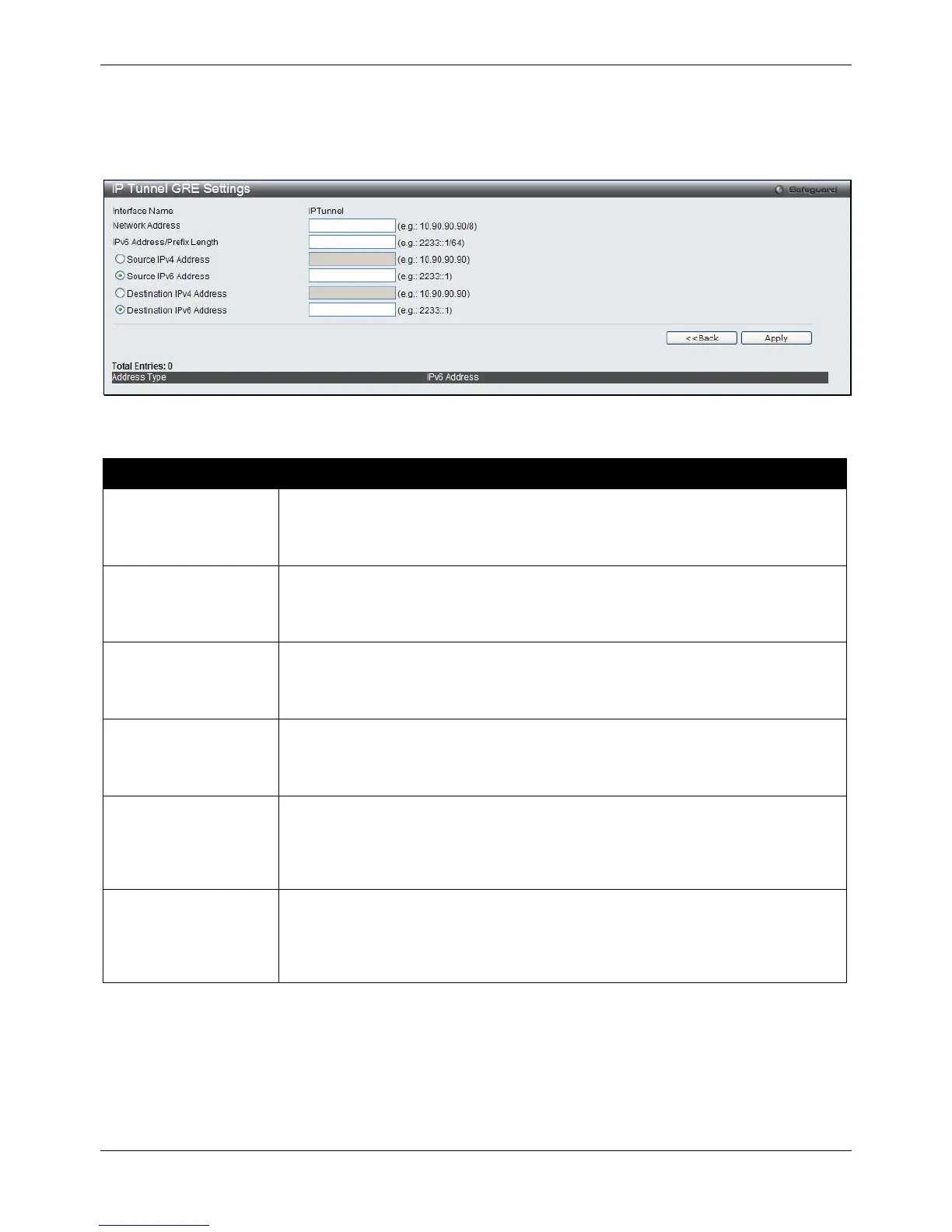

Figure 5-17 IP tunnel GRE Settings – Edit window
The fields that can be configured are described below:
Parameter Description
Network Address
Enter the IPv4 network address assigned to the GRE tunnel interface. IPv4
processing will be enabled on the IPv4 tunnel interface when an IPv4 address is
configured. This IPv4 address is not connected with the tunnel source or destination
IPv4 address.
IPv6 Address/Prefix
Length
Enter the IPv6 network address assigned to the GRE tunnel interface. IPv6
processing will be enabled on the IPv6 tunnel interface when an IPv6 address is
configured. This IPv6 address is not connected with the tunnel source or destination
IPv4 address.
Source IPv4 Address
Click the radio button and enter the source IPv4 address of the GRE tunnel interface.
It is used as the source address for packets in the tunnel. The address type that will
be used depends on the Delivery Protocol. The address type used at both the source
and destination must be consistent, otherwise, the GRE tunnel will not work.
Source IPv6 Address
Click the radio button and enter the source IPv6 address of the GRE tunnel interface.
It is used as the source address for packets in the tunnel. The address type that will
be used depends on the Delivery Protocol. The address type used at both the source
and destination must be consistent, otherwise, the GRE tunnel will not work.
Destination IPv4
Address
Click the radio button and enter the destination IPv4 address of the GRE tunnel
interface. It is used as the destination address for packets in the tunnel. The address
type that will be used depends on the Delivery Protocol. The address type used at
both the source and destination must be consistent, otherwise, the GRE tunnel will
not work.
Destination IPv6
Address
Click the radio button and enter the destination IPv6 address of the GRE tunnel
interface. It is used as the destination address for packets in the tunnel. The address
type that will be used depends on the Delivery Protocol. The address type used at
both the source and destination must be consistent, otherwise, the GRE tunnel will
not work.
Click the <<Back button to return to the previous window.
Click the Apply button to accept the changes made for each individual section.
OSPF
The Open Shortest Path First (OSPF) routing protocol uses a link-state algorithm to determine routes to network
destinations. A “link” is an interface on a router and the “state” is a description of that interface and its relationship
