xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
115

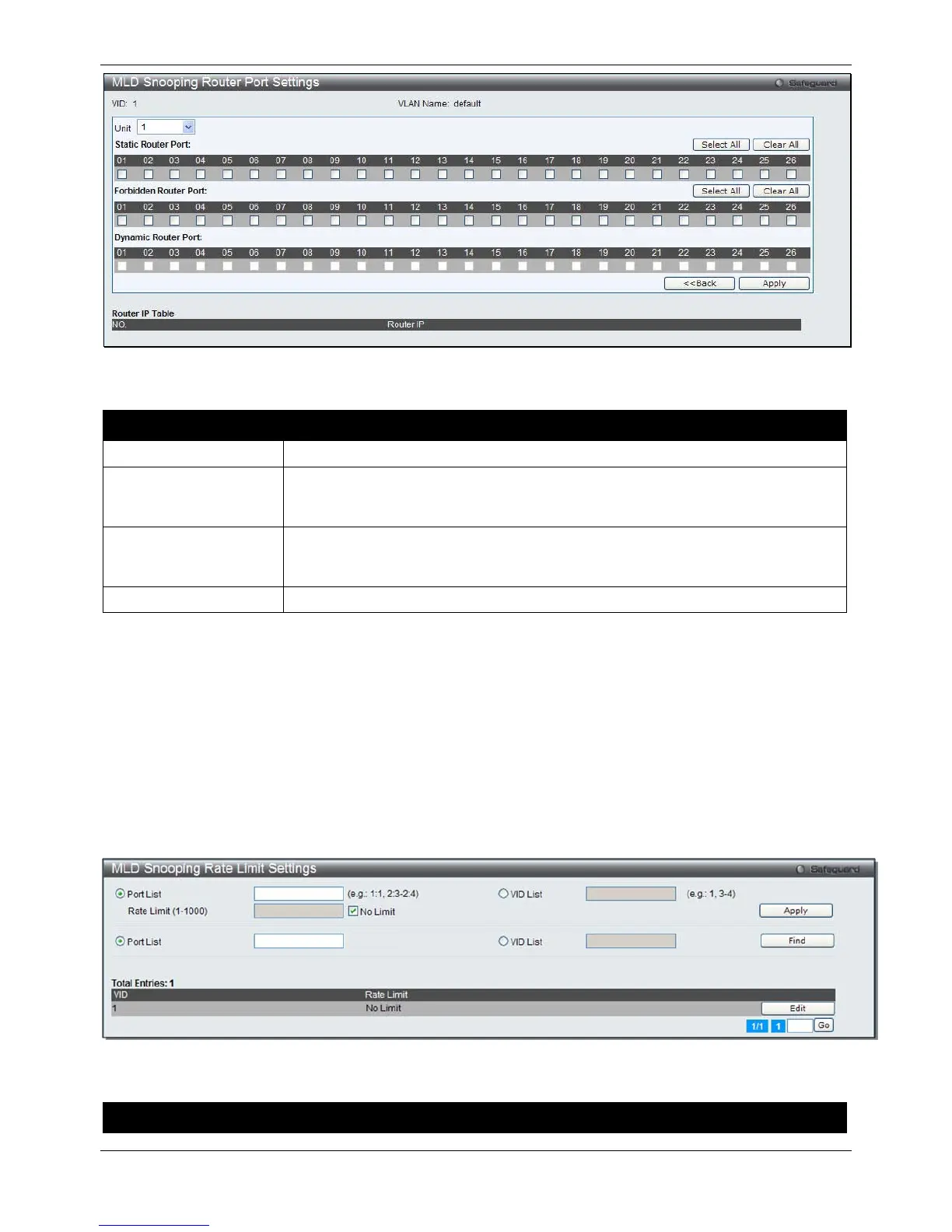

Figure 4-71 MLD Snooping Router Port Settings window
The fields that can be configured are described below:
Parameter Description
Select the unit you want to configure.
Static Router Port
This section is used to designate a range of ports as being connected to multicast-
enabled routers. This will ensure that all packets with such a router as its destination
will reach the multicast-enabled router regardless of the protocol.
Forbidden Router Port
This section is used to designate a range of ports as being not connected to
multicast-enabled routers. This ensures that the forbidden router port will not
propagate routing packets out.
Displays router ports that have been dynamically configured.
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
MLD Snooping Rate Limit Settings
Users can configure the rate limit of the MLD control packet that the switch can process on a specific port or VLAN
in this page.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Rate
Limit Settings, as show below:
Figure 4-72 MLD Snooping Rate Limit Settings window
The fields that can be configured are described below:
