The fields that can be configured are described below:
Parameter Description
RSPAN State
Click the radio buttons to enable or disable the RSPAN feature.
VLAN Name
Create the RSPAN VLAN by VLAN name.
VID (1-4094)
Create the RSPAN VLAN by VLAN ID.
Click the Apply button to accept the changes made.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Modify button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Modify button, the following page will appear:

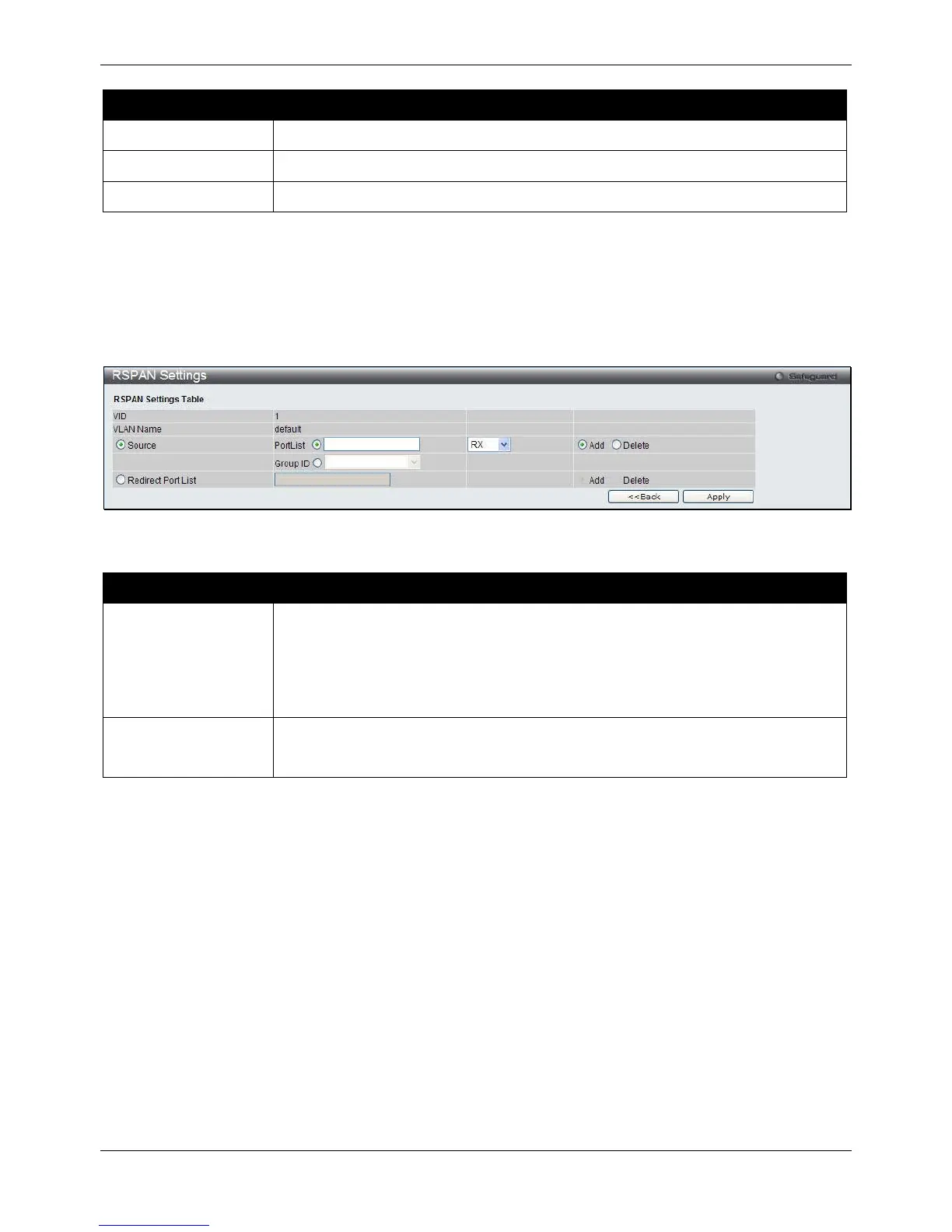

Figure 11-19 RSPAN Settings – Modify window
The fields that can be configured are described below:
Parameter Description
Source Ports
If the ports are not specified by option, the source of RSPAN will come from the
source specified by the mirror command or the flow-based source specified by an
ACL. If no parameter is specified for source, it deletes the configured source
parameters.
Select RX, TX or Both to specify in which direction the packets will be monitored.
Click Add or Delete to add or delete source ports.
Redirect Port List
Specify the output port list for the RSPAN VLAN packets. If the redirect port is a Link
Aggregation port, the Link Aggregation behavior will apply to the RSPAN packets.
Click Add or Delete to add or delete redirect ports.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
sFlow
sFlow (RFC3176) is a technology for monitoring traffic in data networks containing switches and routers. The sFlow
monitoring system consists of an sFlow Agent (embedded in a switch or router or in a standalone probe) and a
central sFlow Collector. The architecture and sampling techniques used in the sFlow monitoring system were
designed for providing continuous site-wide (and enterprise-wide) traffic monitoring of high speed switched and
routed networks.
sFlow Global Settings
This window is used to enable or disable the sFlow feature.
To view this window, click Monitoring > sFlow > sFlow Global Settings as shown below:
