xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
215
Click the Edit button to see the following window.

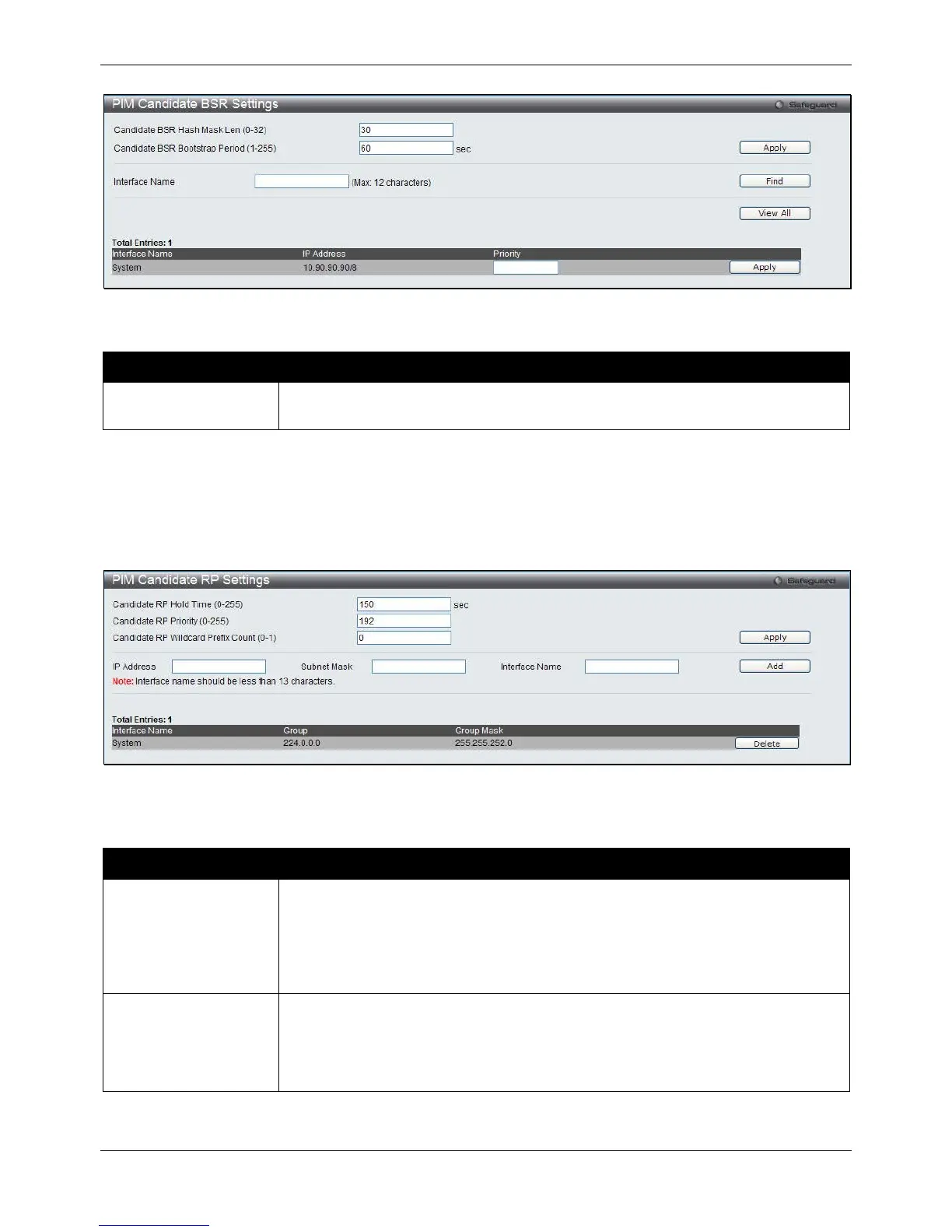

Figure 5-84 PIM Candidate BSR Settings - Edit window
The fields that can be configured are described below:
Parameter Description
Priority
Enter a value -1 or from 0 to 255. The default value is -1 which means the BSR state
is disabled.
PIM Candidate RP Settings
The following window is used to set the Parameters for this Switch to become a candidate RP.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM
Candidate RP Settings, as shown below:
Figure 5-85 PIM Candidate RP Settings window
The fields that can be configured are described below:
Parameter Description
Candidate RP Hold
Time (0-255)
This field is used to set the time Candidate RP (CRP) advertisements are valid on the
PIM-SM enabled network. If CRP advertisements are not received by the BSR within
this time frame, the CRP is removed from the list of candidates. The user may set a
time between 0 and 255 seconds with a default setting of 150 seconds. An entry of 0
will send out one advertisement that states to the BSR that it should be immediately
removed from CRP status on the PIM-SM network.
Candidate RP Priority
(0-255)
Enter a priority value to determine which CRP will become the RP for the distribution
tree. This priority value will be included in the router’s CRP advertisements. A lower
value means a higher priority, yet, if there is a tie for the highest priority, the router
having the higher IP address will become the RP. The user may set a priority
between 0 and 255 with a default setting of 192.
