Unit
Select the unit you want to configure.
From Port / To Port
Here the user can select a range of ports to use in the configuration.
Role
Port role in Q-in-Q mode, it can be UNI port or NNI port.
Missdrop
This option enables or disables C-VLAN based SP-VLAN assignment miss drop. If
Missdrop is enabled, the packet that does not match any assignment rule in the Q-in-Q
profile will be dropped. If disabled, then the packet will be forwarded and will be assigned
to the PVID of the received port.
Outer TPID
Enter an Outer TPID in SP-VLAN tag here.
Use Inner Priority
Use the drop-down menu to specify whether to use the priority in the C-VLAN tag as the
priority in the S-VLAN tag. By default, the setting is Disabled.
Add Inner Tag Deselect the Disable check box and enter an entry that an Inner Tag will be added to the
entry. By default the Disabled check box is selected.
Click the Apply button to accept the changes made for each individual section.
VLAN Translation Settings
This page can be used to add translation relationship between C-VLAN and SP-VLAN. On ingress at UNI port, the
C-VLAN tagged packets will be translated to SP-VLAN tagged packets by adding or replacing according the
configured rule. On egress at this port, the SP-VLAN tag will be recovered to C-VLAN tag or be striped. The priority
will be the priority in the SP-VLAN tag if the inner priority flag is disabled for the receipt port.
To view the following window, click L2 Features > QinQ > VLAN Translation Settings, as show below:

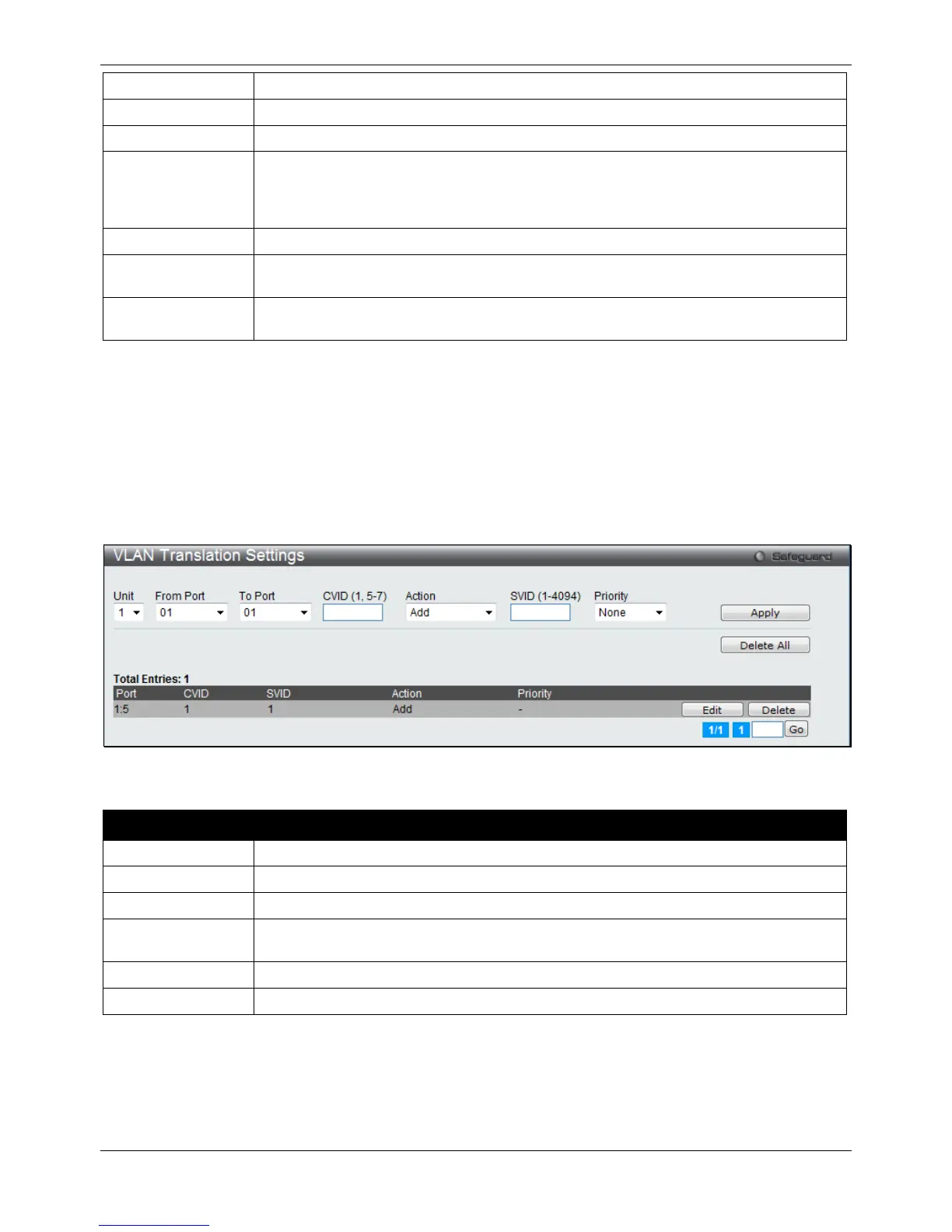

Figure 4-34 VLAN Translation Settings Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure.
From Port / To Port
Select a range of ports to use in the configuration.
CVID (1, 5-7)
Enter the C-VLAN ID to match.
Action
The action indicates to add an S-tag before a C-tag or to replace the original C-tag by an
S-tag.
SVID (1-4094)
Enter the SP-VLAN ID.
Priority
Select the priority of the s-tag.
Click the Apply button to accept the changes made for each individual section.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove a specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
