xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
75
Parameter Description
Secondary VLAN Type Use the drop-down menu to select secondary VLAN type between Isolated or
Click the Add button to add a new entry based on the information entered.
Click the
View Private VLAN List
link to view all the private VLAN.
PVID Auto Assign Settings
This window is used to enable or disable PVID Auto Assign Status. The default setting is enabled.
To view the following window, click L2 Features > VLAN > PVID Auto Assign Settings, as show below:

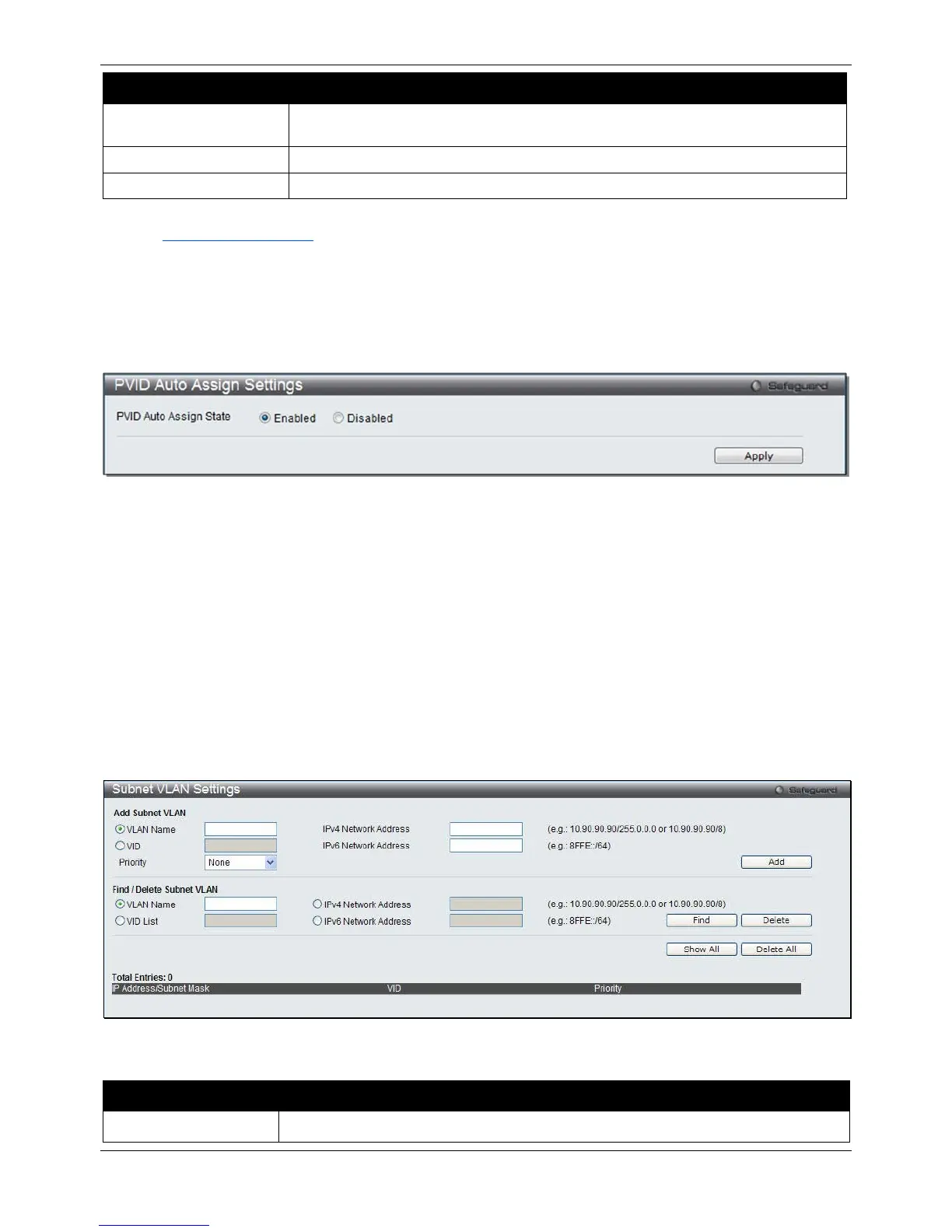

Figure 4-16 PVID Auto Assign Settings window
Click the Apply button to accept the changes made.
Subnet VLAN
Subnet VLAN Settings
A subnet VLAN entry is an IP subnet-based VLAN classification rule. If an untagged or priority-tagged IP packet is
received on a port, its source IP address will be used to match the subnet VLAN entries. If the source IP is in the
subnet of an entry, the packet will be classified to the VLAN defined for this subnet.
The user can configure the subnet VLAN parameters here.
To view the following window, click L2 Features > VLAN > Subnet VLAN > Subnet VLAN Settings, as show
below:
Figure 4-17 Subnet VLAN Settings Window
The fields that can be configured are described below:
Parameter Description
VLAN Name
Enter a VLAN Name.
