xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
142
To view the normal LLDP Local Port information page per port, click the Show Normal button.
To view the brief LLDP Local Port information page per port, click the Show Brief button.

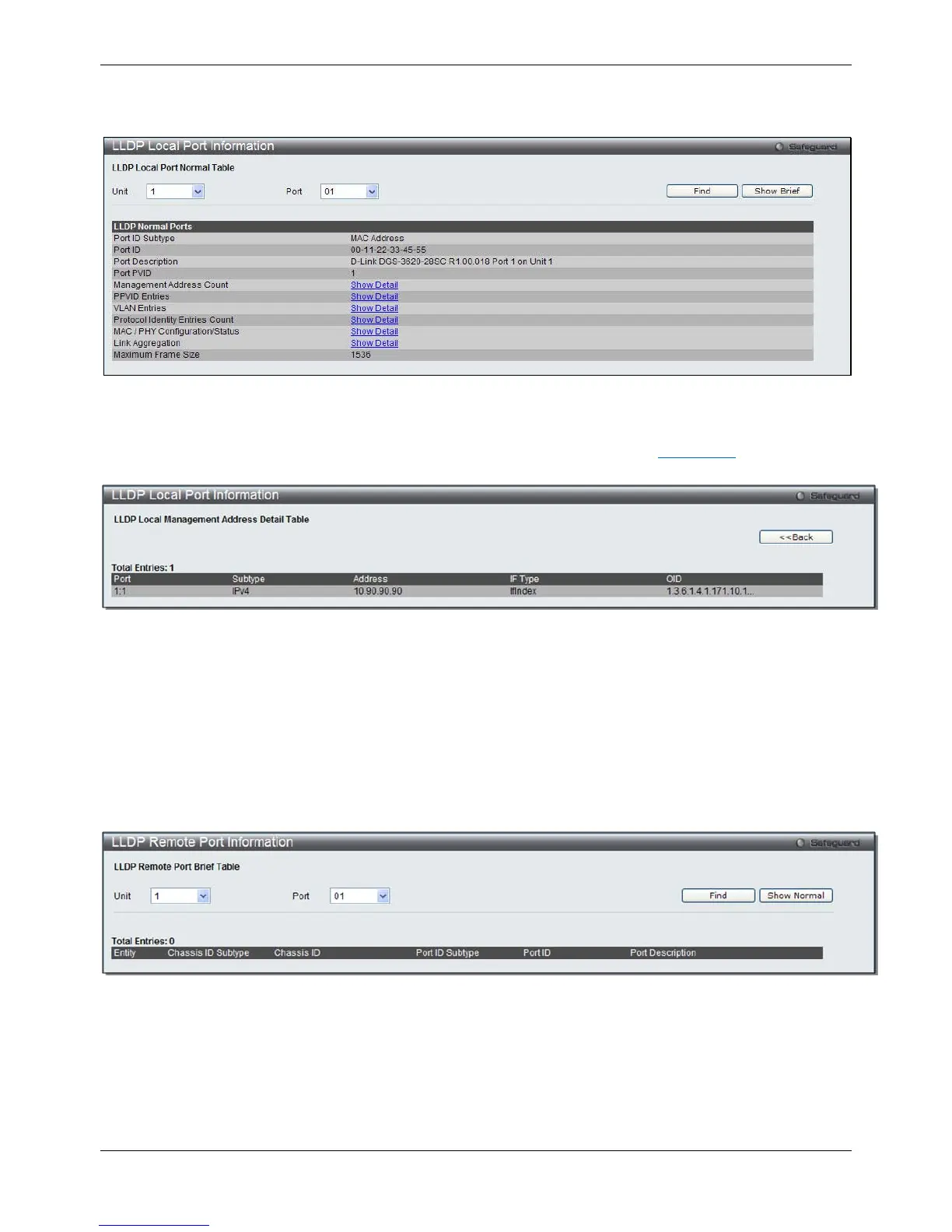

Figure 4-108 LLDP Local Port Information – Show Normal window
Select a Unit and Port number and click the Find button to locate a specific entry.
To view more details about, for example, the Management Address Count, click the
Show Detail
hyperlink.
Figure 4-109 LLDP Local Port Information – Show Detail window
Click the <<Back button to return to the previous page.
LLDP Remote Port Information
This page displays port information learned from the neighbors. The switch receives packets from a remote station
but is able to store the information as local.
To view the following window, click L2 Features > LLDP > LLDP> LLDP Remote Port Information, as show
below:
Figure 4-110 LLDP Remote Port Information window
Select a Unit and Port number from the drop-down menu and click the Find button to view statistics for a certain
port.
To view the normal LLDP Remote Port information page per port, click the Show Normal button.
