xStack® DGS-3620 Series Managed Switch Web UI Reference Guide
189
The fields that can be configured are described below:
Parameter Description
Area ID
Enter a 32-bit number in the form of an IP address (xxx.xxx.xxx.xxx) that uniquely
identifies the OSPF area in the OSPF domain.
Advertise Router ID
Enter the router ID of the advertising router.
LSDB Type
Use the drop-down menu to select the LSDB type to be displayed. Options to choose
from are None, RTRLink, NETLink, Summary, ASSummary, ASExtLink, NSSA Ext and
Stub.
Click the Find button to find the specified entry.
Click the View All button to view all the OSPF Link State Database entries.
Click the
View Detail
link to view the OSPF LSDB details of the specific entry.
After clicking the
View Detail link, the following window will appear.

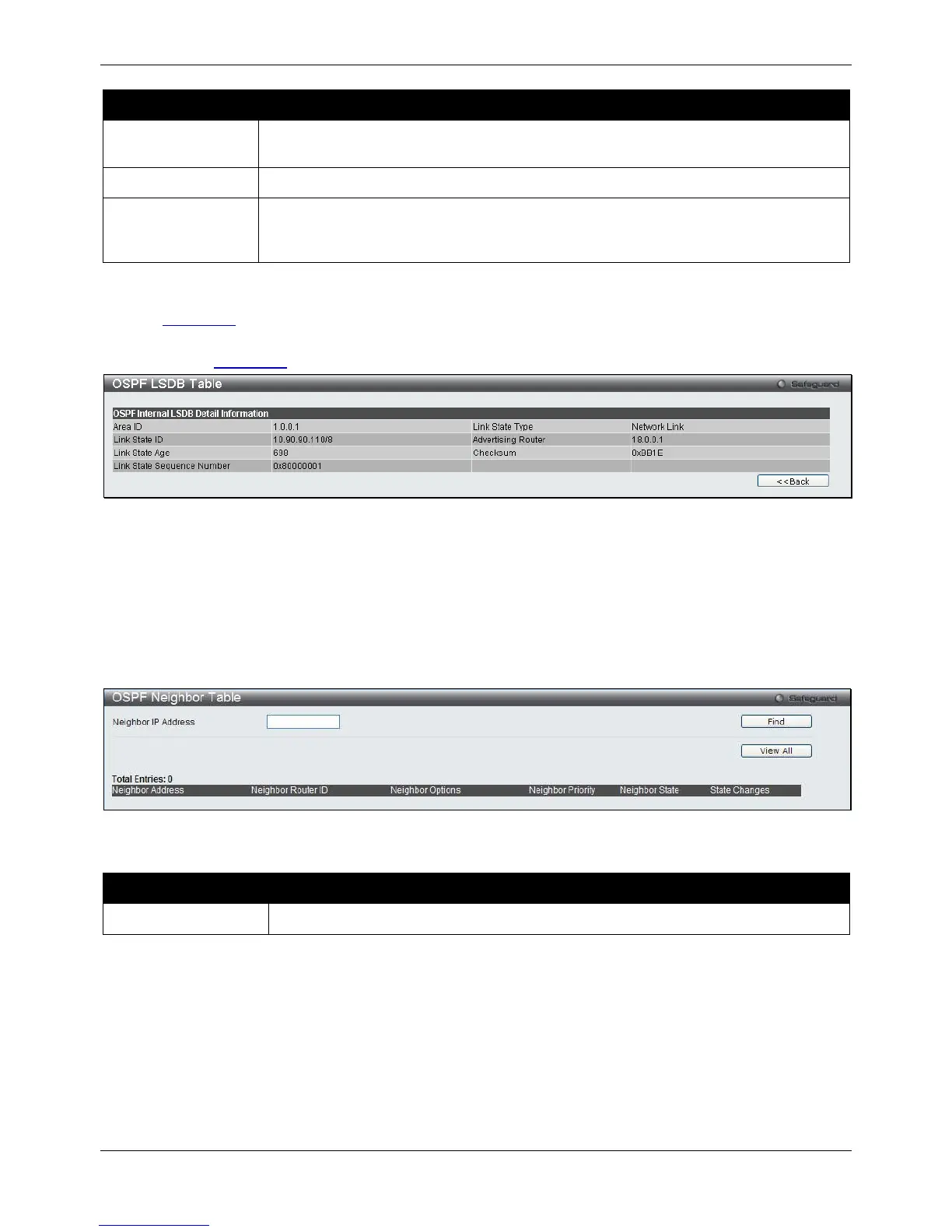

Figure 5-44 OSPF LSDB Table - View Detail window
Click the <<Back button to return to the previous window.
OSPF Neighbor Table
This window is used to display OSPF-neighbor information on a per-interface basis.
To view the following window, click L3 Features > OSPF > OSPFv2 > OSPF Neighbor Table, as shown below:
Figure 5-45 OSPF Neighbor Table window
The fields that can be configured are described below:
Parameter Description
Neighbor IP Address
Enter the IP address of the neighbor router.
Click the Find button to find the specified entry.
Click the View All button to view all the entries.
OSPF Virtual Neighbor Table
This window is used to display OSPF-neighbor information of OSPF virtual links.
To view the following window, click L3 Features > OSPF > OSPFv2 > OSPF Virtual Neighbor Table, as shown
below:
