2. RADAR, CHART RADAR OPERATION
2-41
2.28 Interswitch
The interswitch uses a network to transfer multiple radar signals to the monitor units
connected in the network. A master/slave relation can be set for a single radar signal
and that signal can be shown on multiple displays. Up to four antennas and four dis-
play units can be connected. Set the radar display and antenna groups from the [An-
tenna] button on the Status bar.
When you switch to a different antenna, the heading skew and timing adjustment (set
at installation) for that antenna are automatically applied.
The [Antenna] button on the Status bar shows current antenna selection.
Note: Switching to a different antenna or change the interswitch settings in the stand-
by mode.
2.28.1 How to display antenna information
The [ANT SELECT] display shows:
• Radar band, output power and antenna position of each antenna currently powered.
(If an antenna is not powered, its data area is blank.)
• Current antenna and display combinations.

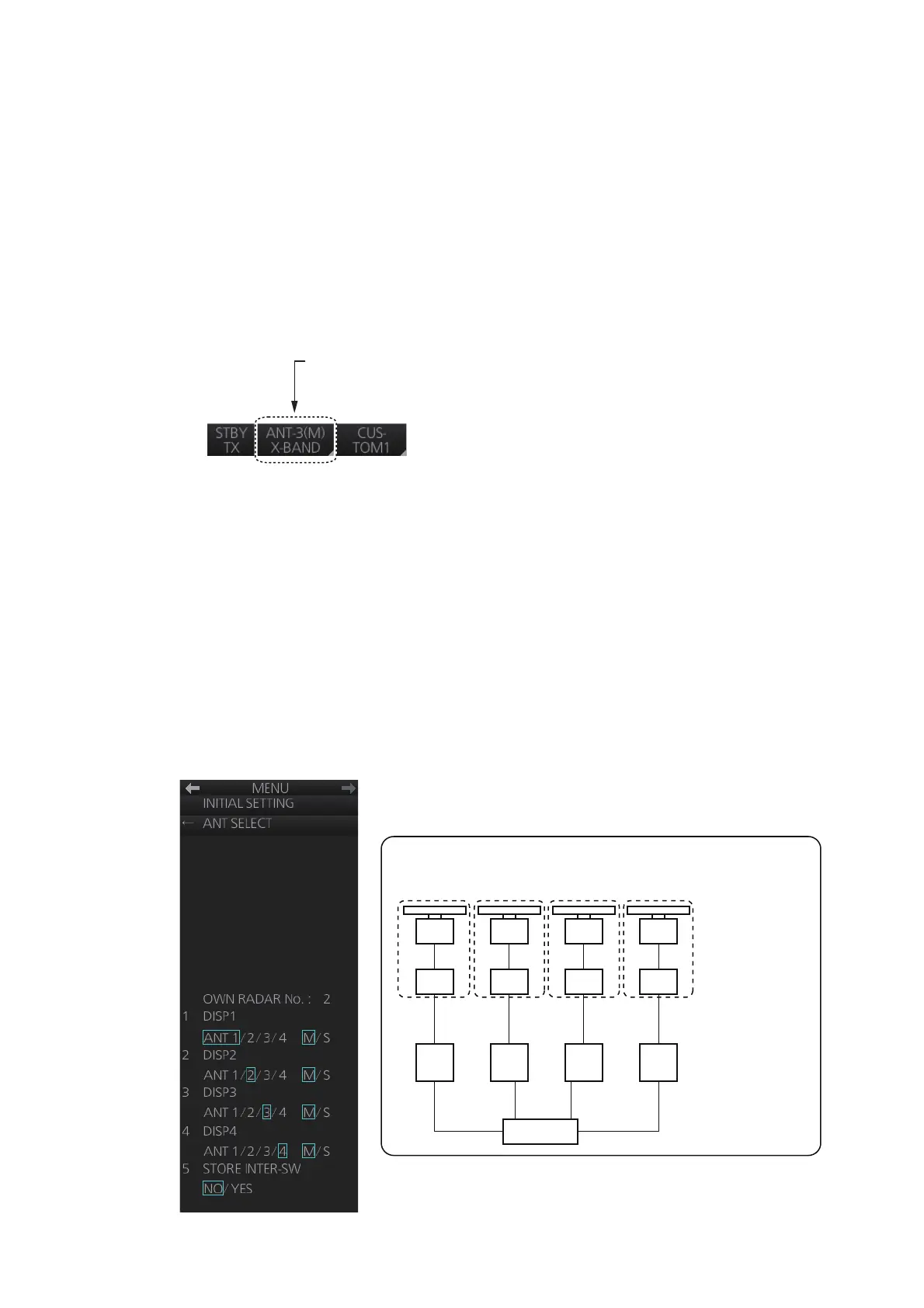

To show antenna information, open the menu then select the [8 INITIAL SETTING]
and [5 ANT SELECT] menus.
[Antenna] button
- ANT-3(M): Antenna no. 3, (M)=Master (or (S)=Slave)
- X-BAND (or S-BAND)
DISP1 DISP2 DISP3 DISP4
ANT1 ANT2 ANT3 ANT4
HUB-3000
← Processor Unit
← Radar Processor Unit
← Antenna Unit
Using the information displayed in this example the antenna system configuration would
look something like this.
ANT 1 : X-BAND
25UP Main Top
ANT 2 : S-BAND
30UP Main 2nd
ANT 3 : X-BAND
12 Fore
ANT 4 : X-BAND
12 Aft
