2. RADAR, CHART RADAR OPERATION
2-32
2.23 Zoom
The zoom function enlarges an area of interest in the information area (magnification
range: 1.0, 1.5, 2.0, 2.5, 3.0; 2.0 is default). To use the zoom display, right-click the
operational area to show the context-sensitive menu then select [Zoom Set]. Roll the
trackball to put the zoom cursor on the area to zoom. Spin the scrollwheel to change
the magnification then push the left button to confirm the magnification and the posi-
tion. See the zoom display at the right side of the screen.
To deactivate the zoom function, right-click the operational area to show the context-
sensitive menu then select [Zoom Off].
Zoom display format
You can select the zoom display format with the following procedure.
1. Open the menu then select [4 INFORMATION BOX] and [3 ZOOM DISPLAY].
2. Select the appropriate zoom display format:
[STAB GND]: Ground stabilized zoom (Geographically fixed).
[STAB HDG]: Heading stabilized zoom (Relative).
[STAB NORTH]: North stabilized zoom (True).
[TT TRACK]: Tracked targets are zoomed.
3. Close the menu.

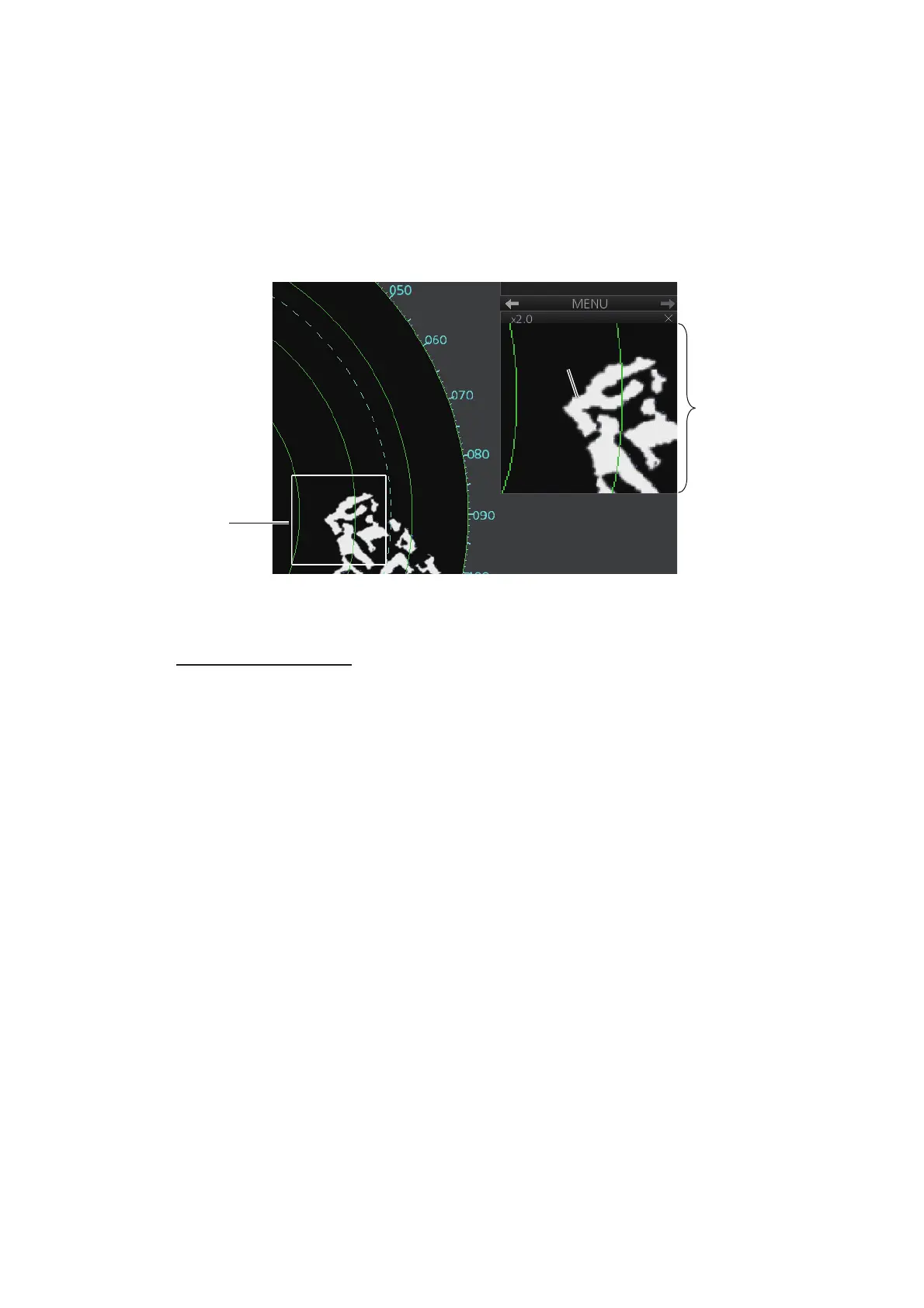

Zoom
cursor
Zoomed
echo
Zoom
display
