1. OPERATIONAL OVERVIEW
1-13

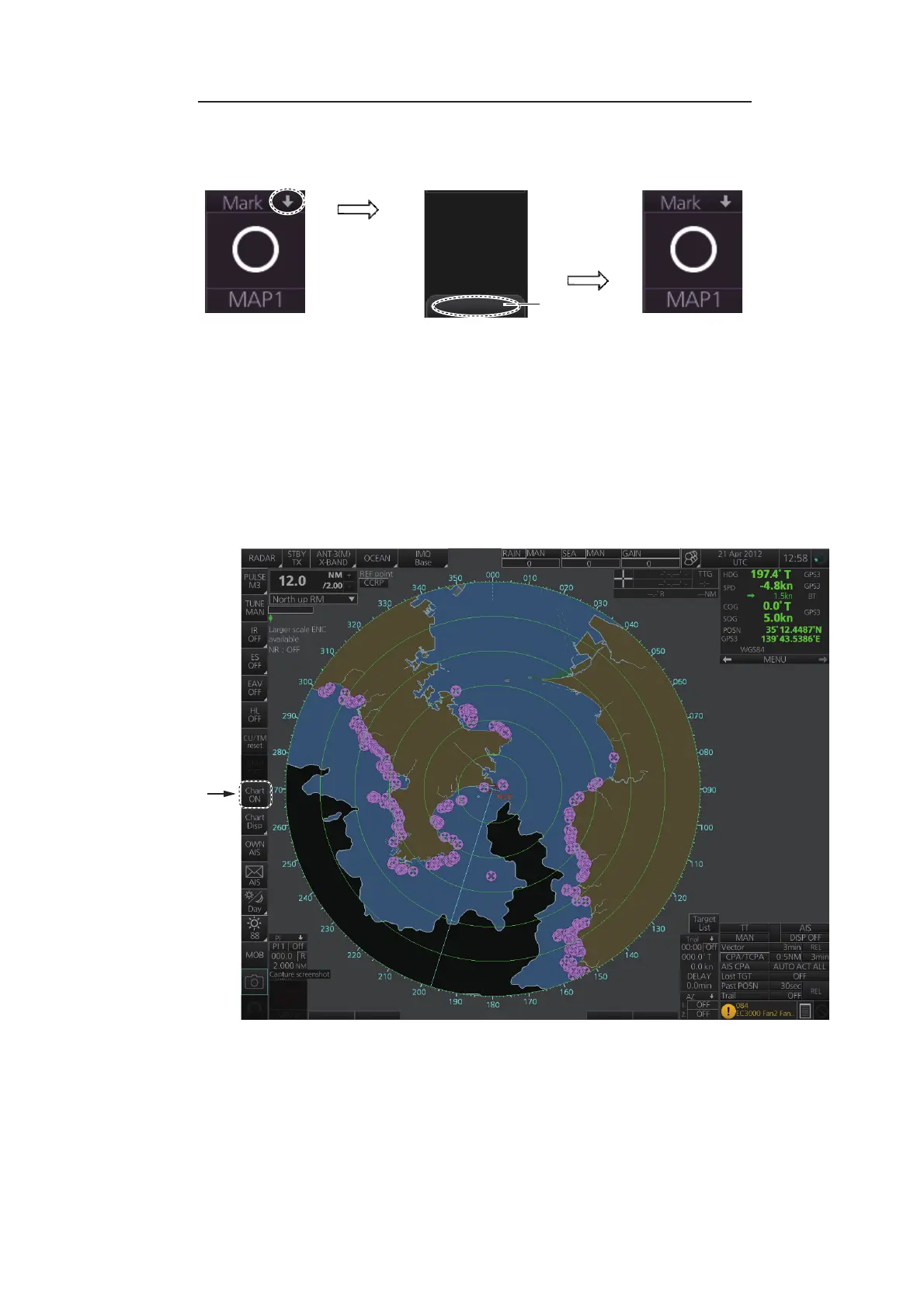

How to minimize, maximize the boxes at the bottom of the screen
The boxes at the bottom of the screen that contain an arrow can be minimized. Click
the arrow to minimize the box. To restore maximum size, click the minimized box.
Note: The respective VRM or EBL is erased from the screen when the corresponding
VRM or EBL box is minimized.
1.8.2 Chart radar display
The chart radar display overlays an electronic chart on the radar picture. To switch be-
tween the radar and chart radar displays, click the [Chart ON/OFF] button on the In-
stantAccess bar™.
Click arrow
to minimize.
Click here
to maximize.
Click to hide,
show chart.
