1. OPERATIONAL OVERVIEW
1-11
1.8 Display Screens
All display screens have operational buttons, boxes and indications, and display mark-
ers. Click a button or indication to execute the related operation. Context-sensitive
menus are available with several boxes outside the display area and objects inside the
display area. Right-click the appropriate box or object to show the related context-sen-
sitive menu.
Monitor viewing distance
The optimal viewing distance for the FURUNO-supplied monitors is 1020 mm.

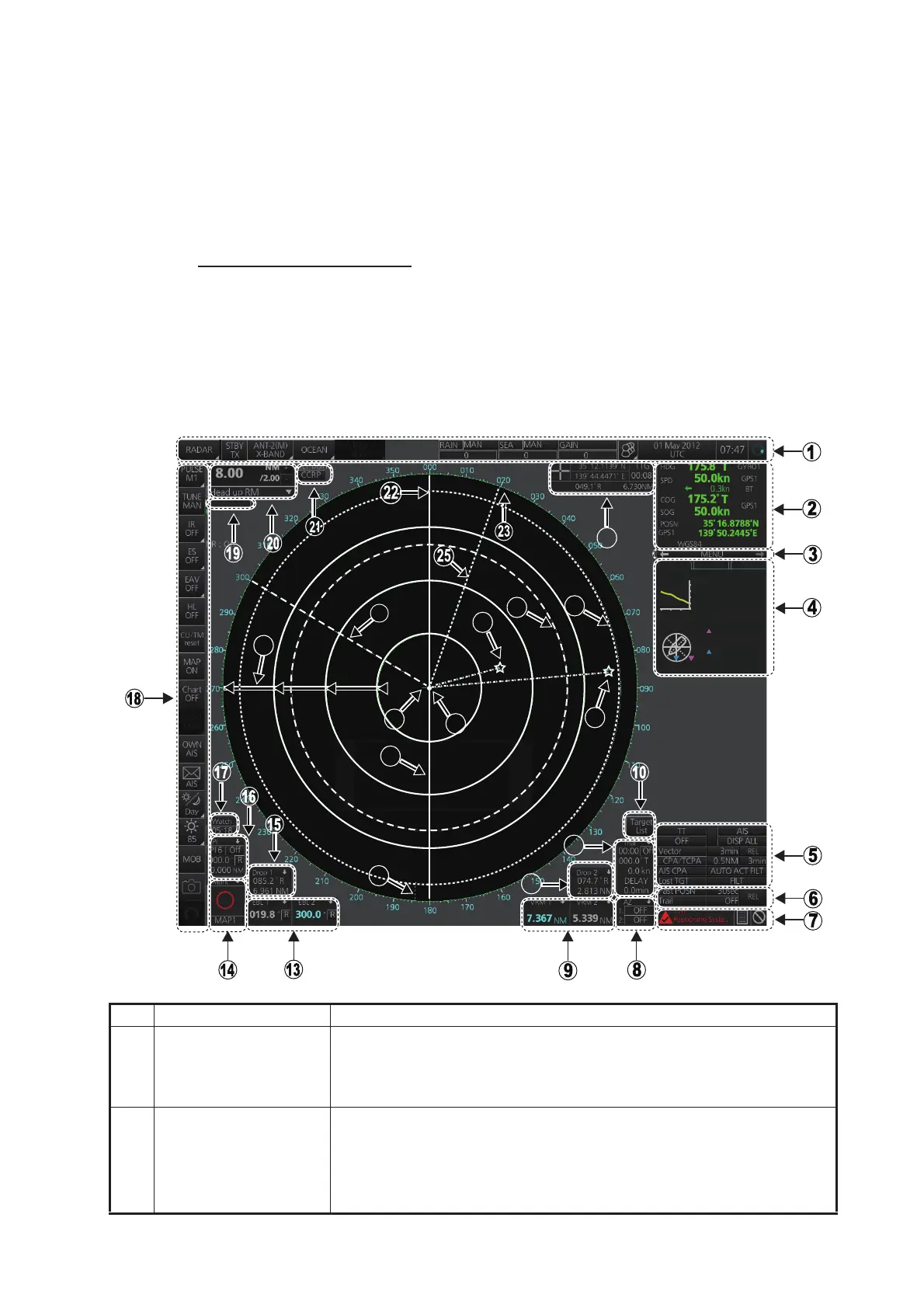

1.8.1 Radar display
The illustration below shows the markers, data, etc. as they appear on the FURUNO
19-inch monitor unit. The layout for the 23-inch monitor unit is similar.
No. Name Description
1 Status bar • Selects an antenna.
• Selects the mode.
• Adjusts the radar picture.
• Displays radar operational messages. See section 1.9.
2 Sensor information
box
Shows your ship's heading, heading source, ship's speed, water
tracking speed, speed source, course over ground, speed over
ground, position source.
Note: Position source shall meet the requirements of IMO
MSC.112(73).
24
26
27
28
29
30
31
11
12
32
34
33
Message
area
35
Depth :
403 m
Water
TEMP :
3.7°C
Wind True-North
Current
25.9 kn
NAV data
Route 1 Route 2
N
E
S
W
0
100
200
300
400
500
-30 -20 -10 min m
177.6°T
20.1 kn
124.5°
