22. SETTINGS MENU

22-5

22.5 Alert Setting

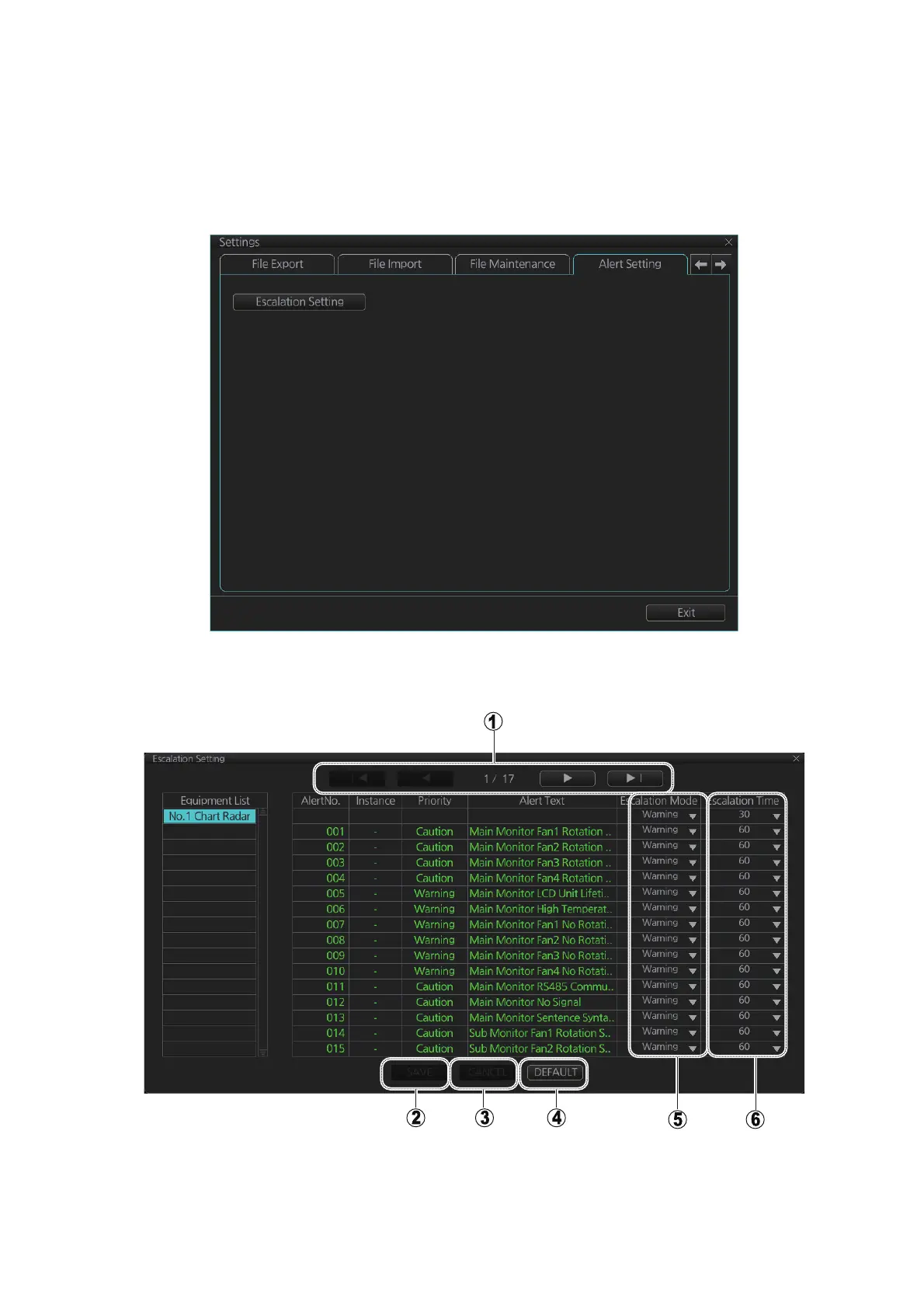

The [Alert Setting] page sets how long to wait before the priority of an alert is raised to

Warning or Alarm, when the alert goes unacknowledged. Click the [Escalation Setting]

button to show the escalation settings. Alerts can be escalated to alarm level or re-

peated as a warning.

A greyed out [Escalation Mode] or [Escalation Time] value means that the value can-

not be changed.
