7. HOW TO MANAGE CHARTS
7-26
7.20.1 How to insert update symbols
A manual update symbol can be added as shown in the procedure below.
Note 1: If the system freezes when updating the drawing type [Area], reset the power.
Note 2: An update symbol that straddles the international date line cannot be edited.
In this case, insert the same symbol on each side of the line.
Note 3: Do not do manual updating during chart synchronizing. Do the updating after
the completion of synchronizing or do the updating where the chart is installed.
1. Go to the Voyage navigation mode.

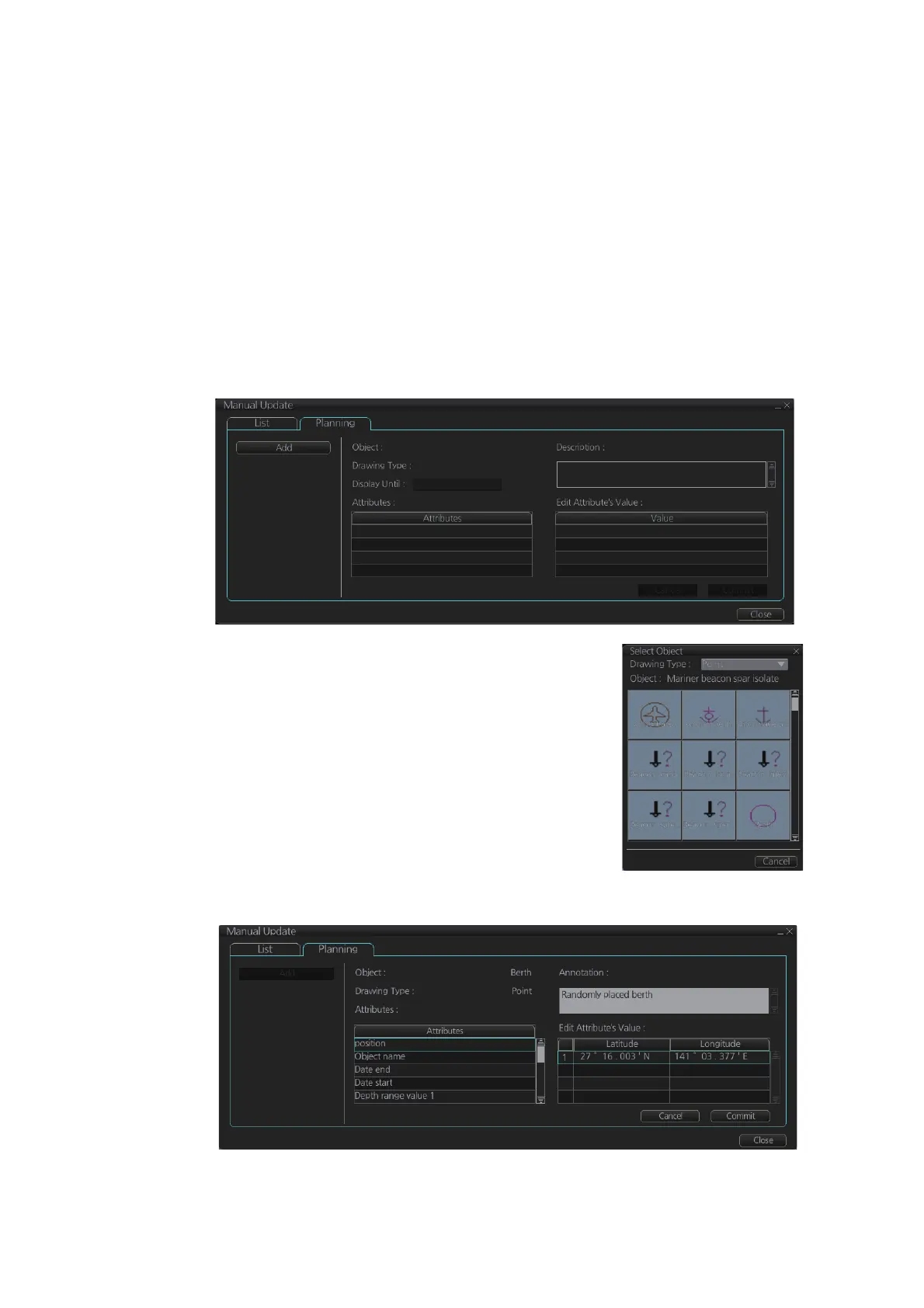

2. Click the [Manual Update] button on the InstantAccess bar™ to open the [Manual
Update] dialog box.
3. Click the [Planning] tab.
4. Click the [Add] button.
Note: This window can also be shown from the con-
text-sensitive menu. Right-click the display area then
select [Manual Update] and [Add New].
5. Use the [Drawing Type] pull-down list to select draw-
ing type: [Point], [Line] or [Area].
6. Click desired object.
7. Put the cursor on the location where to insert the
symbol then left click. The [Manual Update] dialog
box shows:
- [Object]
- [Drawing Type]
8. You can add a comment related to a manual update object in the [Annotation] box.
