1. OPERATIONAL OVERVIEW
1-5
1.2.2 Operator fitness
The system outputs the operator fitness signal when a key or button is pressed, the
trackball is moved or a rotary control is rotated.

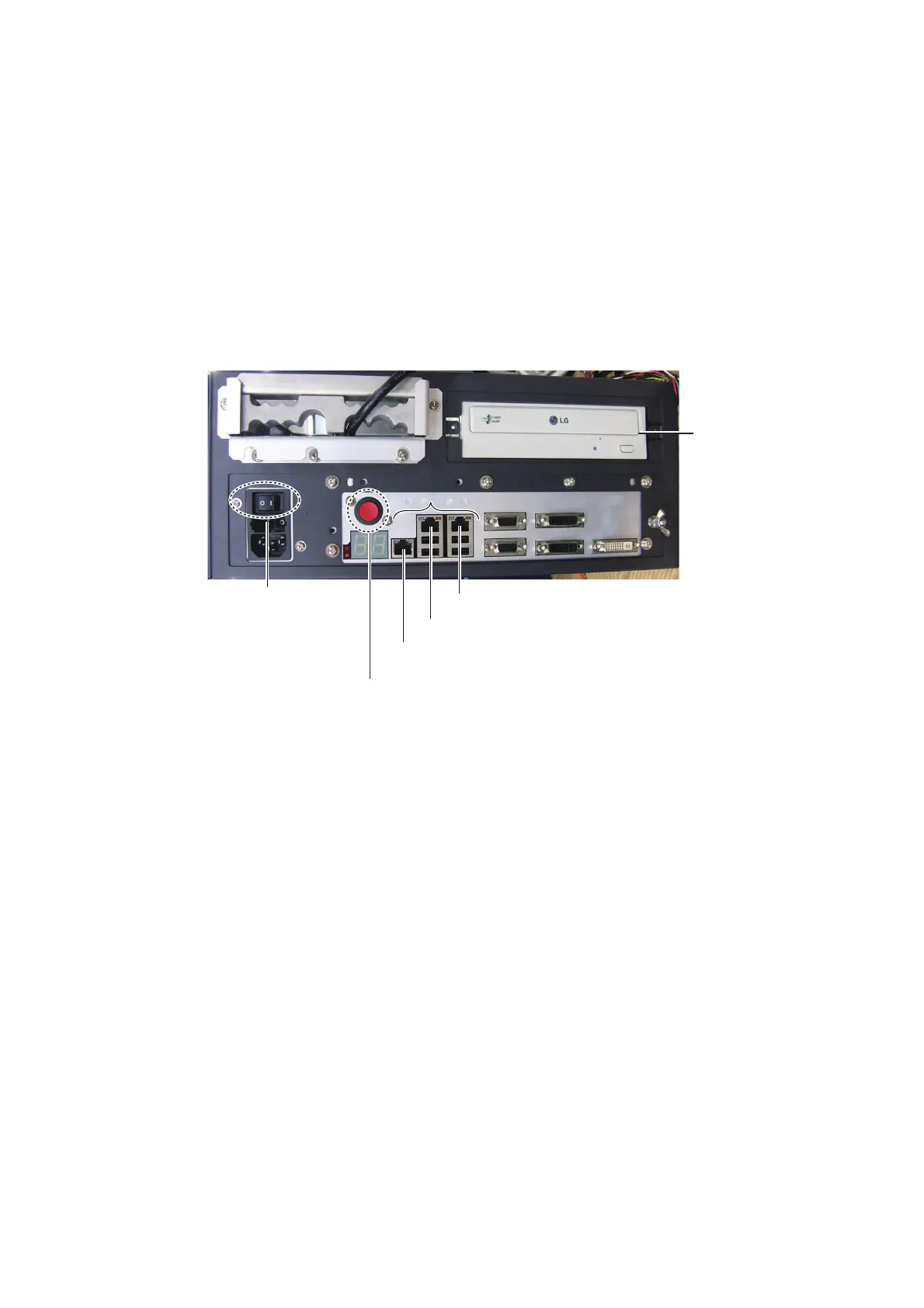

1.3 Processor Unit EC-3000
The Processor Unit is the heart of the chart system, and is mainly responsible for the
chart management, route planning and route navigation.
The Processor Unit has two power switches. The Mains switch controls the power
from the switchboard, and the Power switch controls the power to the system.
Notes on usage:
• Do not operate the system with a medium inserted in the DVD drive when its use is
not required, to prevent damage to the drive and medium. After use of a medium is
completed, remove the medium from the drive and store it in its case.
• To keep the system stable, restart the unit at least once every two weeks.
• Close the lid of the DVD drive when the drive is not in use.
• The DVD ROM provided with this equipment contains the chart radar program.
Store the DVD in a place where the temperature and humidity are moderate. The
recommended storage temperature is -10°C(14°F) to 40°C(104°F).
DVD
drive
LAN1 port (Gateway network)
LAN2 port (IEC61162-450 equipment)
LAN3 port (Radar)
RJ45 NetworkRJ45 Network
To Next Page
