2. RADAR, CHART RADAR OPERATION
2-52
2.35 SART
2.35.1 What is an SART?
A Search and Rescue Transponder (SART) may be triggered by any X-band (3 cm)
radar within a range of approximately 8 NM. Each radar pulse received causes it to
transmit a response which is swept repetitively across the complete radar frequency
band.
2.35.2 How to receive an SART
This radar is equipped with a feature that optimally sets up the radar for SART detec-
tion. This feature automatically detunes the radar receiver out of its best tuning condi-
tion. This erases or weakens all normal radar echoes, but the SART marks are not
erased because the SART response signal scans over all frequencies in the 9 GHz
band. When the radar approaches the SART in operation, the SART marks will en-
large to large arcs, blurring a large part of the screen.
1. Open the menu then select the [1 ECHO] menu.
2. Select [7 SART] (B type).
3. Select [ON].
4. Close the menu. The message "SART" appears in the message area when the
SART function is active.
When the SART is activated the radar controls are automatically set as follows.
Item
Setting at activation
of SART feature
Adjustable during
activation of SART
feature
Setting at deactivation
of SART feature
CONDITION Setting stored Yes Setting at deactivation
CUSTOMIZE
ECHO
Grayed out, setting
stored
No Return to active display
EAV OFF No Setting before activation
ES OFF No Setting before activation
GAIN Setting stored Yes Setting at deactivation
IR OFF No Setting before activation
LOW LEVEL
ECHO
Setting stored Yes Setting at deactivation

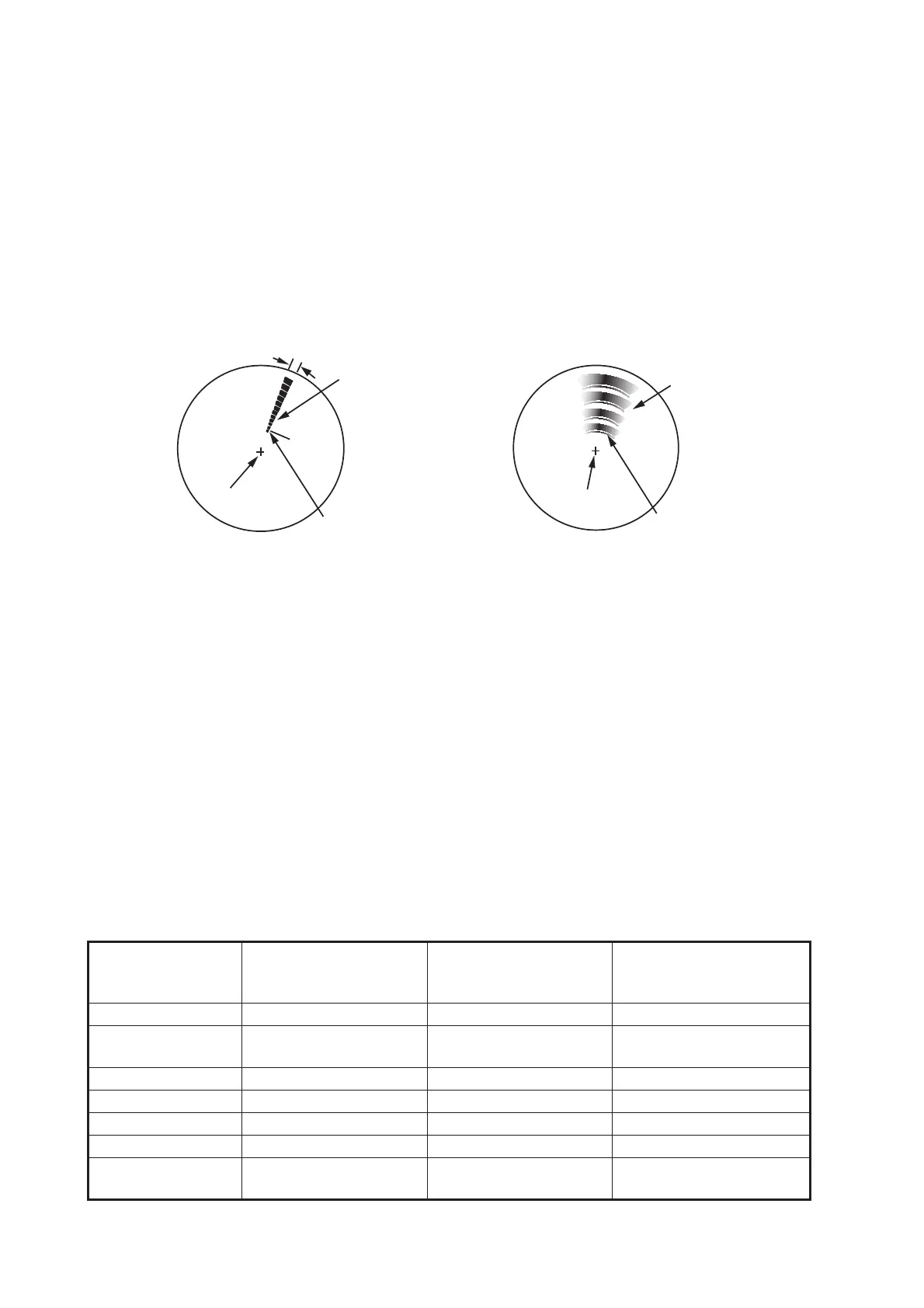

Radar antenna beamwidth
Screen A: When SART is distant
Screen B: When SART is close
Position of SART
24 NM
1.5 NM
Own ship positionOwn ship position
Echo from SART
(Lines of 12 dots
are displayed in
concentric arcs.)
Own ship positionOwn ship position
Position of SART
Echo from SART
(Lines of 12 dots
are displayed in
concentric arcs.)
To Next Page
