16.10 Depth Sensor

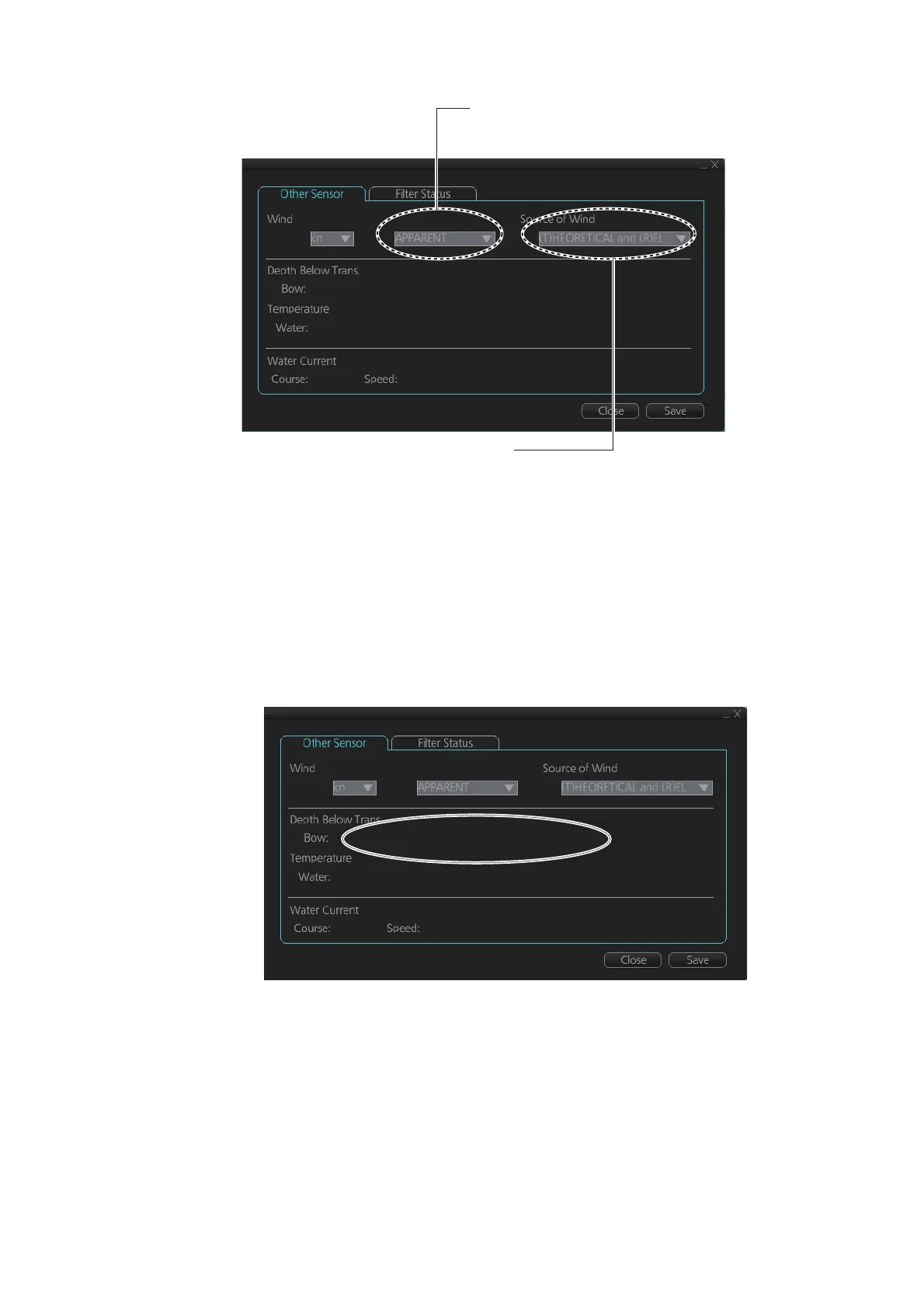

The depth output from a depth sensor (for example, echo sounder) is shown on the
[Other Sensor] page in the [Other Sensor Settings] menu.
The content of the [Other Sensor] page depends on sensors connected.
In this example there are three transducers (bow, mid and aft) installed.
The system displays depth value as depth below the transducer. If required, you can
get an alert when the measured depth is less than the "Echo Alarm Limit" setting at
the [UKC] page in the [Overlay/NAV Tools] box. The system generates the Alert 485
(ALF format: 10801) "Depth Limit".
130.7m Mid: 130.8m Aft: 130.8m
1.9 012.1°
20.1°C
037.3° 3.2kn
Wind reference
(APPARENT, NORTH, THEORETICAL)
Source of Wind dataä –
((T)HEORETICAL and (R)EL, (T)HEORETICAL, (T)RUE)
130.7m Mid: 130.8m Aft: 130.8m
1.9 012.1°
037.3° 3.2kn
To Next Page
