1. OPERATIONAL OVERVIEW
1-9
Manual brilliance adjustment with the trackball module
1. Click the [BRILL] button on the InstantAccess bar™ to show the brilliance adjust-
ment window.
2. For coarse adjustment, put the cursor on a location within the slider bar area
then push the left button. For fine adjustment, put the cursor on the end of the
slider bar and roll the trackball while holding down the left button.
3. Release the left button to confirm setting. The calibration state indication changes
to "UNCALIB".
4. Click the [CALIB] button to calibrate the brilliance. The calibration state indication
changes to "CALIB".
1.6.2 Control unit backlighting
How to adjust the brilliance manually with the control unit (RCU-025)
Push the PANEL key to adjust backlighting of the control unit.
How to adjust the brilliance manually on the menu (For Radar mode and
Chart radar mode)
1. Right-click the BRILL button on the InstantAccess bar™ then select [Brill Menu].
2. Adjust the backlighting on the [1 CONTROL PANEL] menu.
How to adjust the brilliance manually with the InstantAccess knob (For chart
mode)
1. Push the InstantAccess knob.
2. Rotate the knob to select the [BRILL] button then push the knob to show the bril-
liance adjustment window.
3. Put the cursor on the backlighting setting, and up and down arrows appear. Click
the arrows to adjust the backlighting.

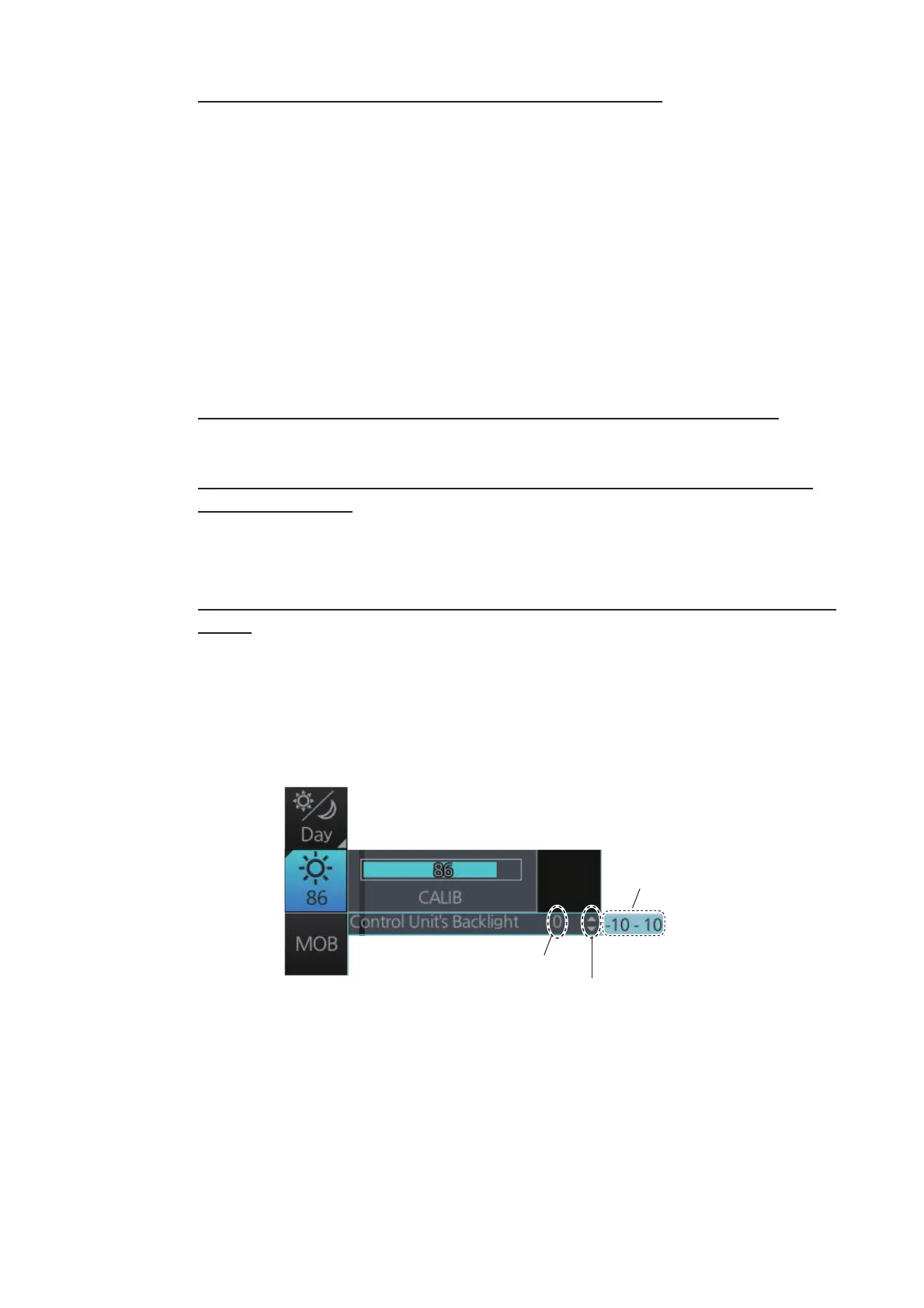

Click arrows to set backlighting.
Backlight
setting range
Current backlighting level
To Next Page
