24-1
24. CONNING DISPLAYS
24.1 Main Conning Display
The main conning display provides relevant sensor information data (including engine
data) from external equipment, on one display to facilitate safe and efficient monitor-
ing. The ECDIS accepts sensor information data in analog, serial and contact signal
formats.
Six sets of conning displays are available, and they are arranged at installation. Con-
sult with the installer of the equipment to decide the content and layout of each display.
To show the conning display, click the Operating Mode button on the Status bar to se-
lect [CONNING for RADAR].
Note: Analog data is shown in the lowest value of the setting range when the data is
not input.

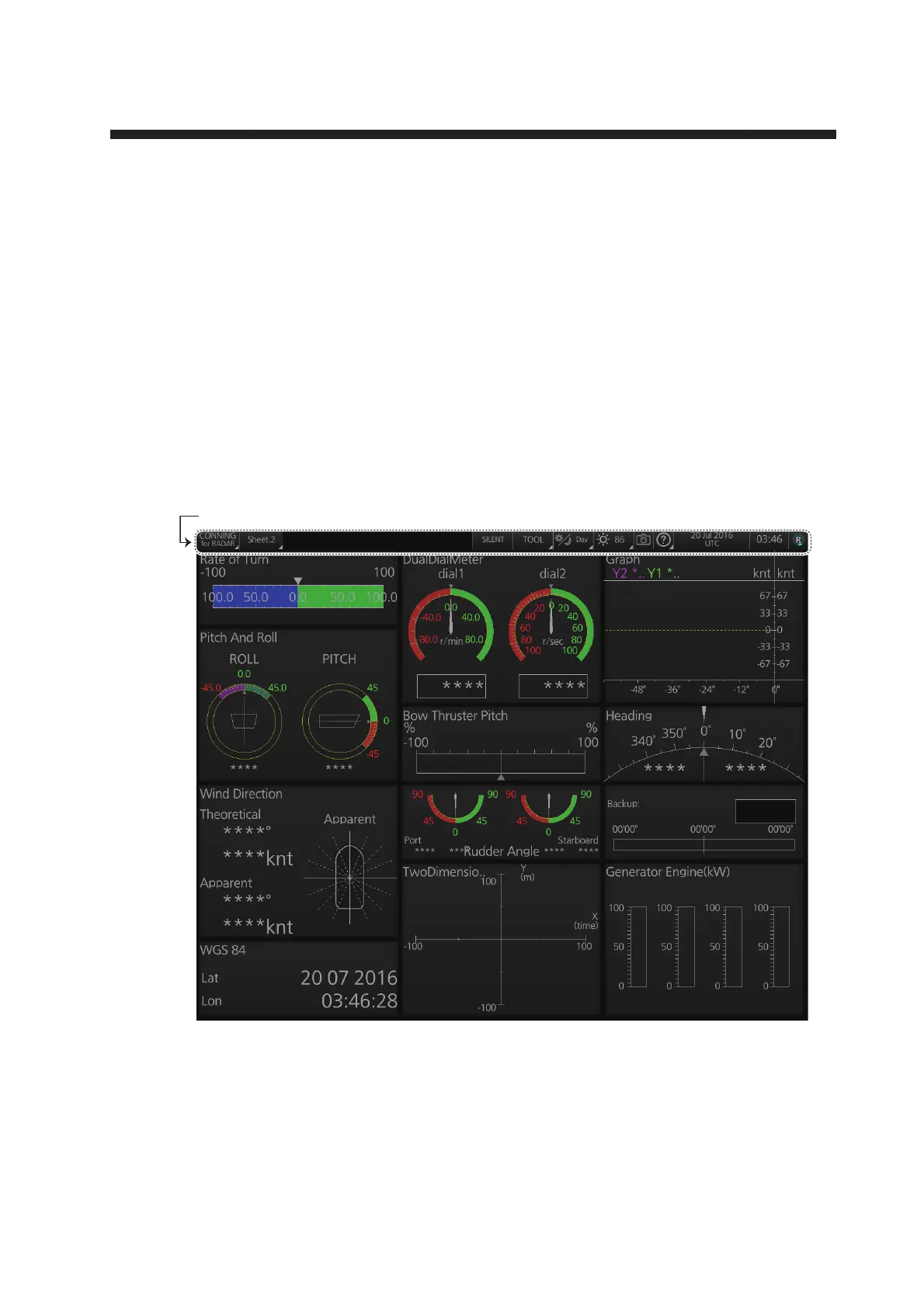

Conning display Status bar (see next page)
To Next Page
