12. ROUTES
12-14

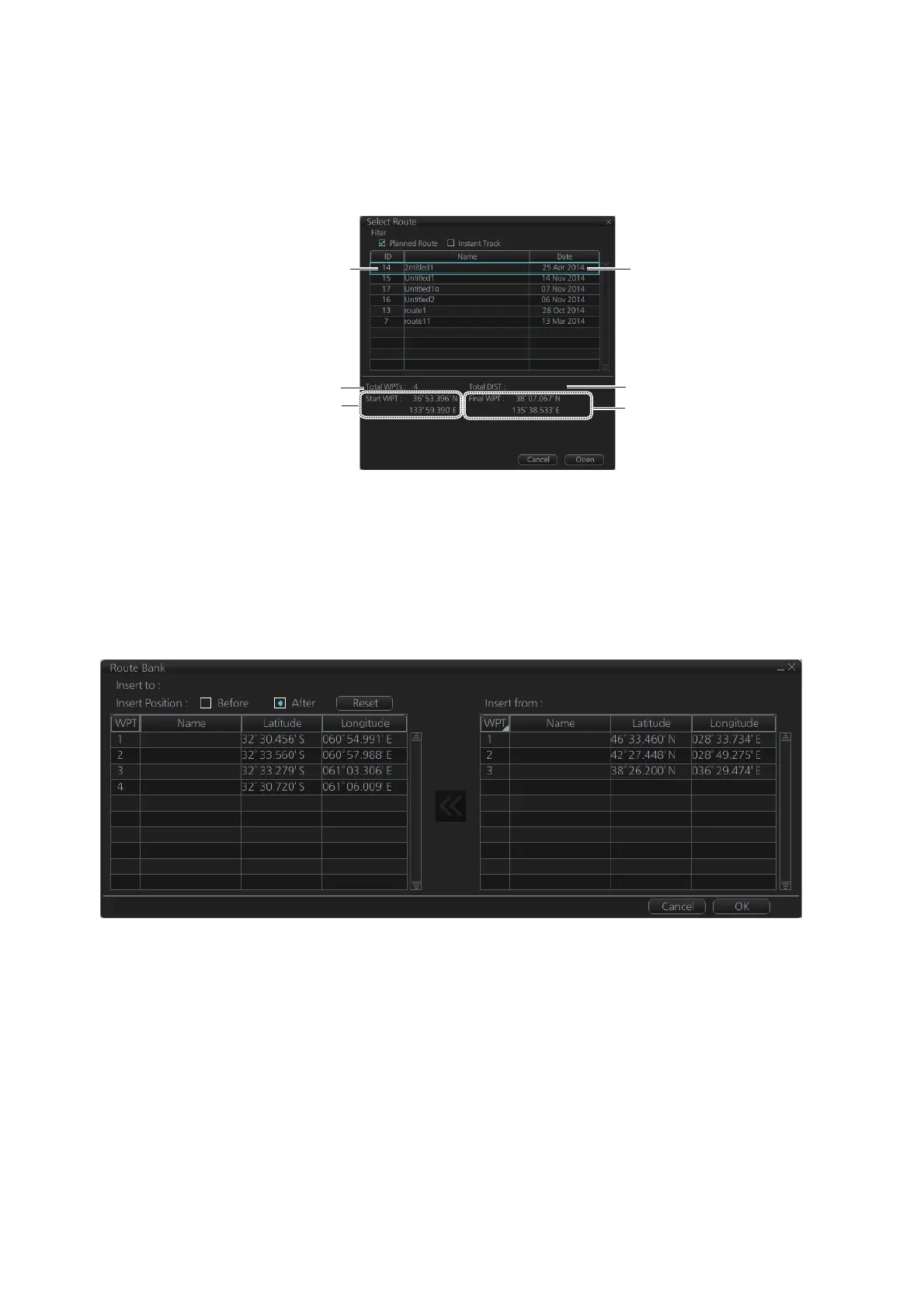

12.7 Route Bank
The route bank stores all the routes you have created. To show the route bank, in the
Voyage planning mode, select [Planning], [Plan] to show [Route Plan] dialog box, then
click the [Route Bank] button.
In the Voyage planning mode, the waypoints of a route can be inserted into the route
currently selected.
1. Show the dialog box shown above.
2. Select the route for which you want to copy its waypoint(s) in the active route. For
example, select Route2.
3. Click the [Open] button.
4. At [Insert Position], select where you want to insert waypoints into the active route,
[Before] or [After] the waypoint selected in the next step. The [Reset] button re-
stores the route to the original condition.
5. In the left-hand column set the cursor on the waypoint where to insert waypoints
from the inactive route.
6. At the right-hand column, select the waypoint(s) to add to the active route. A con-
text-sensitive menu is available by right-clicking [WPT] in the inactive route. The
options available are [Select All], [Deselect All] and [Reverse] (reverse the order
of the waypoints in the inactive route).
177.50NM
Route name
Date created or modified
Position of start waypoint
Total no. of waypoints
Total distance of route
Position of final waypoint
Route1
Route2
To Next Page
