2. RADAR, CHART RADAR OPERATION
2-31
2. Select [3 NAV TOOL] and [1 PI LINE] to show the [1 PI LINE] menu.
3. Select [5 RESET PI LINE] (reset currently displayed line) or [6 RESET ALL PI
LINE] as appropriate. The confirmation message "Attention: Do you wish to reset
PI No.x line setting?" or "Attention: Do you wish to reset all PI line settings?" ap-
pears. Click the ["OK"] button to reset the PI line(s)
4. Close the menu.
2.22.8 How to adjust PI line length
You can adjust the length of each PI line. This function is available when [2 SET ALL
PI LINE] is set to [1].
1. If not already displayed, display a PI line to adjust the length referring to
section 2.22.4.
2. Open the menu.
3. Select [3 NAV TOOL] and [1 PI LINE] to show the [PI LINE] menu.
4. Select [7 TRUNCATE].
5. Select [ON] in [PI 1 (or 2, 3, 4, 5, 6) TRUNCATE].
6. Set the length (setting range: 0.000 to 24.000 NM).
7. Close the menu.

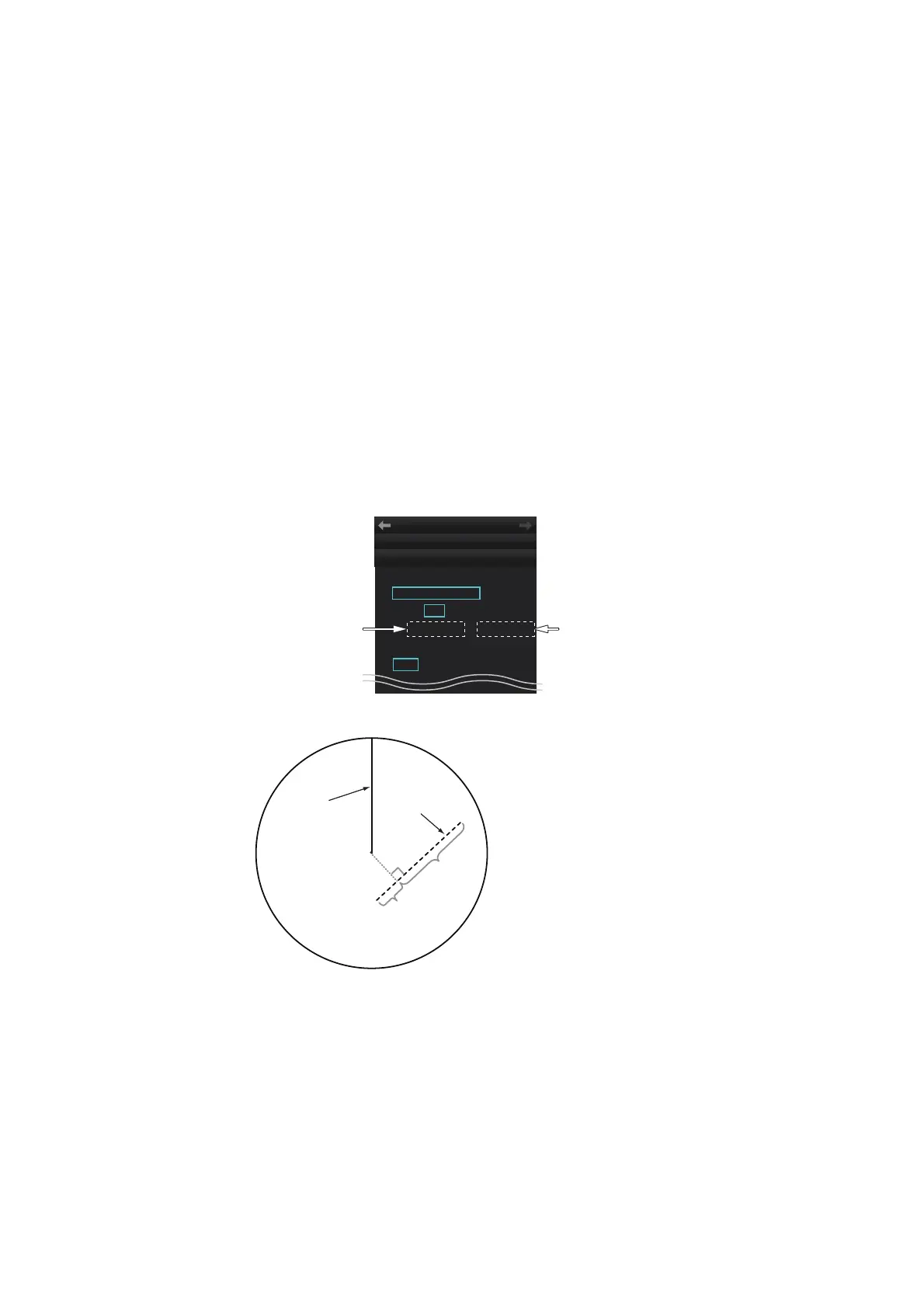

1 PI 1 TRUNCATE
OFF / ON
24.000NM 24.000NM
2 PI 2 TRUNCATE
OFF / ON
NAV TOOL
← TRUNCATE
MENU
PI LINE
Adjust the length
forward a PI line.
Adjust the length
backward a PI line.
Heading lineHeading line
Own ship positionOwn ship position
PI linePI line
Adjust the length
forward a PI line.
Adjust the length
forward a PI line.
Adjust the length
backward a PI line.
Adjust the length
backward a PI line.
