1. OPERATIONAL OVERVIEW
1-8
1.6 How to Adjust the Display Brilliance, Control
Unit Backlighting
The monitor brilliance setting is defined according to the color palette setting. Howev-
er, manual adjustment of the brilliance is also possible.
In the chart for radar mode, the backlighting for the control unit can be adjusted from
the monitor brilliance adjustment window.
Note 1: Use a serial cable for brilliance adjustment to make the connection between
the Processor Unit and the Control Unit.
Note 2: For how to adjust display brilliance of other monitor, see its operator’s manual.
Note 3: Improper brilliance may affect the visibility of information, especially on the
night display.
1.6.1 Manual brilliance adjustment
Manual brilliance adjustment with BRILL control on the ECDIS control unit
Operate the BRILL control to adjust brilliance. Turn it clockwise to increase the bril-
liance; counterclockwise to decrease the brilliance. Watch the brilliance level indica-
tion on the [BRILL] button (see the illustration below) to see the current brilliance level.
Manual brilliance adjustment from the InstantAccess barâ„¢
1. Push the InstantAccess knob.
2. Rotate the knob to select the [BRILL] button then push the knob to show the bril-
liance adjustment window.
3. Push the knob, rotate the knob to set the brilliance then push the knob to confirm
the setting. The calibration state indication changes to "UNCALIB".
4. Rotate the knob to select the [CALIB] button then push the knob to calibrate the
brilliance. The calibration state indication changes to "CALIB".

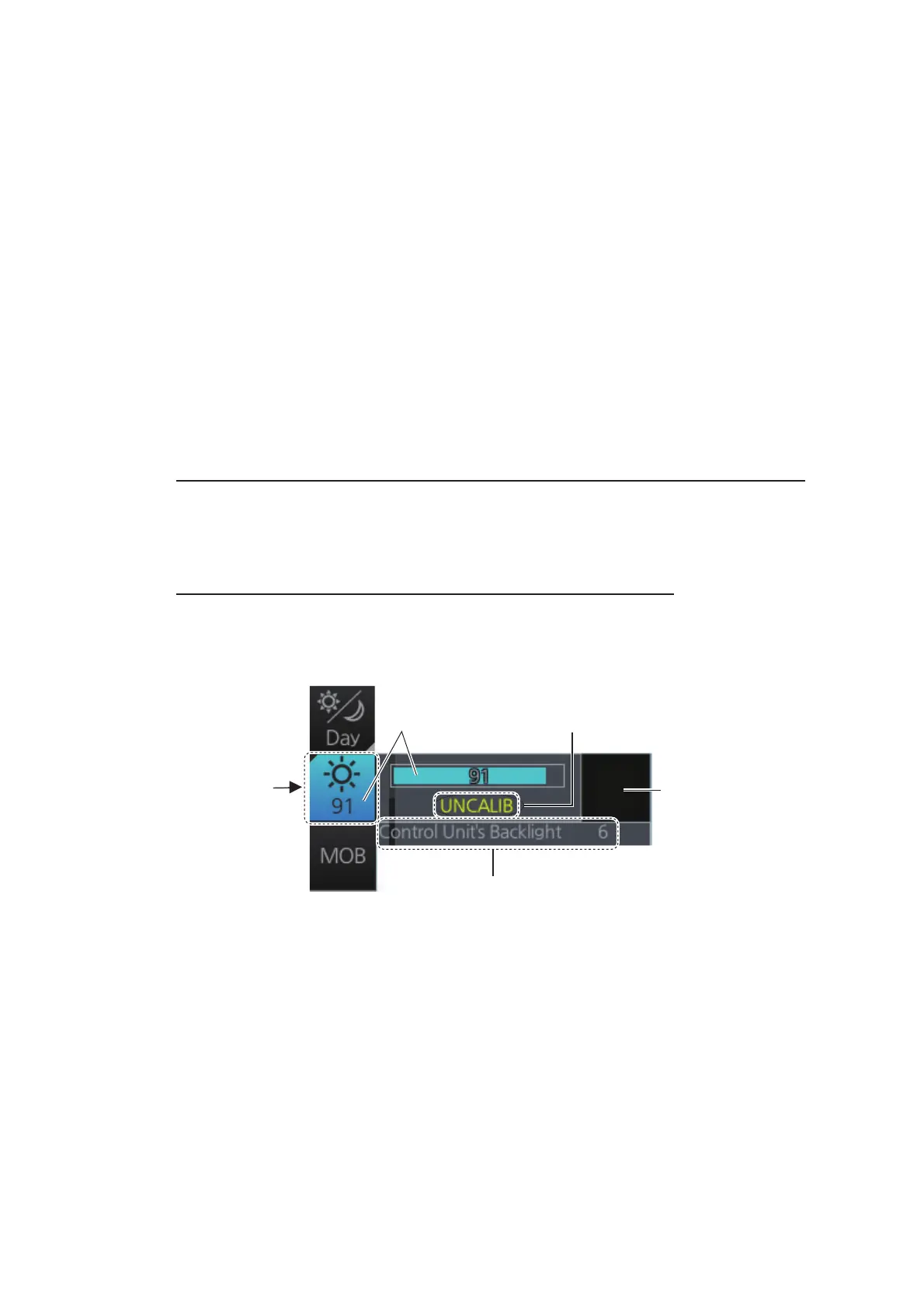

Current brilliance level
[BRILL]
button
Calibration state
(CALIB or UNCALIB)
[CALIB]
button
Control unit backlight adjustment
(Appears in chart for radar mode only.)
To Next Page
