16. NAVIGATION SENSORS
16-2
16.2 How to Select Navigation Sensors
The operator can select navigation sensors to use for navigation and view their current
values on the applicable page in the [System Sensor Setting] and [Local Sensor Set-
ting] menus. To access these menus, right-click the Sensor information, datum box
then click [Select Sensor] followed by [Setting].
The descriptions in this section show the sensor menus in the radar mode. The sensor
menus in the chart mode mirror those in the radar mode, although the layout is differ-
ent. Any change made in a sensor menu is reflected to the companion sensor menu,
to synchronize the data between the modes.
16.2.1 Sensors menu description

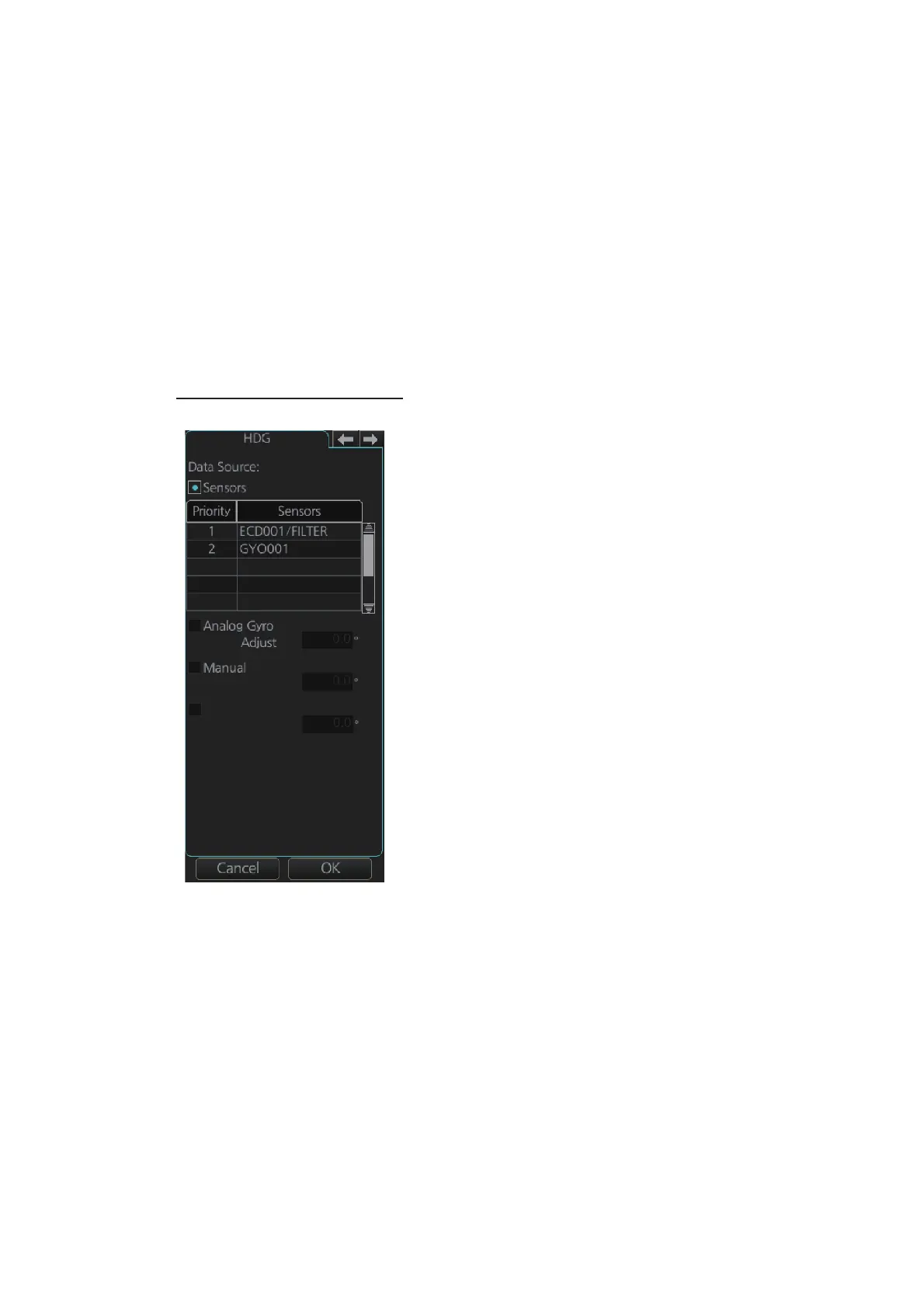

[HDG] page (Local Sensor)
[Sensors]: Select the heading sensor to use.
[Analog Gyro]: No use.
[Manual]: Set heading manually when there is no head-
ing sensor available. (Not shown on IMO type.)
[Gyro Correction]: Set correction manually for the head-
ing value. (Not available with the [System Sensor Set-
ting] menu.)
Gyro Correction
