6. CHART OVERVIEW
6-24
6.11 Split Screen
You can split the screen in two, horizontally or vertically, in the [CHART for RADAR]
mode, Voyage navigation display.
6.11.1 How to activate, deactivate the split screen

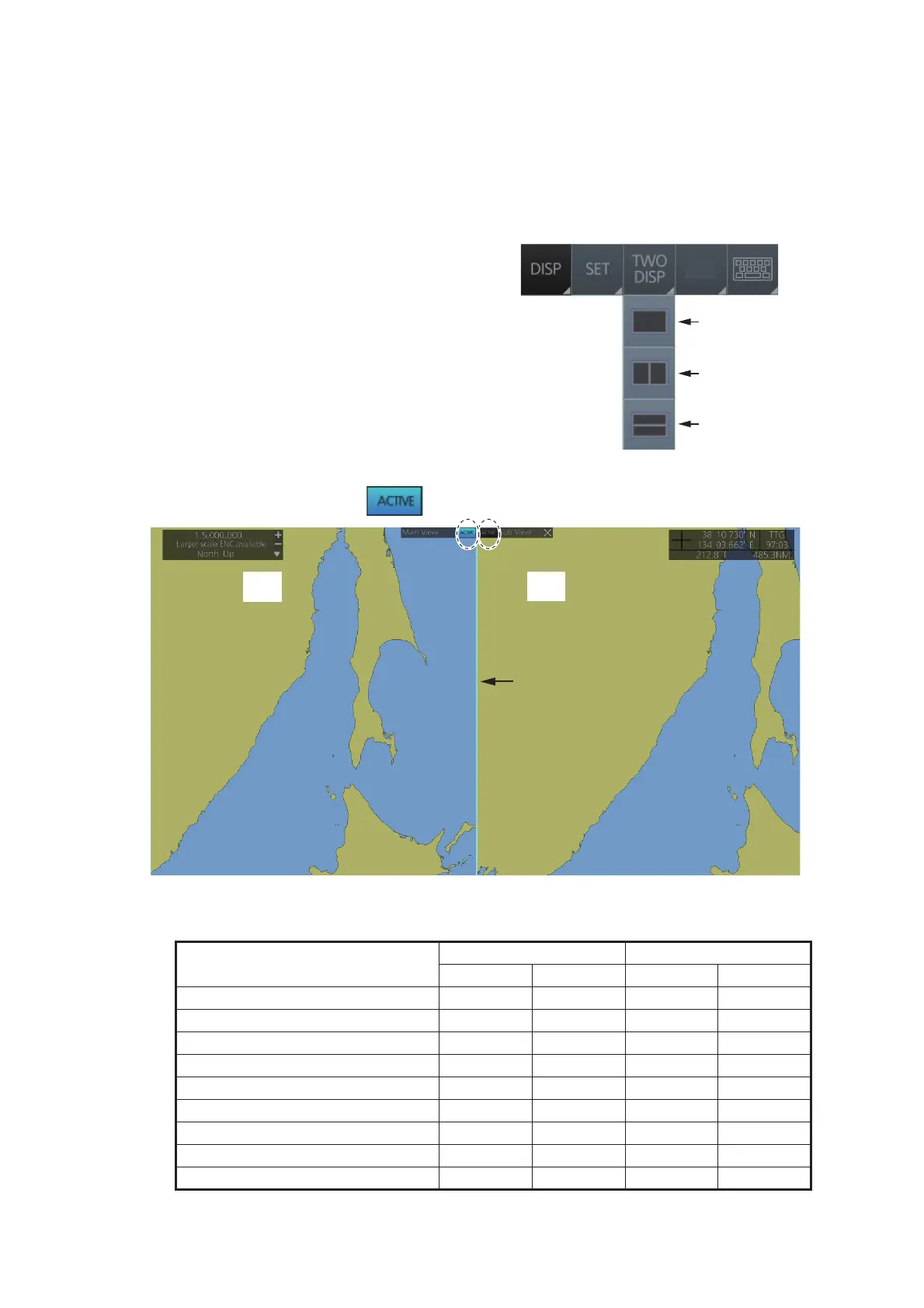

To activate the split screen or return to the
full screen, click the [DISP] and [TWO
DISP] buttons on the InstantAccess bar™
to show the choices for screen division.
Click the screen division desired.
The example below shows the vertical split
screen. The active display can be switched
by clicking an [ACTIVE] button at the top of
the display. The dividing line between the
main and sub views cannot be moved.
6.11.2 Function availability
Item (CHART for RADAR mode)
Viewable Operable
MainSubMainSub
AIS target Yes Yes Yes Yes
TT Yes Yes Yes Yes
EBL, VRM Yes Yes Yes Yes
Parallel index lines Yes Yes Yes Yes
Divider Yes Yes Yes No
Range rings Yes Yes Yes No
Anchor watch Yes Yes Yes No
Danger highlight Yes Yes Yes No
Chart display Yes Yes Yes No
Full screen
Vertical split
screen
Horizontal split
screen
NtoM
Click ACTIVE button to
switch active display.
Dividing line
MAIN
VIEW
SUB
VIEW
