Furuno FCR-2139S-BB User Manual

xx

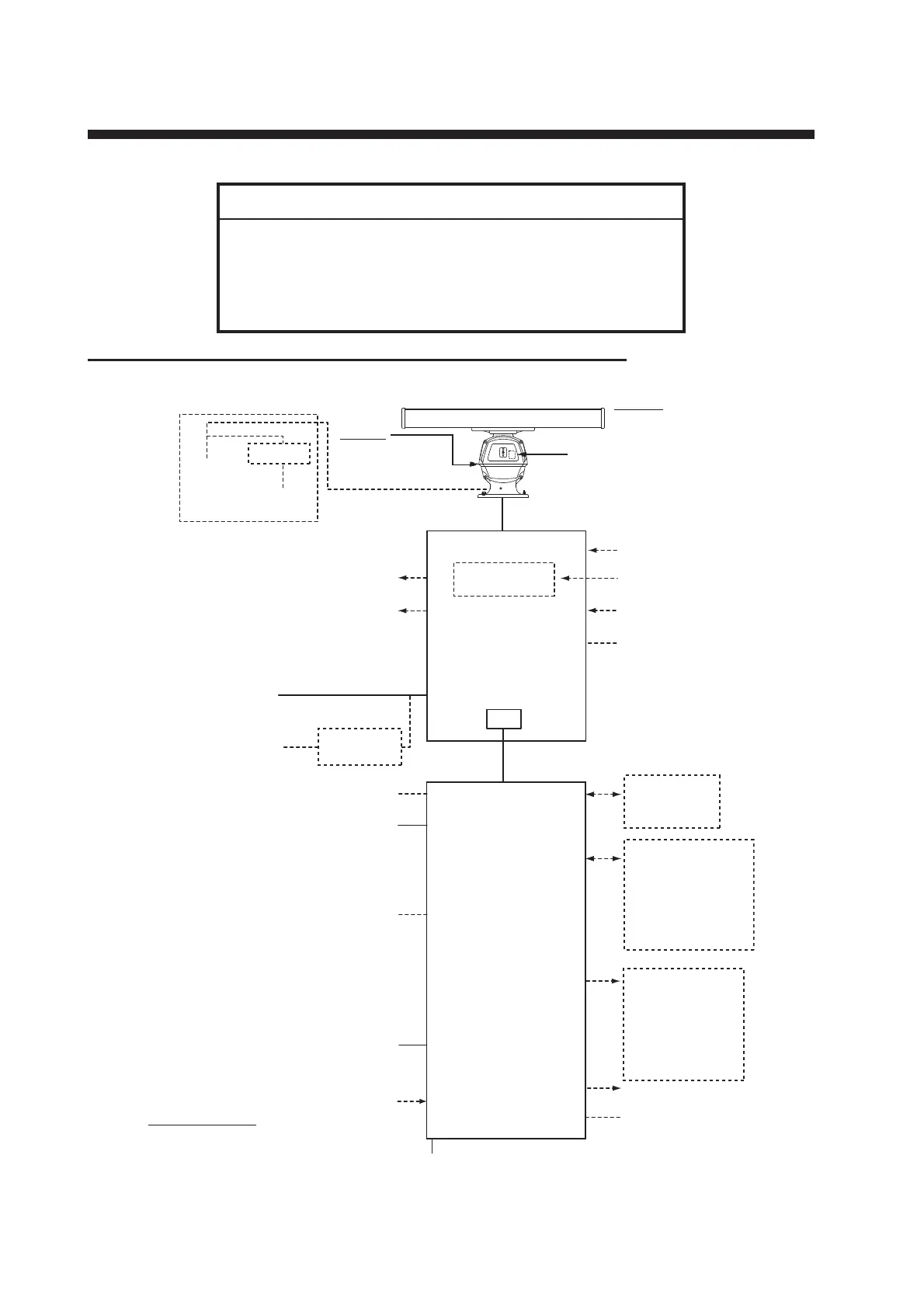

SYSTEM CONFIGURATION
FCR-2119-BB/FCR-2129-BB/FCR-2139S-BB/FCR-2819/FCR-2829
NOTICE
The radar(s) must be interconnected to the following type approved sensors:

EPFS meeting the requirements of the IMO resolution MSC.112(73).

Gyrocompass meeting the requirements of the IMO resolution A.424(XI).

SDME meeting the requirements of IMO resolution MSC.96(72).
The radar may be interconnected via HUB-3000 to other FURUNO processing
units having approved LAN ports.
ANTENNA UNIT
Performance Monitor
PM-31
Category of Units
Antenna Unit: Exposed to the weather
All other units: Protected from the weather
Radiator
XN-20AF (6 ft)
XN-24AF (8 ft)
DE-ICER
110/115/220/230 VAC
1ø, 50-60 Hz
110 VAC
1ø, 50-60 Hz
RPU-013
RADAR
PROCESSOR
UNIT
Sub Display 1
Sub Display 2
Gyro Converter
GC-10
Gyrocompass
A-D Converter
Heading Sensor
LAN
RU-3305
110-115/
220-230 VAC
1ø, 50-60 Hz
Transformer
RU-1803
440 VAC
1ø, 50-60 Hz
Brake Unit
BR-001/002
Chassis
RSB-096-078A
RSB-097-078A
RSB-096-079A
RSB-097-079A
EC-3000
PROCESSOR
UNIT
Serial 1, 2
IEC-61162-2
(Gyro
*1
, AIS)
Serial 3 - 8
IEC-61162-1
(EPFS
*2
(navigator),
SDME(speed log),
Echo sounder,
Wind, Alarm
*5
,
Navtex, etc.)
Digital Out 1 - 6
*6
1: System Fail
2: Power Fail
3: Normal Close 1
4: Normal Close 2
5: Normal Open 1
6: Normal Open 2
Dashed lines indicate
optional or local supply
equipment.
Sensor Adapter
*4
Radar Control
Unit RCU-025
OR
Trackball Control Unit
RCU-026
ECDIS Control Unit
RCU-024
OR
Radar Control
Unit RCU-025
OR
Trackball Control Unit
RCU-026
Monitor Unit
*3
FCR-21x9-BB series: MU-190 (option)
FCR-28x9 series: MU-231
Digital In (ACK IN)
VDR
Intelligent Hub
HUB-3000
100-115/220-230 VAC
1ø, 50-60 Hz
