11.3.2.3 Edit a Zone Information Panel
In addition to the zone number, a zone information panel also contains two items of
information from the list that follows:
• Zone Name
• Current Temperature Setpoint
• Actual Temperature
• Power Output
• Amperage
NOTE: Actual earth leakage is an option when ICC
3
cards are installed and the Display Earth
Leakage Reading is enabled on the System Setup screen.
To change the content displayed on a zone information panel, do the steps that follow:
1. Make sure that the Mold Picture View is in Edit mode.
2. On the Mold Picture View screen, touch the zone information panel to be changed, so it
is highlighted.
3. Touch the Change View Settings button. Refer to Figure 11-4.
The Change View Settings dialog window shows. Refer to Figure 11-6.

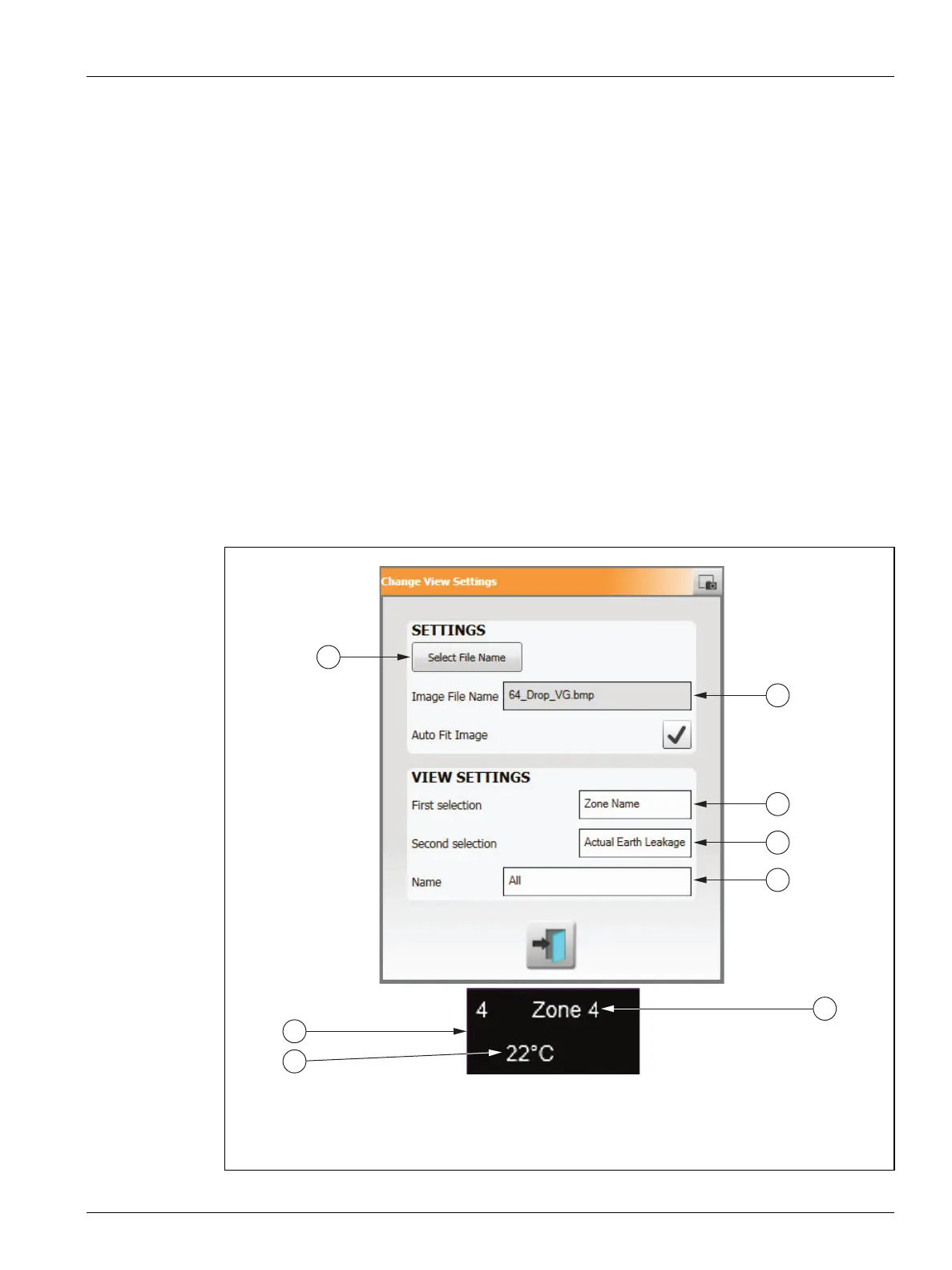

Figure 11-6 Edit Zone Information Panel
1. Select File Name Button 2. Image File Name Field 3. First Selection Field 4. Second
Selection Field 5. Views Button Name 6. Zone Information Panel
1
1
2
3
4
5
6
4
3
