15.3 Intelligent Control Cards
There are two series of intelligent control cards (ICC)s that the Matrix5 is designed to work
with. These are the X-Series (ICC
2
) and H-Series intelligent control cards (ICC
3
). Refer to
Figure 15-7 and Figure 15-8. The X-Series card can be identified by the large square blue or
brown transformer mounted near the heatsink and is the older generation of Altanium cards.
The H-Series card can be identified by the yellow numbered label that indicates how many
zones it supports. H-Series cards are the newest generation of Altanium cards.
Although they look similar, the X-Series and H-Series cards are not compatible with each
other and must only be used in systems of the same card types.

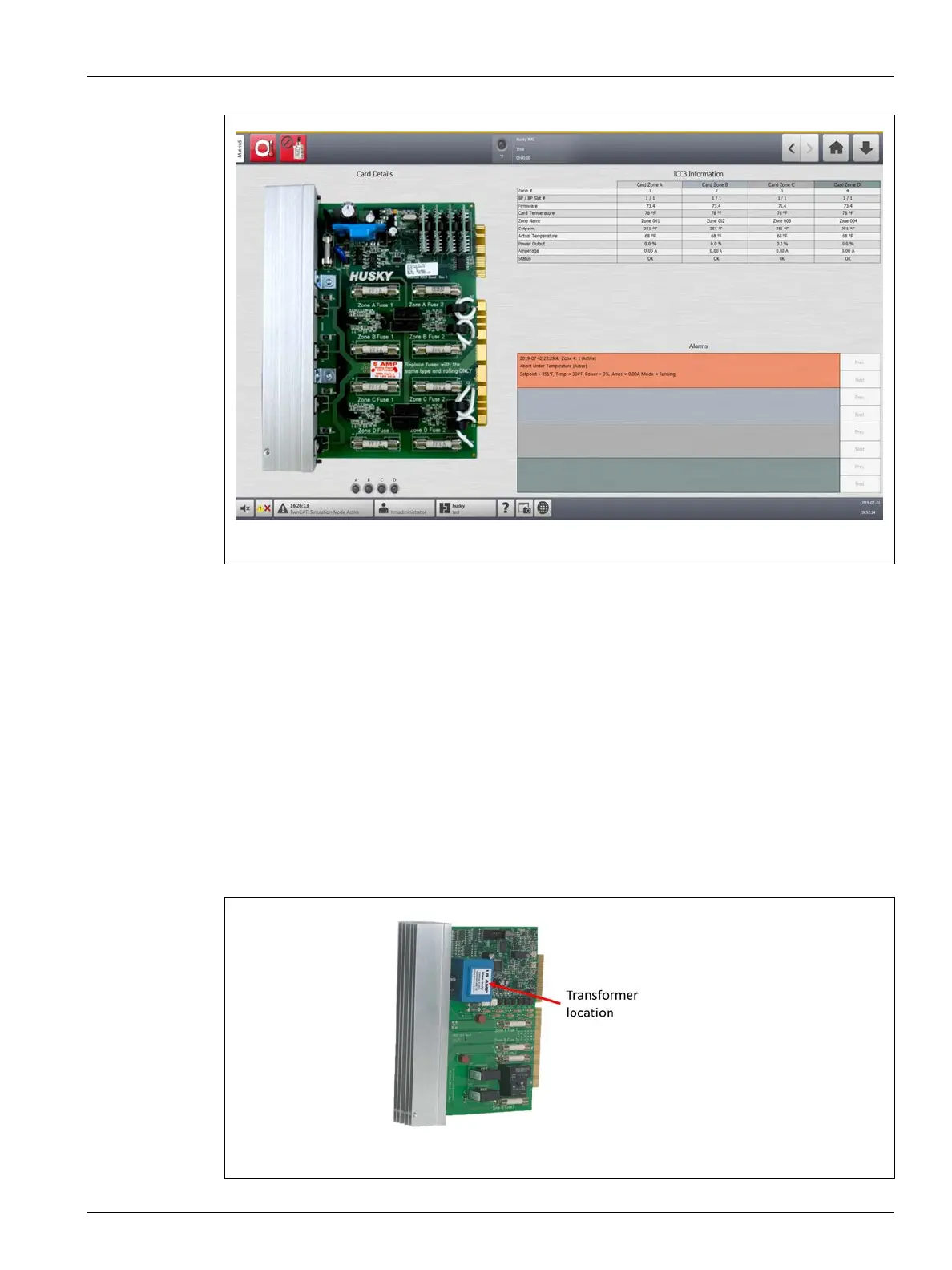

Figure 15-6 Card Layout Information Example
Figure 15-7 X-Series Intelligent Control Card
